Datasheet NXH006P120MNF2PTG (ON Semiconductor) - 6
| 制造商 | ON Semiconductor |
| 描述 | F2HALFBR Module |
| 页数 / 页 | 10 / 6 — NXH006P120MNF2PTG. TYPICAL CHARACTERISTICS. Figure 8. Capacitance vs. … |
| 修订版 | P3 |
| 文件格式/大小 | PDF / 1.8 Mb |
| 文件语言 | 英语 |
NXH006P120MNF2PTG. TYPICAL CHARACTERISTICS. Figure 8. Capacitance vs. Drain−to−Source Voltage
该数据表的模型线
NXH006P120MNF2
文件文字版本
NXH006P120MNF2PTG TYPICAL CHARACTERISTICS
(25°C unless otherwise noted)

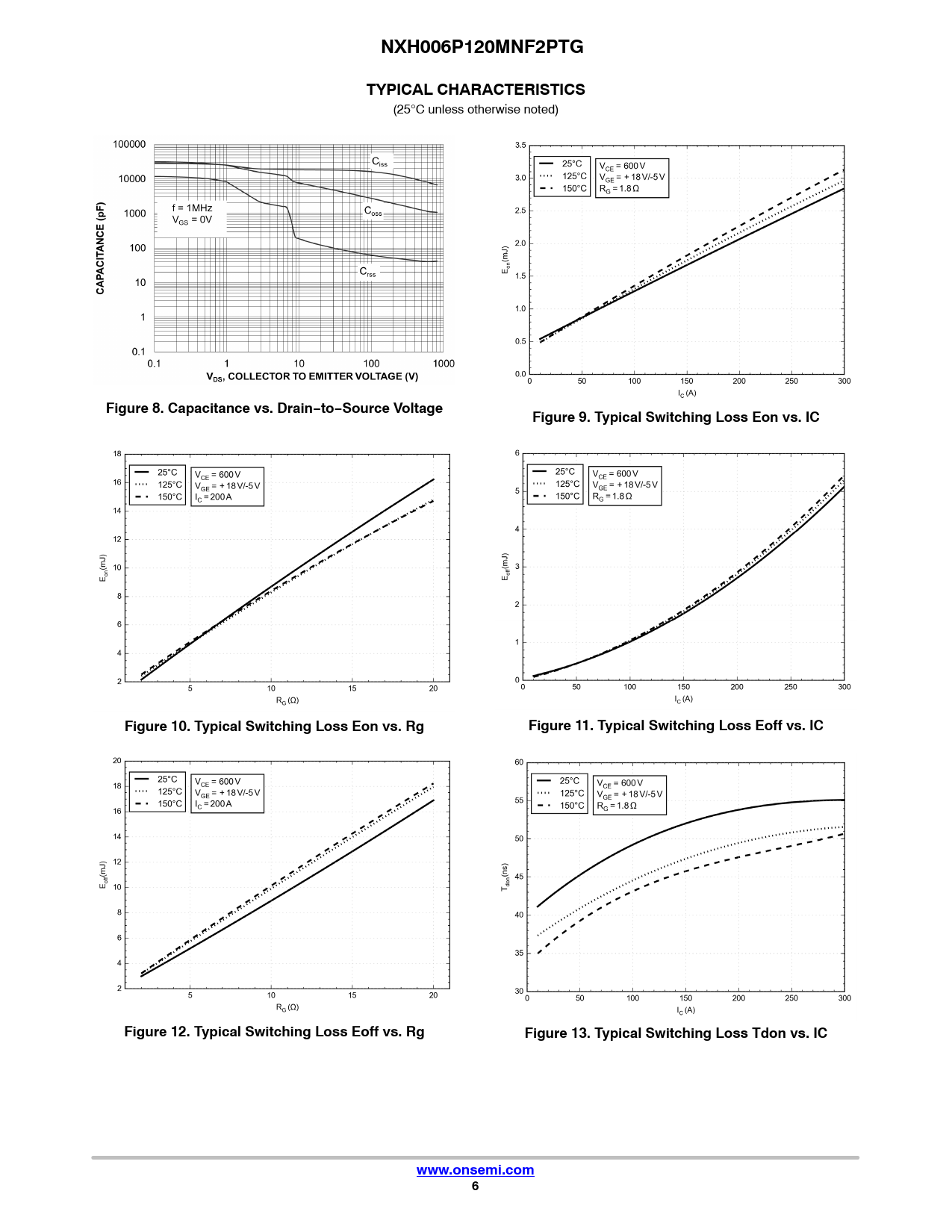

Figure 8. Capacitance vs. Drain−to−Source Voltage Figure 9. Typical Switching Loss Eon vs. IC Figure 10. Typical Switching Loss Eon vs. Rg Figure 11. Typical Switching Loss Eoff vs. IC Figure 12. Typical Switching Loss Eoff vs. Rg Figure 13. Typical Switching Loss Tdon vs. IC www.onsemi.com 6
(25°C unless otherwise noted)
Figure 8. Capacitance vs. Drain−to−Source Voltage Figure 9. Typical Switching Loss Eon vs. IC Figure 10. Typical Switching Loss Eon vs. Rg Figure 11. Typical Switching Loss Eoff vs. IC Figure 12. Typical Switching Loss Eoff vs. Rg Figure 13. Typical Switching Loss Tdon vs. IC www.onsemi.com 6
