5 Receiver Characteristics. Table 5-1. Receiver Characteristics. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNIT. General specifications
该数据表的模型线
文件文字版本
RDA Microelectronics, Inc. RDA5807NP FM Tuner V1.2

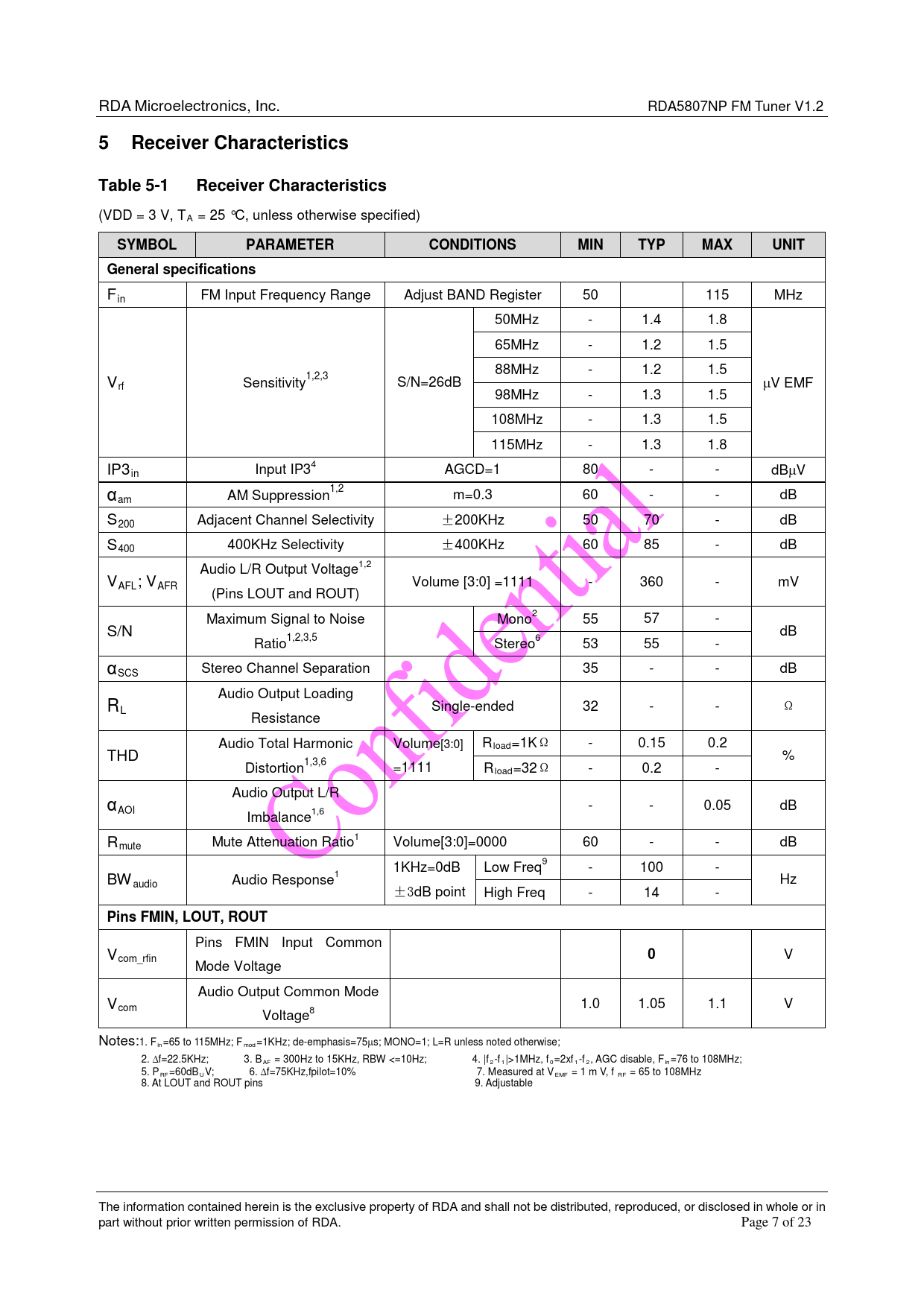

5 Receiver Characteristics Table 5-1 Receiver Characteristics
(VDD = 3 V, TA = 25 °C, unless otherwise specified)
SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT General specifications
F FM Input Frequency Range in Adjust BAND Register 50 115 MHz 50MHz - 1.4 1.8 65MHz - 1.2 1.5 88MHz - 1.2 1.5 V 1,2,3 µ rf Sensitivity S/N=26dB V EMF 98MHz - 1.3 1.5 108MHz - 1.3 1.5 115MHz - 1.3 1.8 IP3 Input IP34 in AGCD=1 80 - - dBµV α 1,2 AM Suppression 60 - - dB am m=0.3 S Adjacent Channel Selectivity 200 ±200KHz 50 70 - dB S 400KHz Selectivity ± 400 400KHz 60 85 - dB Audio L/R Output Voltage1,2 VAFL; VAFR Volume [3:0] =1111 - 360 - mV (Pins LOUT and ROUT) Maximum Signal to Noise Mono2 55 57 - S/N dB 1,2,3,5 Ratio Stereo6 53 55 - α Stereo Channel Separation SCS 35 - - dB Audio Output Loading RL Single-ended 32 - - Ω Resistance Audio Total Harmonic Volume[3:0] Rload=1KΩ - 0.15 0.2 THD % 1,3,6 Distortion =1111 Rload=32Ω - 0.2 - α Audio Output L/R - - 0.05 dB AOI Imbalance1,6 R Mute Attenuation Ratio1 mute Volume[3:0]=0000 60 - - dB 1KHz=0dB Low Freq9 - 100 - BW Audio Response1 audio Hz ±3dB point High Freq - 14 -
