数据表Datasheet L200 (STMicroelectronics)

Datasheet L200 (STMicroelectronics) - 7

制造商STMicroelectronics
描述Adjustable Voltage and Current Regulator
页数 / 页12 / 7 — L200. Figure 17. Load Transient Reponse. Figure 18. Current Limit Sense …
文件格式/大小PDF / 254 Kb
文件语言英语

L200. Figure 17. Load Transient Reponse. Figure 18. Current Limit Sense Voltage vs. Junction Temperature

L200 Figure 17 Load Transient Reponse Figure 18 Current Limit Sense Voltage vs Junction Temperature

该数据表的模型线

L200

文件文字版本

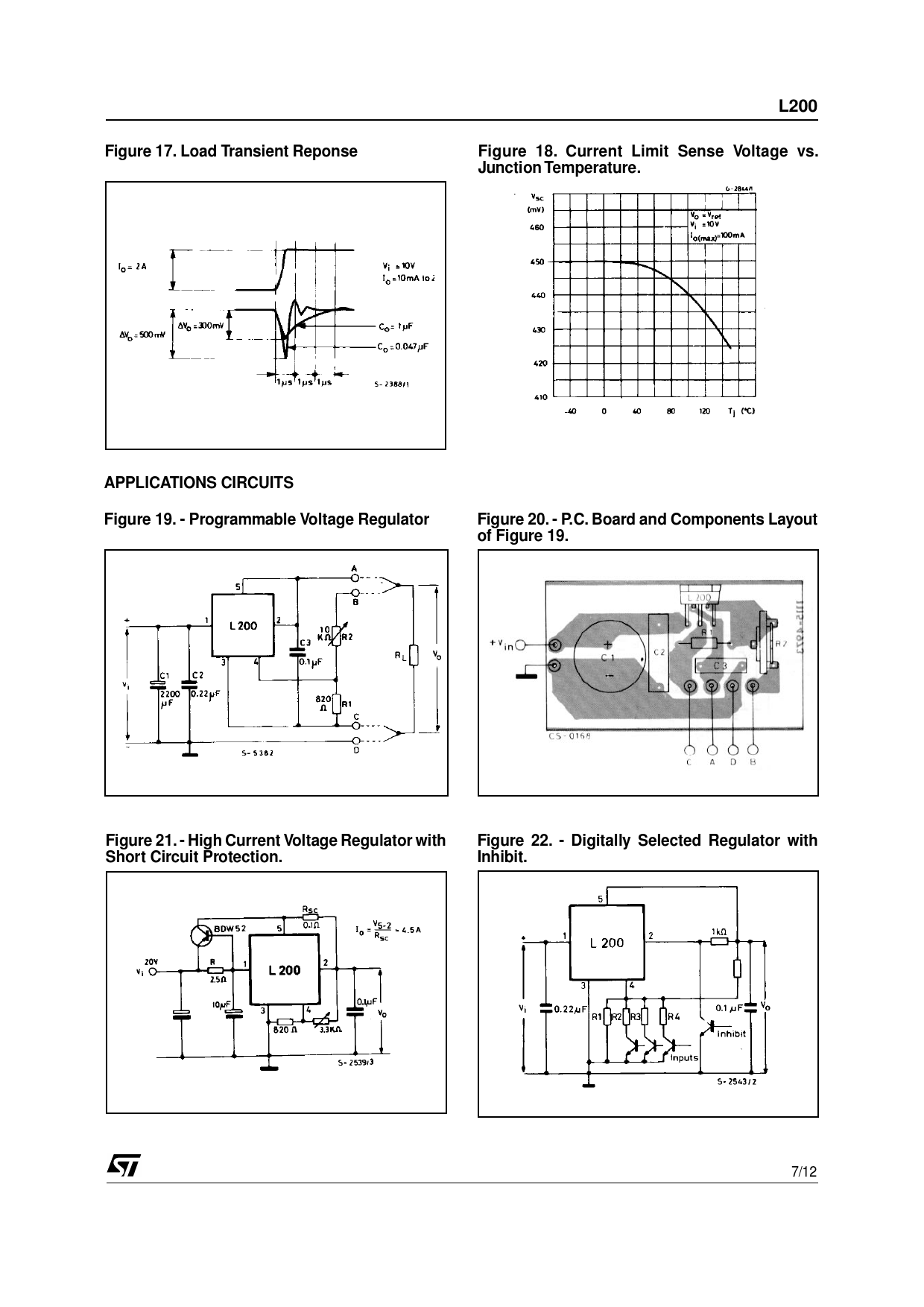

L200 Figure 17. Load Transient Reponse Figure 18. Current Limit Sense Voltage vs. Junction Temperature. APPLICATIONS CIRCUITS Figure 19. - Programmable Voltage Regulator Figure 20. - P.C. Board and Components Layout of Figure 19. Figure 21. - High Current Voltage Regulator with Figure 22. - Digitally Selected Regulator with Short Circuit Protection. Inhibit.
7/12
