Datasheet L165 (STMicroelectronics) - 7
| 制造商 | STMicroelectronics |
| 描述 | 3A Power Operational Amplifier |
| 页数 / 页 | 9 / 7 — L165. Figure 13. Split power supply |
| 文件格式/大小 | PDF / 145 Kb |
| 文件语言 | 英语 |
L165. Figure 13. Split power supply
该数据表的模型线
文件文字版本

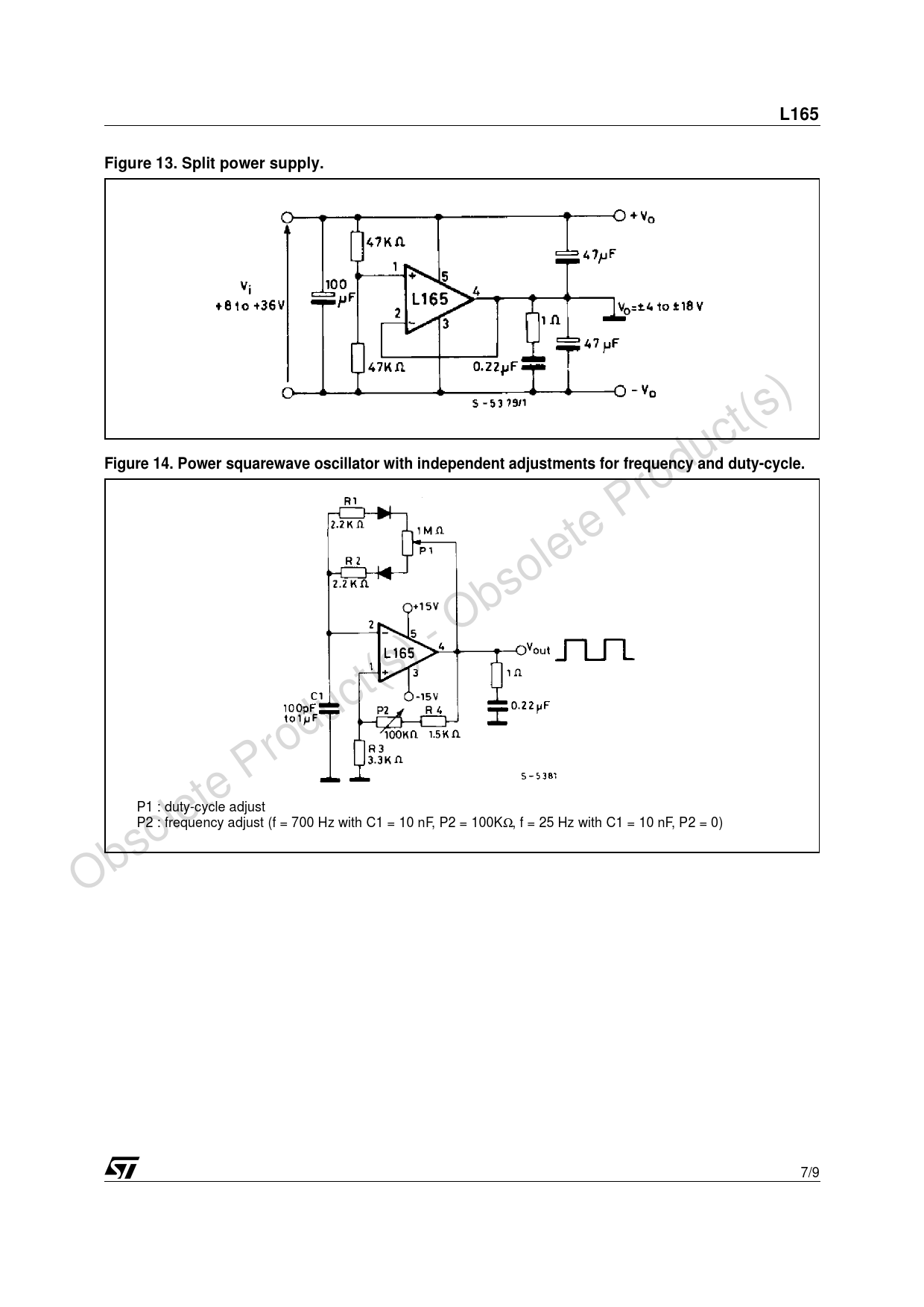

L165 Figure 13. Split power supply. Figure 14. Power squarewave oscillator with independent adjustments for frequency and duty-cycle.
P1 : duty-cycle adjust P2 : frequency adjust (f = 700 Hz with C1 = 10 nF, P2 = 100KΩ, f = 25 Hz with C1 = 10 nF, P2 = 0) Obsolete Product(s) - Obsolete Product(s) 7/9
P1 : duty-cycle adjust P2 : frequency adjust (f = 700 Hz with C1 = 10 nF, P2 = 100KΩ, f = 25 Hz with C1 = 10 nF, P2 = 0) Obsolete Product(s) - Obsolete Product(s) 7/9
