Datasheet L165 (STMicroelectronics) - 8
| 制造商 | STMicroelectronics |
| 描述 | 3A Power Operational Amplifier |
| 页数 / 页 | 9 / 8 — L165. inch. DIM. MIN. TYP. MAX. OUTLINE AND. MECHANICAL DATA. Weight:. … |
| 文件格式/大小 | PDF / 145 Kb |
| 文件语言 | 英语 |

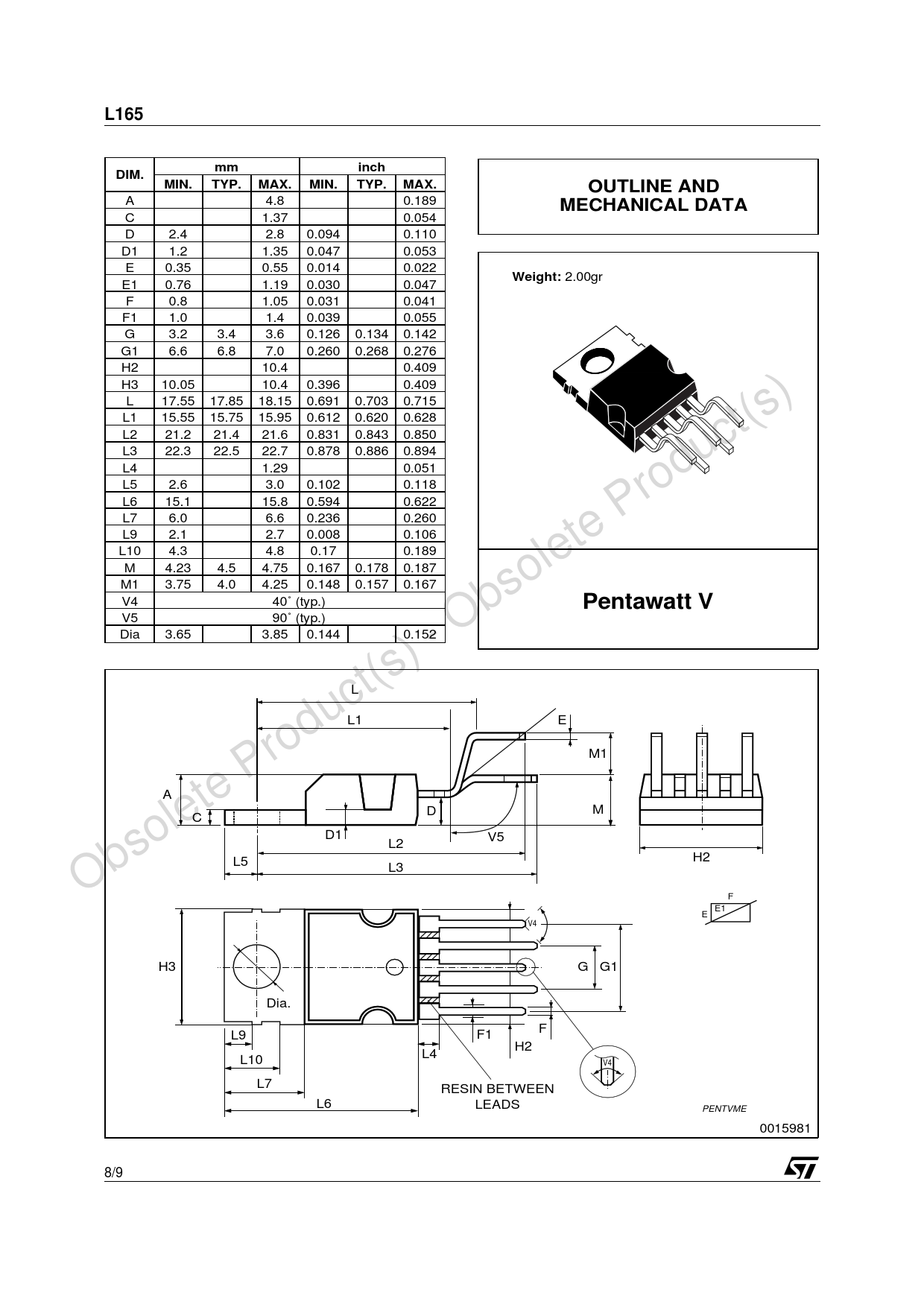

L165. inch. DIM. MIN. TYP. MAX. OUTLINE AND. MECHANICAL DATA. Weight:. Pentawatt V
该数据表的模型线
文件文字版本
L165 mm inch DIM. MIN. TYP. MAX. MIN. TYP. MAX. OUTLINE AND
A 4.8 0.189
MECHANICAL DATA
C 1.37 0.054 D 2.4 2.8 0.094 0.110 D1 1.2 1.35 0.047 0.053 E 0.35 0.55 0.014 0.022
Weight:
2.00gr E1 0.76 1.19 0.030 0.047 F 0.8 1.05 0.031 0.041 F1 1.0 1.4 0.039 0.055 G 3.2 3.4 3.6 0.126 0.134 0.142 G1 6.6 6.8 7.0 0.260 0.268 0.276 H2 10.4 0.409 H3 10.05 10.4 0.396 0.409 L 17.55 17.85 18.15 0.691 0.703 0.715 L1 15.55 15.75 15.95 0.612 0.620 0.628 L2 21.2 21.4 21.6 0.831 0.843 0.850 L3 22.3 22.5 22.7 0.878 0.886 0.894 L4 1.29 0.051 L5 2.6 3.0 0.102 0.118 L6 15.1 15.8 0.594 0.622 L7 6.0 6.6 0.236 0.260 L9 2.1 2.7 0.008 0.106 L10 4.3 4.8 0.17 0.189 M 4.23 4.5 4.75 0.167 0.178 0.187 M1 3.75 4.0 4.25 0.148 0.157 0.167 V4 40˚ (typ.)
Pentawatt V
V5 90˚ (typ.) Dia 3.65 3.85 0.144 0.152 L L1 E M1 A D M C D1 V5 L2 L5 H2 L3 F E1 E V4 Obsolete Product(s) - Obsolete Product(s) H3 G G1 Dia. F L9 F1 H2 L4 L10 V4 L7 RESIN BETWEEN L6 LEADS PENTVME 0015981 8/9
