Datasheet ZHCS400 (Diodes) - 5
| 制造商 | Diodes |
| 描述 | 40V Surface Mount Schottky Barrier Diode |
| 页数 / 页 | 6 / 5 — ZHCS400. Package Outline Dimensions. SOD323. Dim Min Max. All Dimensions … |
| 文件格式/大小 | PDF / 164 Kb |
| 文件语言 | 英语 |

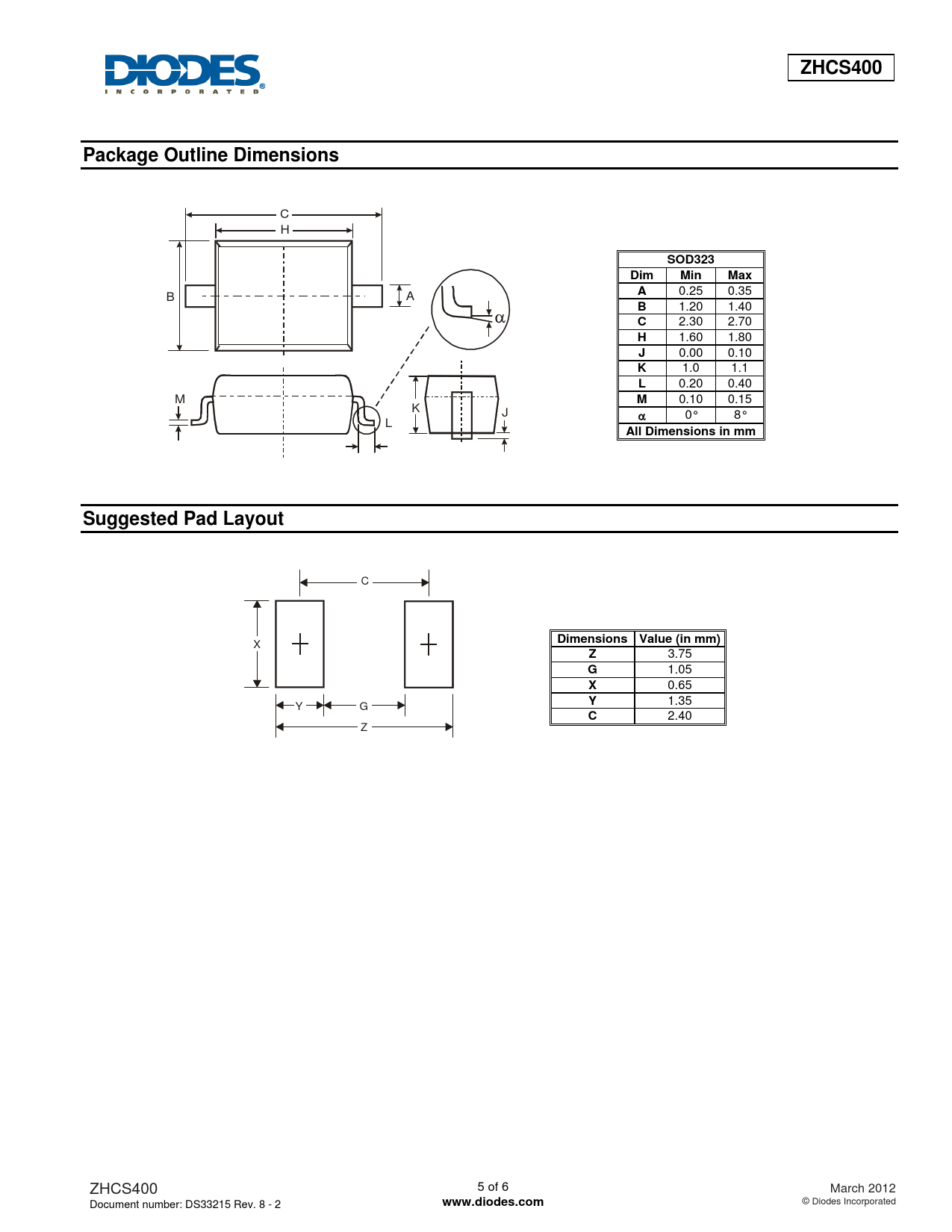

ZHCS400. Package Outline Dimensions. SOD323. Dim Min Max. All Dimensions in mm. Suggested Pad Layout. Dimensions. Value (in mm)
该数据表的模型线
文件文字版本
ZHCS400 Package Outline Dimensions
C H
SOD323 Dim Min Max A
0.25 0.35 B A
B
1.20 1.40
C
2.30 2.70
H
1.60 1.80
J
0.00 0.10
K
1.0 1.1
L
0.20 0.40 M
M
0.10 0.15 K J α 0° 8° L
All Dimensions in mm Suggested Pad Layout
C
Dimensions Value (in mm)
X
Z
3.75
G
1.05
X
0.65
Y
1.35 Y G
C
2.40 Z ZHCS400 5 of 6 March 2012 Document number: DS33215 Rev. 8 - 2
