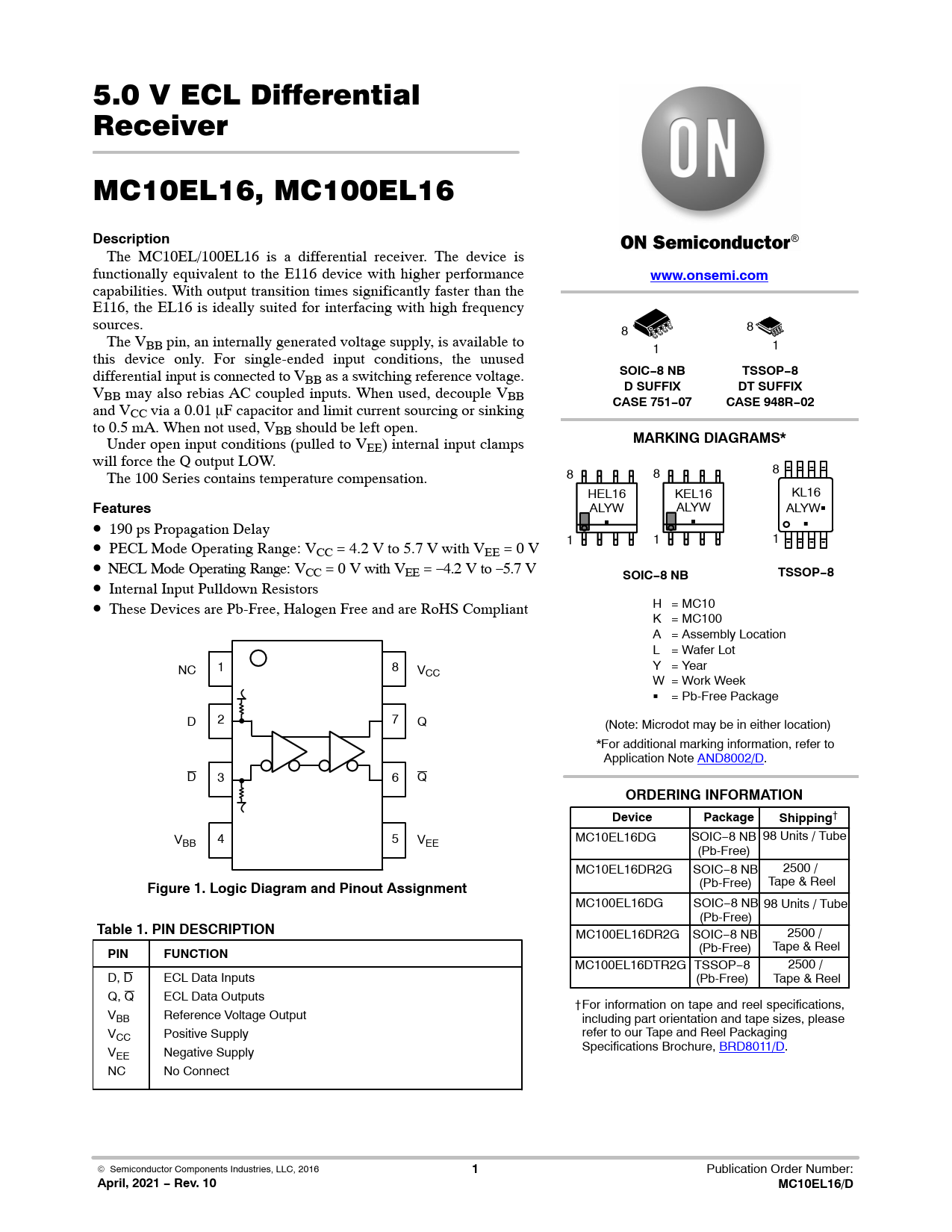

5.0 V ECL Differential Receiver MC10EL16, MC100EL16
Description
The MC10EL/100EL16 is a differential receiver. The device is functionally equivalent to the E116 device with higher performance
www.onsemi.com
capabilities. With output transition times significantly faster than the E116, the EL16 is ideally suited for interfacing with high frequency sources. 8 8 The VBB pin, an internally generated voltage supply, is available to 1 1 this device only. For single-ended input conditions, the unused differential input is connected to V
SOIC−8 NB TSSOP−8
BB as a switching reference voltage. V
D SUFFIX DT SUFFIX
BB may also rebias AC coupled inputs. When used, decouple VBB and V
CASE 751−07 CASE 948R−02
CC via a 0.01 mF capacitor and limit current sourcing or sinking to 0.5 mA. When not used, VBB should be left open. Under open input conditions (pulled to V
MARKING DIAGRAMS*
EE) internal input clamps will force the Q output LOW. The 100 Series contains temperature compensation. 8 8 8 HEL16 KEL16 KL16
Features
ALYW ALYW ALYWG • 190 ps Propagation Delay G G G • 1 1 1 PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V • NECL Mode Operating Range: VCC = 0 V with VEE = −4.2 V to −5.7 V
SOIC−8 NB TSSOP−8
• Internal Input Pulldown Resistors • These Devices are Pb-Free, Halogen Free and are RoHS Compliant H = MC10 K = MC100 A = Assembly Location L = Wafer Lot NC 1 8 V Y = Year CC W = Work Week G = Pb-Free Package D 2 7 Q (Note: Microdot may be in either location) *For additional marking information, refer to Application Note AND8002/D. D 3 6 Q
ORDERING INFORMATION Device Package Shipping
† V 4 5 98 Units / Tube BB VEE MC10EL16DG SOIC−8 NB (Pb-Free) MC10EL16DR2G SOIC−8 NB 2500 /
Figure 1. Logic Diagram and Pinout Assignment
(Pb-Free) Tape & Reel MC100EL16DG SOIC−8 NB 98 Units / Tube (Pb-Free)
Table 1. PIN DESCRIPTION
MC100EL16DR2G SOIC−8 NB 2500 /
PIN FUNCTION
(Pb-Free) Tape & Reel MC100EL16DTR2G TSSOP−8 2500 / D, D ECL Data Inputs (Pb-Free) Tape & Reel Q, Q ECL Data Outputs †For information on tape and reel specifications, VBB Reference Voltage Output including part orientation and tape sizes, please VCC Positive Supply refer to our Tape and Reel Packaging V Specifications Brochure, BRD8011/D. EE Negative Supply NC No Connect © Semiconductor Components Industries, LLC, 2016
1
Publication Order Number:
April, 2021 − Rev. 10 MC10EL16/D
