Monolithic InGaP HBT MMIC Amplifier. MAR-3+. Electrical Specifications at 25°C and 35mA, unless noted. Parameter. Min. Typ.3. Max
该数据表的模型线
文件文字版本

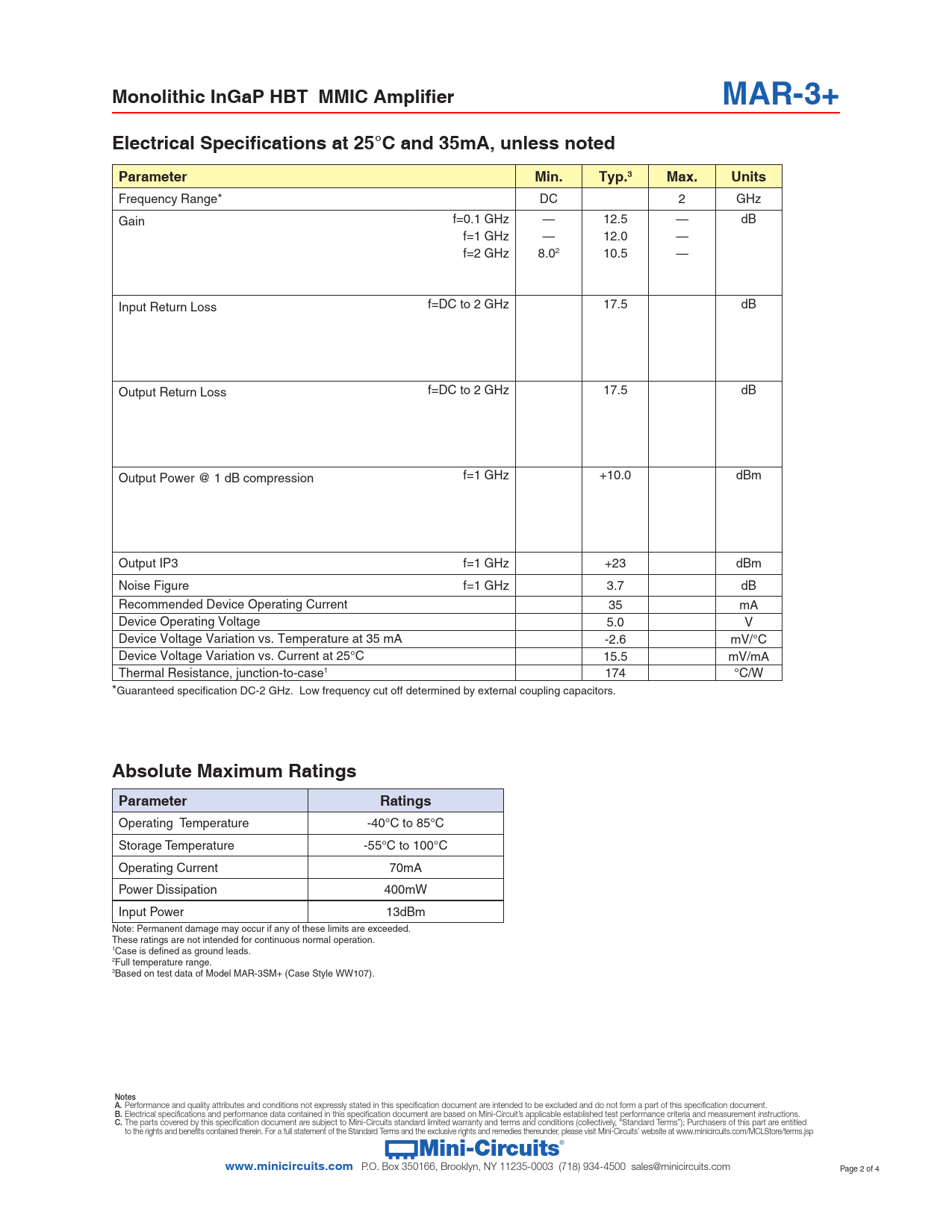

Monolithic InGaP HBT MMIC Amplifier MAR-3+ Electrical Specifications at 25°C and 35mA, unless noted Parameter Min. Typ.3 Max. Units
Frequency Range* DC 2 GHz Gain f=0.1 GHz — 12.5 — dB f=1 GHz — 12.0 — f=2 GHz 8.02 10.5 — Input Return Loss f=DC to 2 GHz 17.5 dB Output Return Loss f=DC to 2 GHz 17.5 dB Output Power @ 1 dB compression f=1 GHz +10.0 dBm Output IP3 f=1 GHz +23 dBm Noise Figure f=1 GHz 3.7 dB Recommended Device Operating Current 35 mA Device Operating Voltage 5.0 V Device Voltage Variation vs. Temperature at 35 mA -2.6 mV/°C Device Voltage Variation vs. Current at 25°C 15.5 mV/mA Thermal Resistance, junction-to-case1 174 °C/W *Guaranteed specification DC-2 GHz. Low frequency cut off determined by external coupling capacitors.
Absolute Maximum Ratings Parameter Ratings
Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Operating Current 70mA Power Dissipation 400mW Input Power 13dBm Note: Permanent damage may occur if any of these limits are exceeded. These ratings are not intended for continuous normal operation. 1Case is defined as ground leads. 2Full temperature range. 3Based on test data of Model MAR-3SM+ (Case Style WW107). Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
Mini-Circuits
®
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com Page 2 of 4 Document Outline MAR-3+ Data Sheet View Data View Graphs Case Style Tape and Reel PCB Layout Eval Board Enviromental Ratings
Frequency Range* DC 2 GHz Gain f=0.1 GHz — 12.5 — dB f=1 GHz — 12.0 — f=2 GHz 8.02 10.5 — Input Return Loss f=DC to 2 GHz 17.5 dB Output Return Loss f=DC to 2 GHz 17.5 dB Output Power @ 1 dB compression f=1 GHz +10.0 dBm Output IP3 f=1 GHz +23 dBm Noise Figure f=1 GHz 3.7 dB Recommended Device Operating Current 35 mA Device Operating Voltage 5.0 V Device Voltage Variation vs. Temperature at 35 mA -2.6 mV/°C Device Voltage Variation vs. Current at 25°C 15.5 mV/mA Thermal Resistance, junction-to-case1 174 °C/W *Guaranteed specification DC-2 GHz. Low frequency cut off determined by external coupling capacitors.
Absolute Maximum Ratings Parameter Ratings
Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Operating Current 70mA Power Dissipation 400mW Input Power 13dBm Note: Permanent damage may occur if any of these limits are exceeded. These ratings are not intended for continuous normal operation. 1Case is defined as ground leads. 2Full temperature range. 3Based on test data of Model MAR-3SM+ (Case Style WW107). Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
Mini-Circuits
®
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com Page 2 of 4 Document Outline MAR-3+ Data Sheet View Data View Graphs Case Style Tape and Reel PCB Layout Eval Board Enviromental Ratings
