Datasheet MAR-3+ (Mini-Circuits) - 7
| 制造商 | Mini-Circuits |
| 描述 | Drop-In Monolithic Amplifier DC-2 GHz |
| 页数 / 页 | 23 / 7 — MMIC Amplifier. MAR-3+. Definitions:. Input. Output. 1dB. IP3. Noise. … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
MMIC Amplifier. MAR-3+. Definitions:. Input. Output. 1dB. IP3. Noise. FREQ. Gain. Isolation. Return. Stability. Comp. Figure. Loss. (MHz). (dB). Delta. (dBm)
该数据表的模型线
文件文字版本

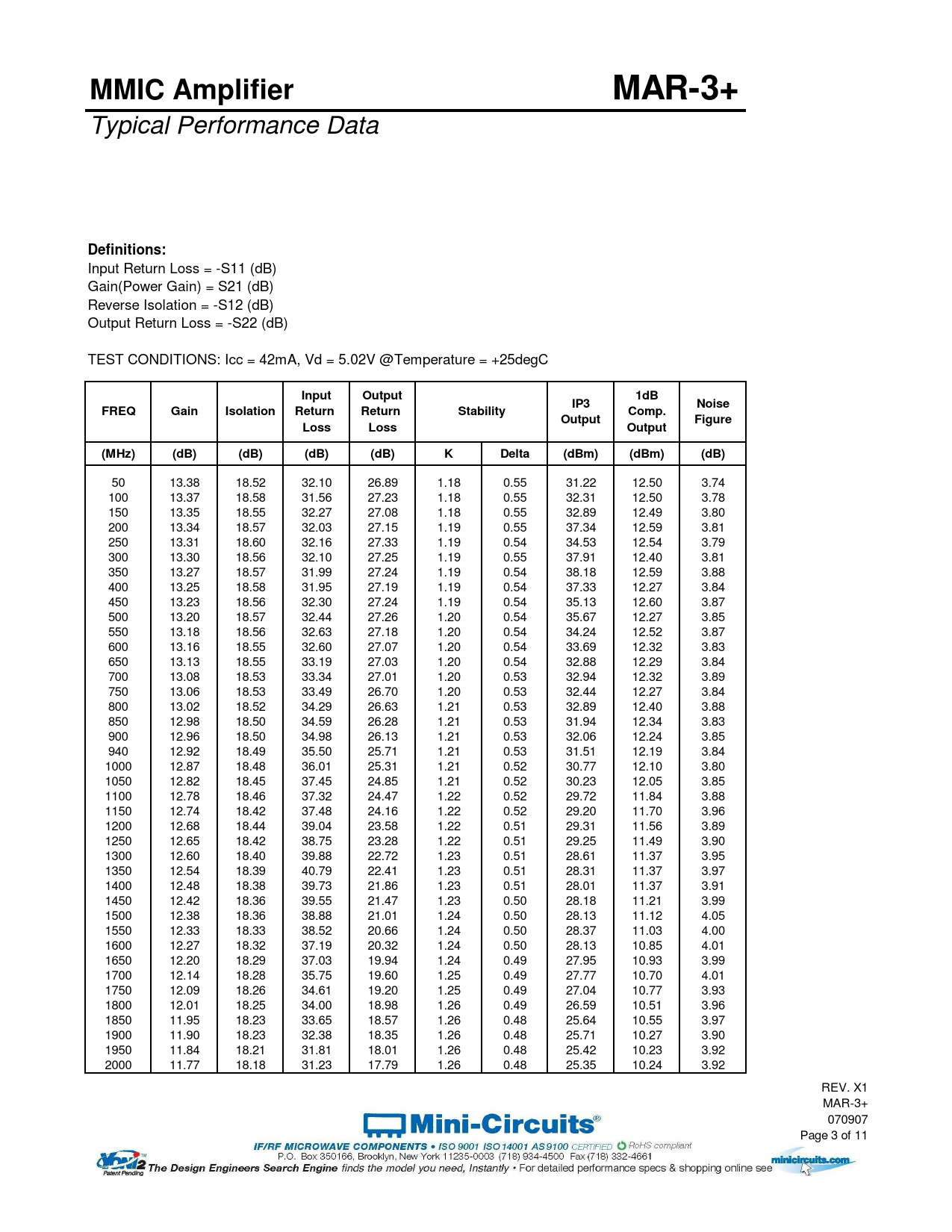

MMIC Amplifier MAR-3+
Typical Performance Data
Definitions:
Input Return Loss = -S11 (dB) Gain(Power Gain) = S21 (dB) Reverse Isolation = -S12 (dB) Output Return Loss = -S22 (dB) TEST CONDITIONS: Icc = 42mA, Vd = 5.02V @Temperature = +25degC
Input Output 1dB IP3 Noise FREQ Gain Isolation Return Return Stability Comp. Output Figure Loss Loss Output (MHz) (dB) (dB) (dB) (dB) K Delta (dBm) (dBm) (dB)
50 13.38 18.52 32.10 26.89 1.18 0.55 31.22 12.50 3.74 100 13.37 18.58 31.56 27.23 1.18 0.55 32.31 12.50 3.78 150 13.35 18.55 32.27 27.08 1.18 0.55 32.89 12.49 3.80 200 13.34 18.57 32.03 27.15 1.19 0.55 37.34 12.59 3.81 250 13.31 18.60 32.16 27.33 1.19 0.54 34.53 12.54 3.79 300 13.30 18.56 32.10 27.25 1.19 0.55 37.91 12.40 3.81 350 13.27 18.57 31.99 27.24 1.19 0.54 38.18 12.59 3.88 400 13.25 18.58 31.95 27.19 1.19 0.54 37.33 12.27 3.84 450 13.23 18.56 32.30 27.24 1.19 0.54 35.13 12.60 3.87 500 13.20 18.57 32.44 27.26 1.20 0.54 35.67 12.27 3.85 550 13.18 18.56 32.63 27.18 1.20 0.54 34.24 12.52 3.87 600 13.16 18.55 32.60 27.07 1.20 0.54 33.69 12.32 3.83 650 13.13 18.55 33.19 27.03 1.20 0.54 32.88 12.29 3.84 700 13.08 18.53 33.34 27.01 1.20 0.53 32.94 12.32 3.89 750 13.06 18.53 33.49 26.70 1.20 0.53 32.44 12.27 3.84 800 13.02 18.52 34.29 26.63 1.21 0.53 32.89 12.40 3.88 850 12.98 18.50 34.59 26.28 1.21 0.53 31.94 12.34 3.83 900 12.96 18.50 34.98 26.13 1.21 0.53 32.06 12.24 3.85 940 12.92 18.49 35.50 25.71 1.21 0.53 31.51 12.19 3.84 1000 12.87 18.48 36.01 25.31 1.21 0.52 30.77 12.10 3.80 1050 12.82 18.45 37.45 24.85 1.21 0.52 30.23 12.05 3.85 1100 12.78 18.46 37.32 24.47 1.22 0.52 29.72 11.84 3.88 1150 12.74 18.42 37.48 24.16 1.22 0.52 29.20 11.70 3.96 1200 12.68 18.44 39.04 23.58 1.22 0.51 29.31 11.56 3.89 1250 12.65 18.42 38.75 23.28 1.22 0.51 29.25 11.49 3.90 1300 12.60 18.40 39.88 22.72 1.23 0.51 28.61 11.37 3.95 1350 12.54 18.39 40.79 22.41 1.23 0.51 28.31 11.37 3.97 1400 12.48 18.38 39.73 21.86 1.23 0.51 28.01 11.37 3.91 1450 12.42 18.36 39.55 21.47 1.23 0.50 28.18 11.21 3.99 1500 12.38 18.36 38.88 21.01 1.24 0.50 28.13 11.12 4.05 1550 12.33 18.33 38.52 20.66 1.24 0.50 28.37 11.03 4.00 1600 12.27 18.32 37.19 20.32 1.24 0.50 28.13 10.85 4.01 1650 12.20 18.29 37.03 19.94 1.24 0.49 27.95 10.93 3.99 1700 12.14 18.28 35.75 19.60 1.25 0.49 27.77 10.70 4.01 1750 12.09 18.26 34.61 19.20 1.25 0.49 27.04 10.77 3.93 1800 12.01 18.25 34.00 18.98 1.26 0.49 26.59 10.51 3.96 1850 11.95 18.23 33.65 18.57 1.26 0.48 25.64 10.55 3.97 1900 11.90 18.23 32.38 18.35 1.26 0.48 25.71 10.27 3.90 1950 11.84 18.21 31.81 18.01 1.26 0.48 25.42 10.23 3.92 2000 11.77 18.18 31.23 17.79 1.26 0.48 25.35 10.24 3.92 REV. X1 MAR-3+ 070907 Page 3 of 11 Document Outline MAR-3+ Data Sheet View Data View Graphs Case Style Tape and Reel PCB Layout Eval Board Enviromental Ratings
Typical Performance Data
Definitions:
Input Return Loss = -S11 (dB) Gain(Power Gain) = S21 (dB) Reverse Isolation = -S12 (dB) Output Return Loss = -S22 (dB) TEST CONDITIONS: Icc = 42mA, Vd = 5.02V @Temperature = +25degC
Input Output 1dB IP3 Noise FREQ Gain Isolation Return Return Stability Comp. Output Figure Loss Loss Output (MHz) (dB) (dB) (dB) (dB) K Delta (dBm) (dBm) (dB)
50 13.38 18.52 32.10 26.89 1.18 0.55 31.22 12.50 3.74 100 13.37 18.58 31.56 27.23 1.18 0.55 32.31 12.50 3.78 150 13.35 18.55 32.27 27.08 1.18 0.55 32.89 12.49 3.80 200 13.34 18.57 32.03 27.15 1.19 0.55 37.34 12.59 3.81 250 13.31 18.60 32.16 27.33 1.19 0.54 34.53 12.54 3.79 300 13.30 18.56 32.10 27.25 1.19 0.55 37.91 12.40 3.81 350 13.27 18.57 31.99 27.24 1.19 0.54 38.18 12.59 3.88 400 13.25 18.58 31.95 27.19 1.19 0.54 37.33 12.27 3.84 450 13.23 18.56 32.30 27.24 1.19 0.54 35.13 12.60 3.87 500 13.20 18.57 32.44 27.26 1.20 0.54 35.67 12.27 3.85 550 13.18 18.56 32.63 27.18 1.20 0.54 34.24 12.52 3.87 600 13.16 18.55 32.60 27.07 1.20 0.54 33.69 12.32 3.83 650 13.13 18.55 33.19 27.03 1.20 0.54 32.88 12.29 3.84 700 13.08 18.53 33.34 27.01 1.20 0.53 32.94 12.32 3.89 750 13.06 18.53 33.49 26.70 1.20 0.53 32.44 12.27 3.84 800 13.02 18.52 34.29 26.63 1.21 0.53 32.89 12.40 3.88 850 12.98 18.50 34.59 26.28 1.21 0.53 31.94 12.34 3.83 900 12.96 18.50 34.98 26.13 1.21 0.53 32.06 12.24 3.85 940 12.92 18.49 35.50 25.71 1.21 0.53 31.51 12.19 3.84 1000 12.87 18.48 36.01 25.31 1.21 0.52 30.77 12.10 3.80 1050 12.82 18.45 37.45 24.85 1.21 0.52 30.23 12.05 3.85 1100 12.78 18.46 37.32 24.47 1.22 0.52 29.72 11.84 3.88 1150 12.74 18.42 37.48 24.16 1.22 0.52 29.20 11.70 3.96 1200 12.68 18.44 39.04 23.58 1.22 0.51 29.31 11.56 3.89 1250 12.65 18.42 38.75 23.28 1.22 0.51 29.25 11.49 3.90 1300 12.60 18.40 39.88 22.72 1.23 0.51 28.61 11.37 3.95 1350 12.54 18.39 40.79 22.41 1.23 0.51 28.31 11.37 3.97 1400 12.48 18.38 39.73 21.86 1.23 0.51 28.01 11.37 3.91 1450 12.42 18.36 39.55 21.47 1.23 0.50 28.18 11.21 3.99 1500 12.38 18.36 38.88 21.01 1.24 0.50 28.13 11.12 4.05 1550 12.33 18.33 38.52 20.66 1.24 0.50 28.37 11.03 4.00 1600 12.27 18.32 37.19 20.32 1.24 0.50 28.13 10.85 4.01 1650 12.20 18.29 37.03 19.94 1.24 0.49 27.95 10.93 3.99 1700 12.14 18.28 35.75 19.60 1.25 0.49 27.77 10.70 4.01 1750 12.09 18.26 34.61 19.20 1.25 0.49 27.04 10.77 3.93 1800 12.01 18.25 34.00 18.98 1.26 0.49 26.59 10.51 3.96 1850 11.95 18.23 33.65 18.57 1.26 0.48 25.64 10.55 3.97 1900 11.90 18.23 32.38 18.35 1.26 0.48 25.71 10.27 3.90 1950 11.84 18.21 31.81 18.01 1.26 0.48 25.42 10.23 3.92 2000 11.77 18.18 31.23 17.79 1.26 0.48 25.35 10.24 3.92 REV. X1 MAR-3+ 070907 Page 3 of 11 Document Outline MAR-3+ Data Sheet View Data View Graphs Case Style Tape and Reel PCB Layout Eval Board Enviromental Ratings
