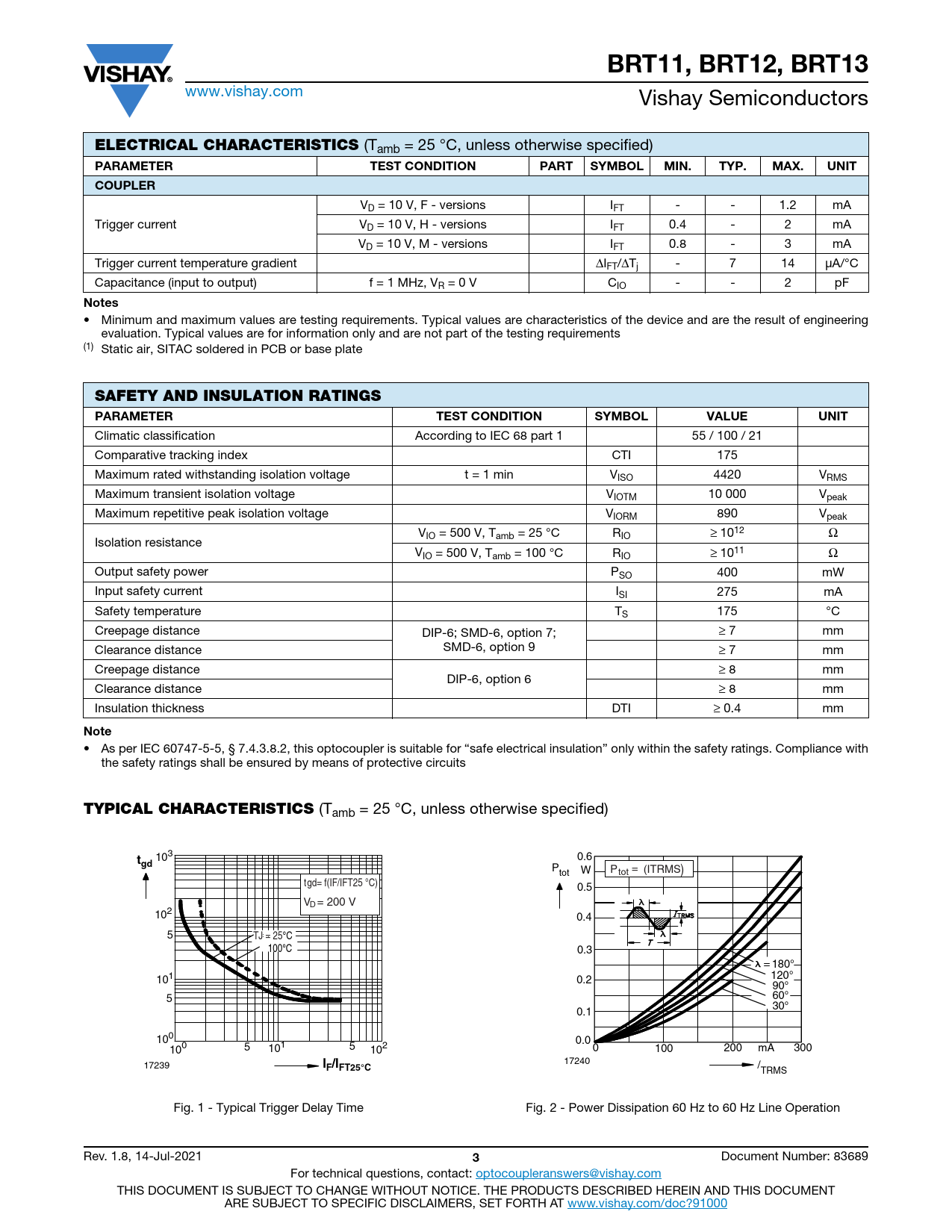

BRT11, BRT12, BRT13
www.vishay.com Vishay Semiconductors
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT COUPLER
VD = 10 V, F - versions IFT - - 1.2 mA Trigger current VD = 10 V, H - versions IFT 0.4 - 2 mA VD = 10 V, M - versions IFT 0.8 - 3 mA Trigger current temperature gradient ΔIFT/ΔTj - 7 14 μA/°C Capacitance (input to output) f = 1 MHz, VR = 0 V CIO - - 2 pF
Notes
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering evaluation. Typical values are for information only and are not part of the testing requirements (1) Static air, SITAC soldered in PCB or base plate
SAFETY AND INSULATION RATINGS PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Climatic classification According to IEC 68 part 1 55 / 100 / 21 Comparative tracking index CTI 175 Maximum rated withstanding isolation voltage t = 1 min VISO 4420 VRMS Maximum transient isolation voltage VIOTM 10 000 Vpeak Maximum repetitive peak isolation voltage VIORM 890 Vpeak VIO = 500 V, Tamb = 25 °C RIO ≥ 1012 Ω Isolation resistance VIO = 500 V, Tamb = 100 °C RIO ≥ 1011 Ω Output safety power PSO 400 mW Input safety current ISI 275 mA Safety temperature TS 175 °C Creepage distance DIP-6; SMD-6, option 7; ≥ 7 mm SMD-6, option 9 Clearance distance ≥ 7 mm Creepage distance ≥ 8 mm DIP-6, option 6 Clearance distance ≥ 8 mm Insulation thickness DTI ≥ 0.4 mm
Note
• As per IEC 60747-5-5, § 7.4.3.8.2, this optocoupler is suitable for “safe electrical insulation” only within the safety ratings. Compliance with the safety ratings shall be ensured by means of protective circuits
TYPICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified) 103
t
0.6
gd
P W P tot tot = (ITRMS) t gd = f(IF/IFT25 °C) 0.5 V D = 200 V 102 0.4 5 TJ = 25
°
C 100
°
C 0.3 180° 101 0.2 120° 90° 5 60° 30° 0.1 100 0.0 100 5 101 5 102 0 100 200 mA 300 17240 17239
IF/IFT25°C
/TRMS Fig. 1 - Typical Trigger Delay Time Fig. 2 - Power Dissipation 60 Hz to 60 Hz Line Operation Rev. 1.8, 14-Jul-2021
3
Document Number: 83689 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
