Datasheet NC7SV57, NC7SV58 (ON Semiconductor) - 4
| 制造商 | ON Semiconductor |
| 描述 | TinyLogic ULP-A Universal Configurable 2-Input Logic Gates |
| 页数 / 页 | 13 / 4 — NC7SV57, NC7SV58. Logic Configurations NC7SV58. Figure 7. 2−Input NAND … |
| 修订版 | 3 |
| 文件格式/大小 | PDF / 380 Kb |
| 文件语言 | 英语 |
NC7SV57, NC7SV58. Logic Configurations NC7SV58. Figure 7. 2−Input NAND Gate. Figure 8. 2−Input AND with Inverted A Input
该数据表的模型线
文件文字版本
link to page 4 link to page 4

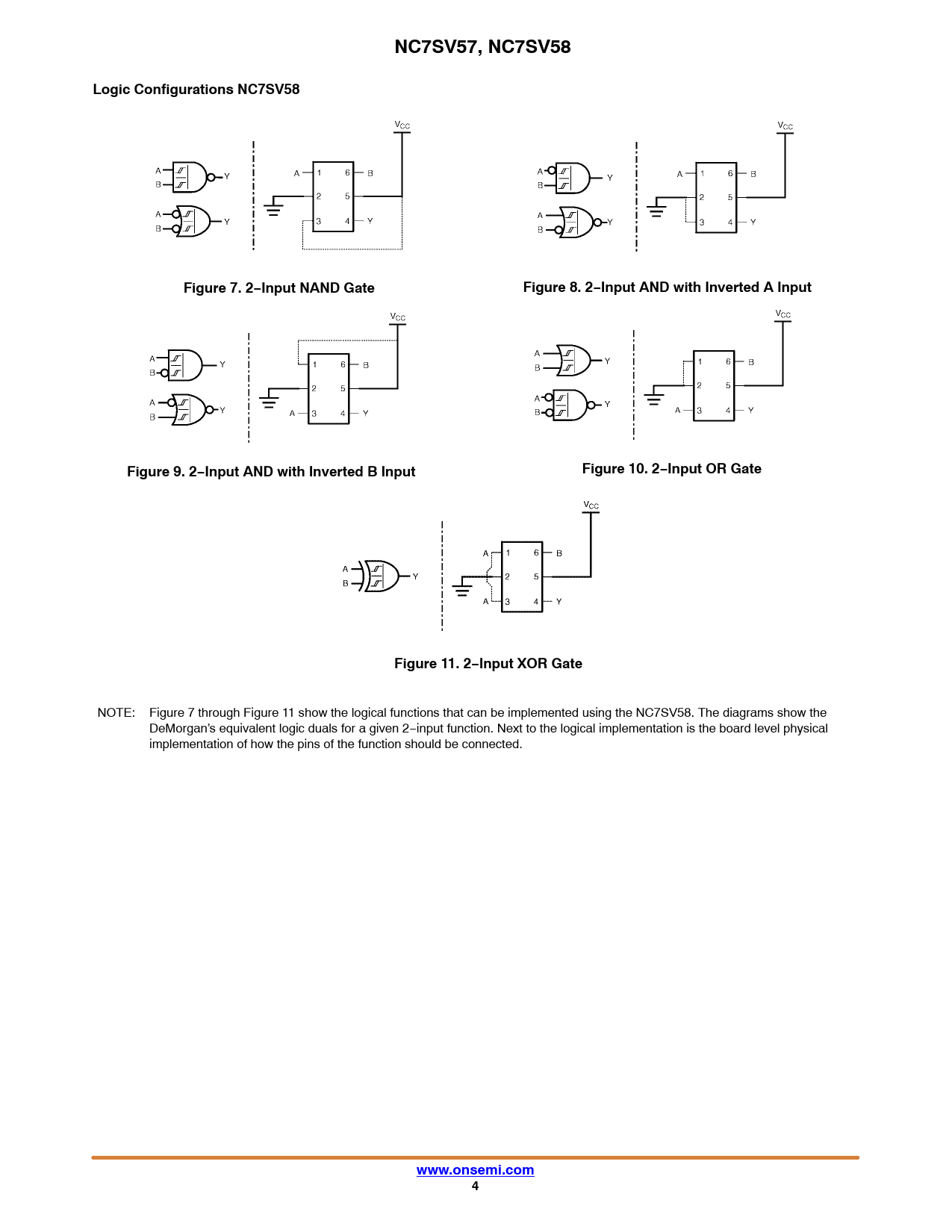

NC7SV57, NC7SV58 Logic Configurations NC7SV58 Figure 7. 2−Input NAND Gate Figure 8. 2−Input AND with Inverted A Input Figure 9. 2−Input AND with Inverted B Input Figure 10. 2−Input OR Gate Figure 11. 2−Input XOR Gate
NOTE: Figure 7 through Figure 11 show the logical functions that can be implemented using the NC7SV58. The diagrams show the DeMorgan’s equivalent logic duals for a given 2−input function. Next to the logical implementation is the board level physical implementation of how the pins of the function should be connected.
www.onsemi.com 4
