Datasheet D44H8 - D44H11, D45H8 - D45H11 (STMicroelectronics) - 6
| 制造商 | STMicroelectronics |
| 描述 | Complementary power transistors |
| 页数 / 页 | 8 / 6 — Package mechanical data. D44H8, D44H11, D45H8, D45H11. TO-220 type A … |
| 文件格式/大小 | PDF / 185 Kb |
| 文件语言 | 英语 |

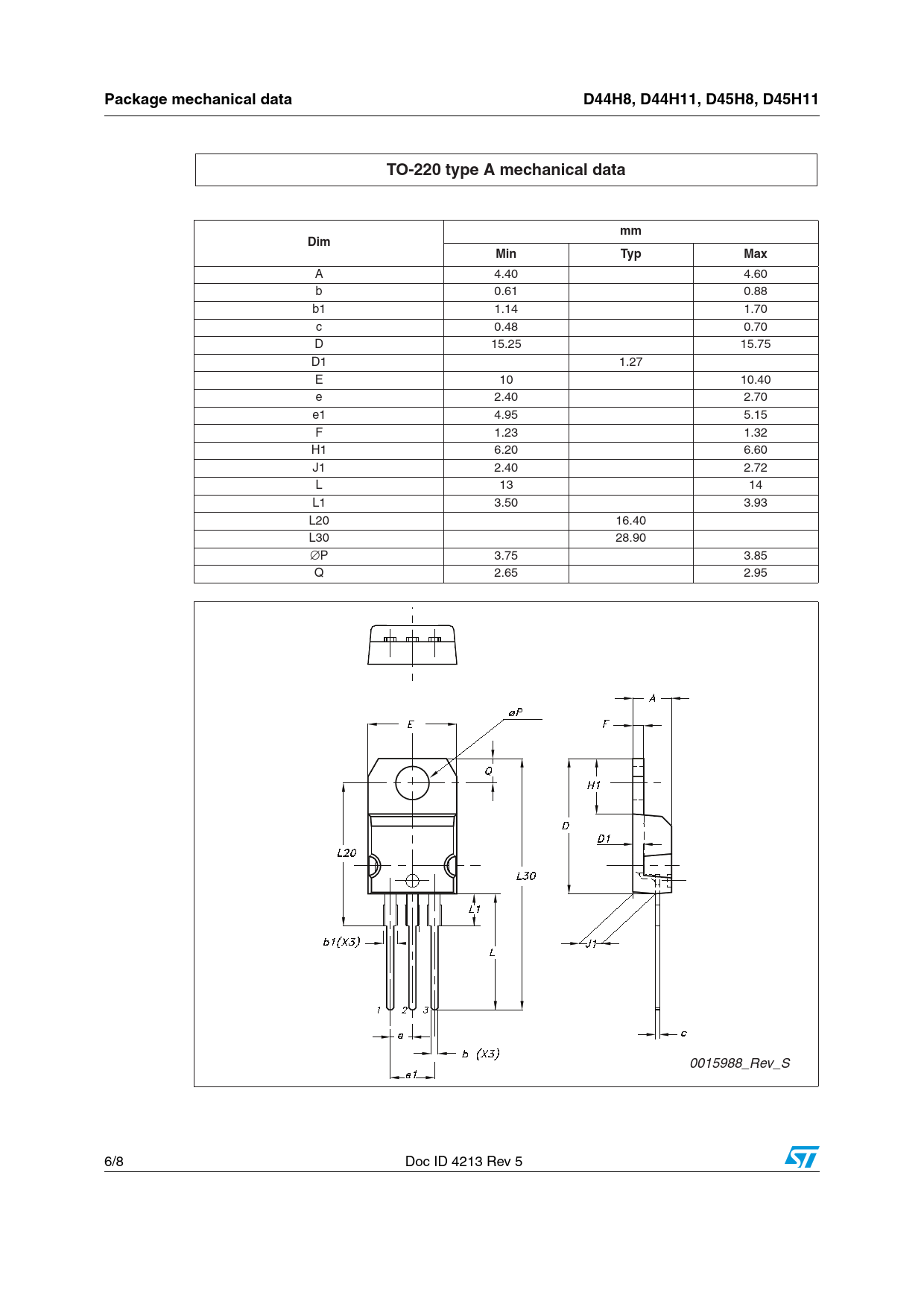

Package mechanical data. D44H8, D44H11, D45H8, D45H11. TO-220 type A mechanical data. Dim. Min. Typ. Max
该数据表的模型线
文件文字版本
Package mechanical data D44H8, D44H11, D45H8, D45H11 TO-220 type A mechanical data mm Dim Min Typ Max
A 4.40 4.60 b 0.61 0.88 b1 1.14 1.70 c 0.48 0.70 D 15.25 15.75 D1 1.27 E 10 10.40 e 2.40 2.70 e1 4.95 5.15 F 1.23 1.32 H1 6.20 6.60 J1 2.40 2.72 L 13 14 L1 3.50 3.93 L20 16.40 L30 28.90 ∅P 3.75 3.85 Q 2.65 2.95 0015988_Rev_S 6/8 Doc ID 4213 Rev 5 Document Outline Figure 1. Internal schematic diagram Table 1. Device summary 1 Absolute maximum ratings Table 2. Absolute maximum ratings Table 3. Thermal data 2 Electrical characteristics Table 4. Electrical characteristics 2.1 Electrical characteristics (curves) Figure 2. Safe operating area Figure 3. Derating curve Figure 4. DC current gain (NPN) Figure 5. DC current gain (PNP) Figure 6. Collector-emitter saturation voltage (NPN) Figure 7. Collector-emitter saturation voltage (PNP) 3 Package mechanical data 4 Revision history Table 5. Document revision history
