Datasheet IRLZ44 (Vishay) - 3
| 制造商 | Vishay |
| 描述 | Power MOSFET |
| 页数 / 页 | 9 / 3 — IRLZ44. TYPICAL CHARACTERISTICS. Fig. 1 - Typical Output Characteristics, … |
| 文件格式/大小 | PDF / 901 Kb |
| 文件语言 | 英语 |

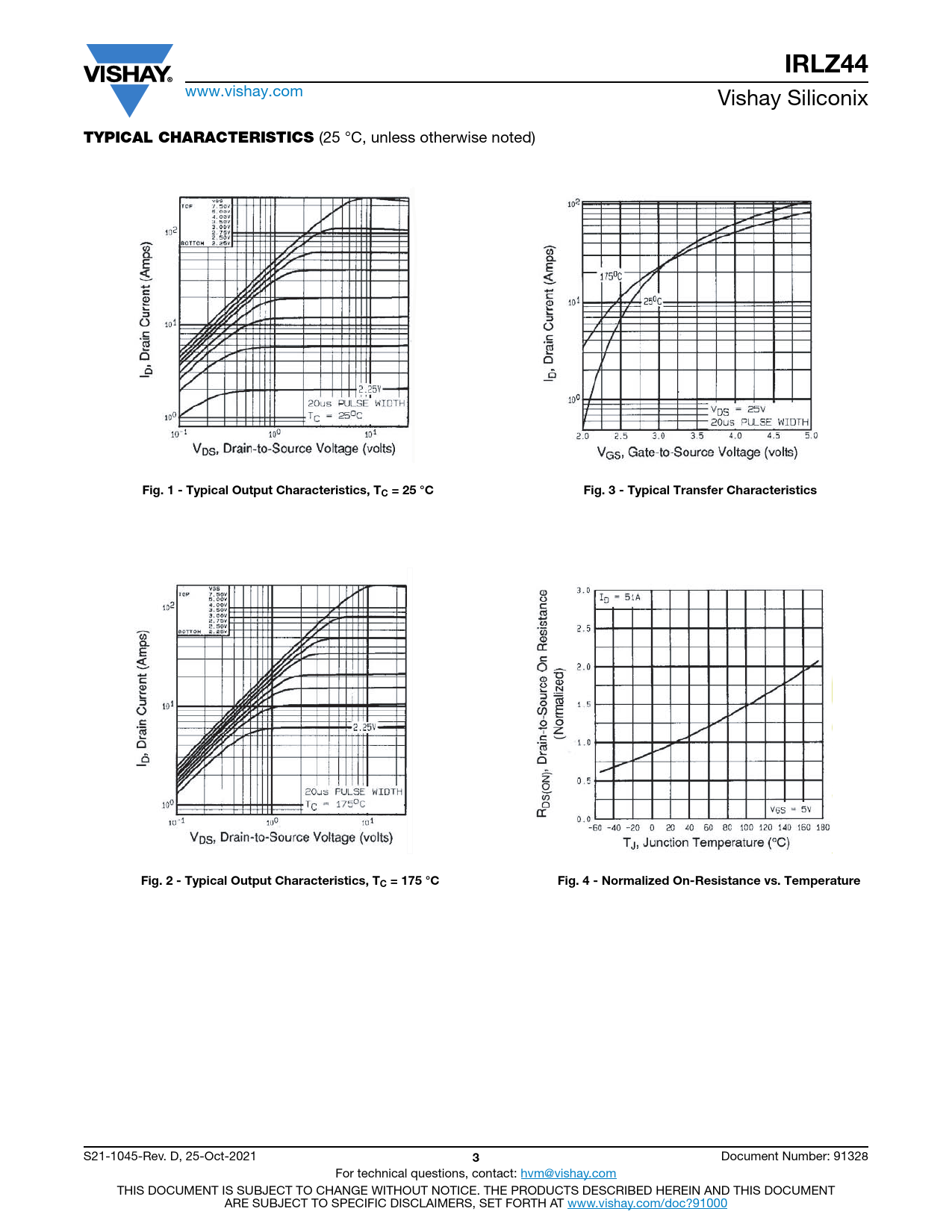

IRLZ44. TYPICAL CHARACTERISTICS. Fig. 1 - Typical Output Characteristics, TC = 25 °C
该数据表的模型线
文件文字版本
IRLZ44
www.vishay.com Vishay Siliconix
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)
Fig. 1 - Typical Output Characteristics, TC = 25 °C Fig. 3 - Typical Transfer Characteristics Fig. 2 - Typical Output Characteristics, TC = 175 °C Fig. 4 - Normalized On-Resistance vs. Temperature
S21-1045-Rev. D, 25-Oct-2021
3
