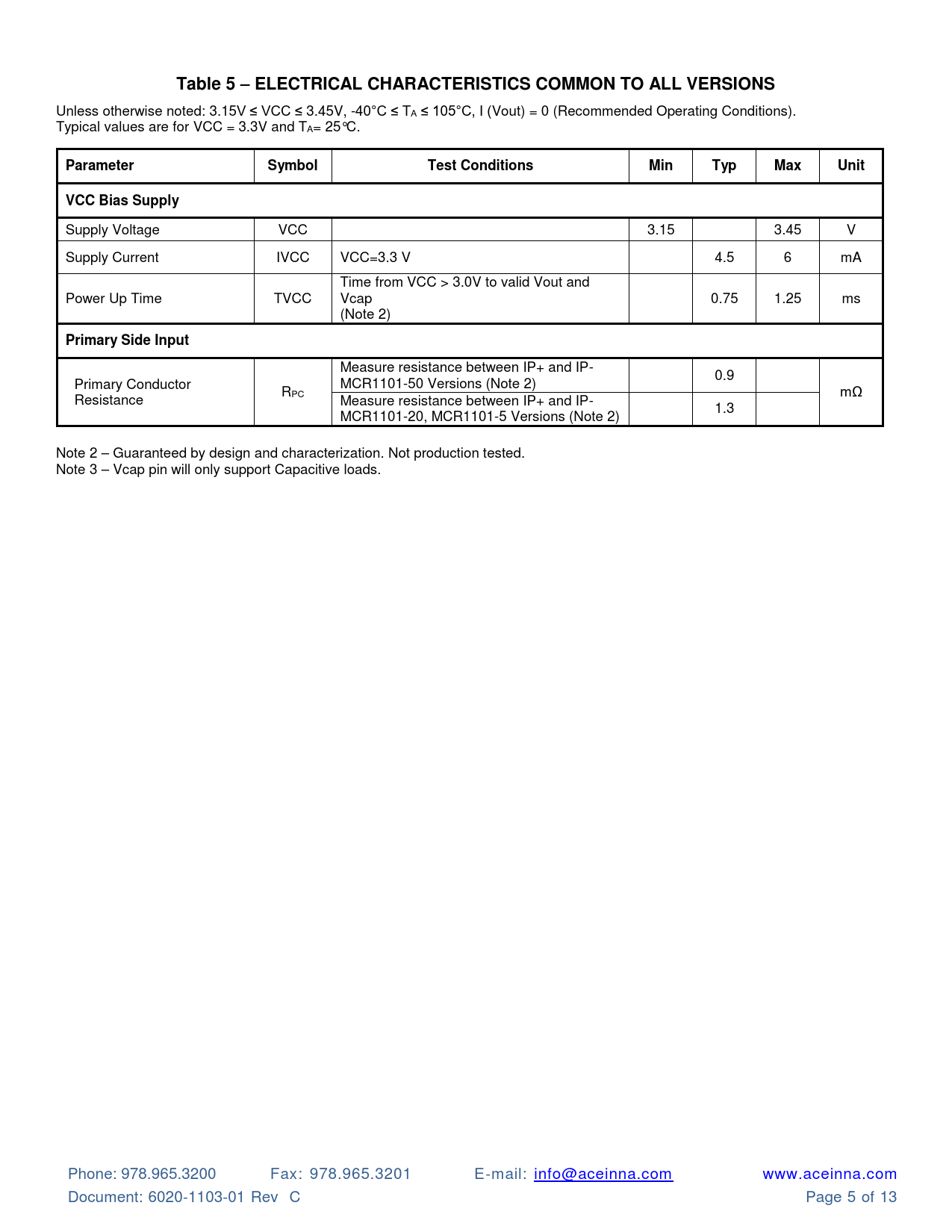

Table 5 – ELECTRICAL CHARACTERISTICS COMMON TO ALL VERSIONS Unless otherwise noted: 3.15V ≤ VCC ≤ 3.45V, -40°C ≤ TA ≤ 105°C, I (Vout) = 0 (Recommended Operating Conditions). Typical values are for VCC = 3.3V and TA= 25°C. ParameterSymbolTest ConditionsMinTypMaxUnitVCC Bias Supply Supply Voltage VCC 3.15 3.45 V Supply Current IVCC VCC=3.3 V 4.5 6 mA Time from VCC > 3.0V to valid Vout and Power Up Time TVCC Vcap 0.75 1.25 ms (Note 2) Primary Side Input Measure resistance between IP+ and IP- 0.9 Primary Conductor MCR1101-50 Versions (Note 2) R mΩ Resistance PC Measure resistance between IP+ and IP- 1.3 MCR1101-20, MCR1101-5 Versions (Note 2) Note 2 – Guaranteed by design and characterization. Not production tested. Note 3 – Vcap pin will only support Capacitive loads. Phone: 978.965.3200 Fax: 978.965.3201 E-mail: info@aceinna.com www.aceinna.com Document: 6020-1103-01 Rev C Page 5 of 13
