Datasheet CMFBR-6F (Central Semiconductor) - 2
| 制造商 | Central Semiconductor |
| 描述 | SURFACE MOUNT SILICON BRIDGE RECTIFIER |
| 页数 / 页 | 4 / 2 — CMFBR-6F. SURFACE MOUNT SILICON. BRIDGE RECTIFIER. SOT-143 CASE - … |
| 文件格式/大小 | PDF / 465 Kb |
| 文件语言 | 英语 |

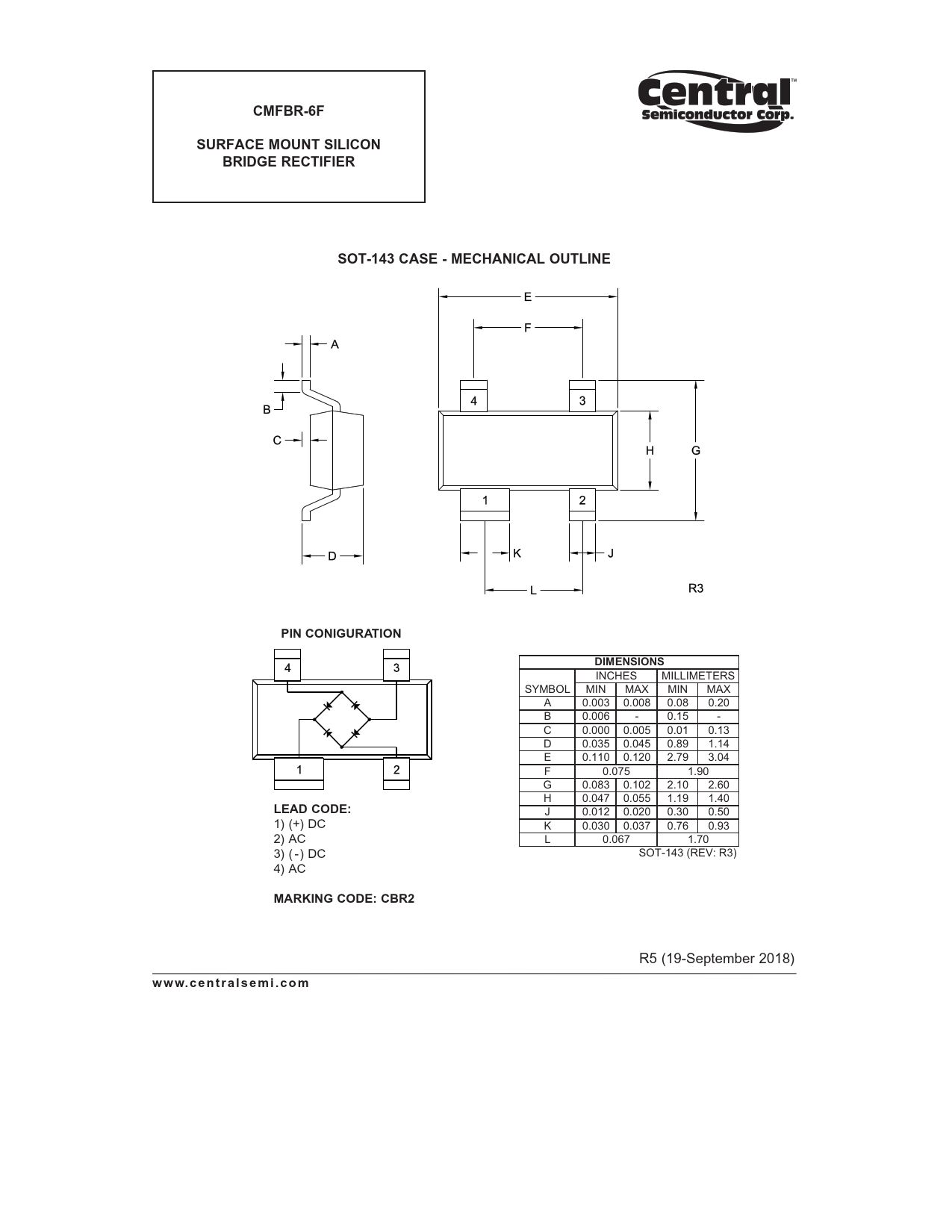

CMFBR-6F. SURFACE MOUNT SILICON. BRIDGE RECTIFIER. SOT-143 CASE - MECHANICAL OUTLINE. PIN CONIGURATION. DIMENSIONS. LEAD CODE:
该数据表的模型线
文件文字版本
CMFBR-6F SURFACE MOUNT SILICON BRIDGE RECTIFIER SOT-143 CASE - MECHANICAL OUTLINE PIN CONIGURATION DIMENSIONS
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.003 0.008 0.08 0.20 B 0.006 - 0.15 - C 0.000 0.005 0.01 0.13 D 0.035 0.045 0.89 1.14 E 0.110 0.120 2.79 3.04 F 0.075 1.90 G 0.083 0.102 2.10 2.60 H 0.047 0.055 1.19 1.40
LEAD CODE:
J 0.012 0.020 0.30 0.50 1) (+) DC K 0.030 0.037 0.76 0.93 2) AC L 0.067 1.70 3) ( - ) DC SOT-143 (REV: R3) 4) AC
MARKING CODE: CBR2
R5 (19-September 2018)
www.centralsemi.com
INCHES MILLIMETERS SYMBOL MIN MAX MIN MAX A 0.003 0.008 0.08 0.20 B 0.006 - 0.15 - C 0.000 0.005 0.01 0.13 D 0.035 0.045 0.89 1.14 E 0.110 0.120 2.79 3.04 F 0.075 1.90 G 0.083 0.102 2.10 2.60 H 0.047 0.055 1.19 1.40
LEAD CODE:
J 0.012 0.020 0.30 0.50 1) (+) DC K 0.030 0.037 0.76 0.93 2) AC L 0.067 1.70 3) ( - ) DC SOT-143 (REV: R3) 4) AC
MARKING CODE: CBR2
