| 描述 | 1.2W, Low-EMI, Filterless, Class D Audio Amplifier |
| 页数 / 页 | 17 / 2 — Absolute Maximum Ratings. Electrical Characteristics. VDD = PVDD = VSHDN … |
| 文件格式/大小 | PDF / 2.1 Mb |
| 文件语言 | 英语 |

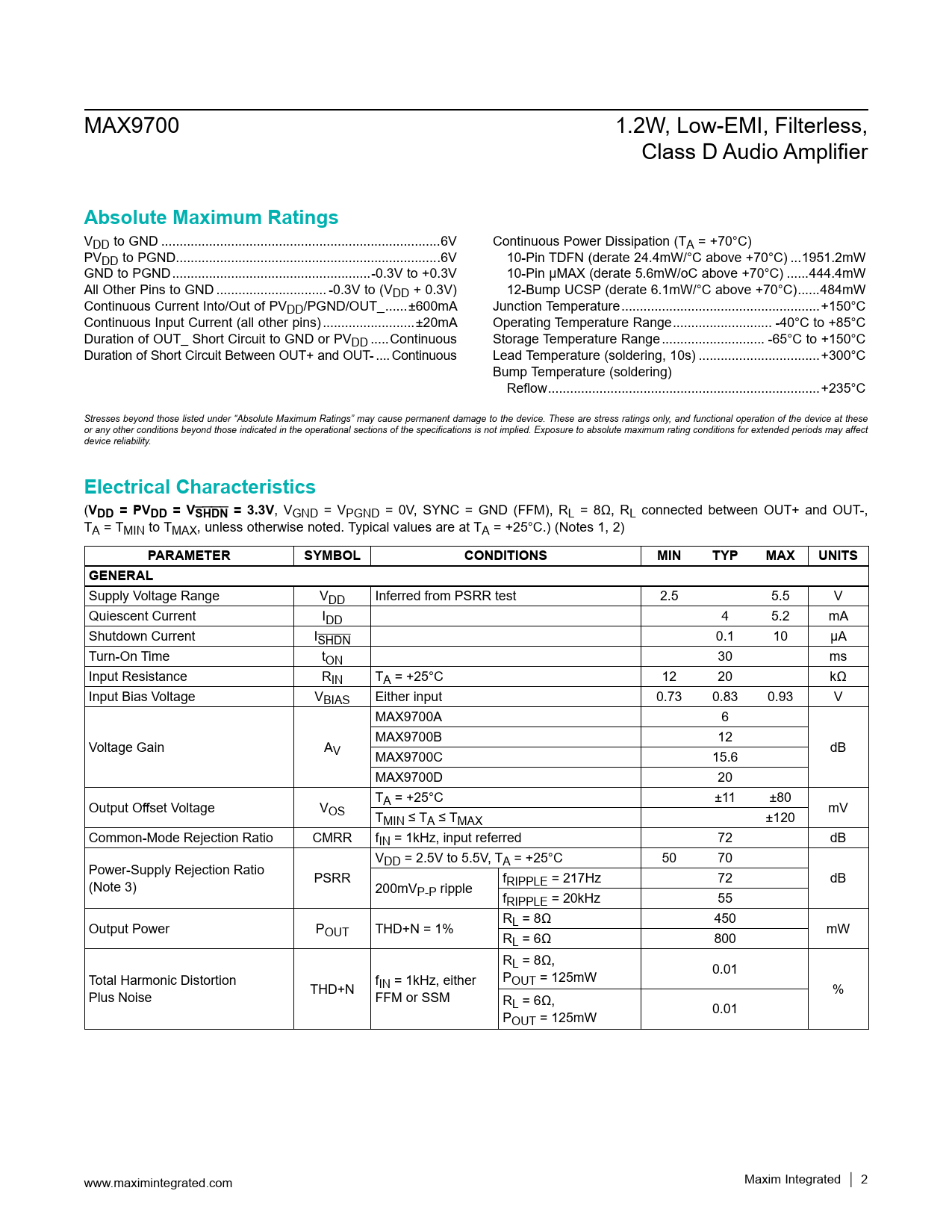

Absolute Maximum Ratings. Electrical Characteristics. VDD = PVDD = VSHDN = 3.3V. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS
该数据表的模型线
文件文字版本
MAX9700 1.2W, Low-EMI, Filterless, Class D Audio Amplifier
Absolute Maximum Ratings
VDD to GND ..6V Continuous Power Dissipation (TA = +70°C) PVDD to PGND ..6V 10-Pin TDFN (derate 24.4mW/°C above +70°C) ...1951.2mW GND to PGND ..-0.3V to +0.3V 10-Pin μMAX (derate 5.6mW/oC above +70°C) ..444.4mW All Other Pins to GND .. -0.3V to (VDD + 0.3V) 12-Bump UCSP (derate 6.1mW/°C above +70°C) ..484mW Continuous Current Into/Out of PVDD/PGND/OUT_ ..±600mA Junction Temperature ..+150°C Continuous Input Current (all other pins) ...±20mA Operating Temperature Range ... -40°C to +85°C Duration of OUT_ Short Circuit to GND or PVDD ...Continuous Storage Temperature Range .. -65°C to +150°C Duration of Short Circuit Between OUT+ and OUT- .. Continuous Lead Temperature (soldering, 10s) ...+300°C Bump Temperature (soldering) Reflow ..+235°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Electrical Characteristics
(
VDD = PVDD = VSHDN = 3.3V
, VGND = VPGND = 0V, SYNC = GND (FFM), RL = 8Ω, RL connected between OUT+ and OUT-, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Notes 1, 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS GENERAL
Supply Voltage Range VDD Inferred from PSRR test 2.5 5.5 V Quiescent Current IDD 4 5.2 mA Shutdown Current ISHDN 0.1 10 µA Turn-On Time tON 30 ms Input Resistance RIN TA = +25°C 12 20 kΩ Input Bias Voltage VBIAS Either input 0.73 0.83 0.93 V MAX9700A 6 MAX9700B 12 Voltage Gain AV dB MAX9700C 15.6 MAX9700D 20 T Output Offset Voltage V A = +25°C ±11 ±80 OS mV TMIN ≤ TA ≤ TMAX ±120 Common-Mode Rejection Ratio CMRR fIN = 1kHz, input referred 72 dB V Power-Supply Rejection Ratio DD = 2.5V to 5.5V, TA = +25°C 50 70 (Note 3) PSRR fRIPPLE = 217Hz 72 dB 200mVP-P ripple fRIPPLE = 20kHz 55 R Output Power P L = 8Ω 450 OUT THD+N = 1% mW RL = 6Ω 800 RL = 8Ω, Total Harmonic Distortion POUT = 125mW 0.01 Plus Noise THD+N fIN = 1kHz, either FFM or SSM % RL = 6Ω, POUT = 125mW 0.01 www.maximintegrated.com Maxim Integrated │ 2
