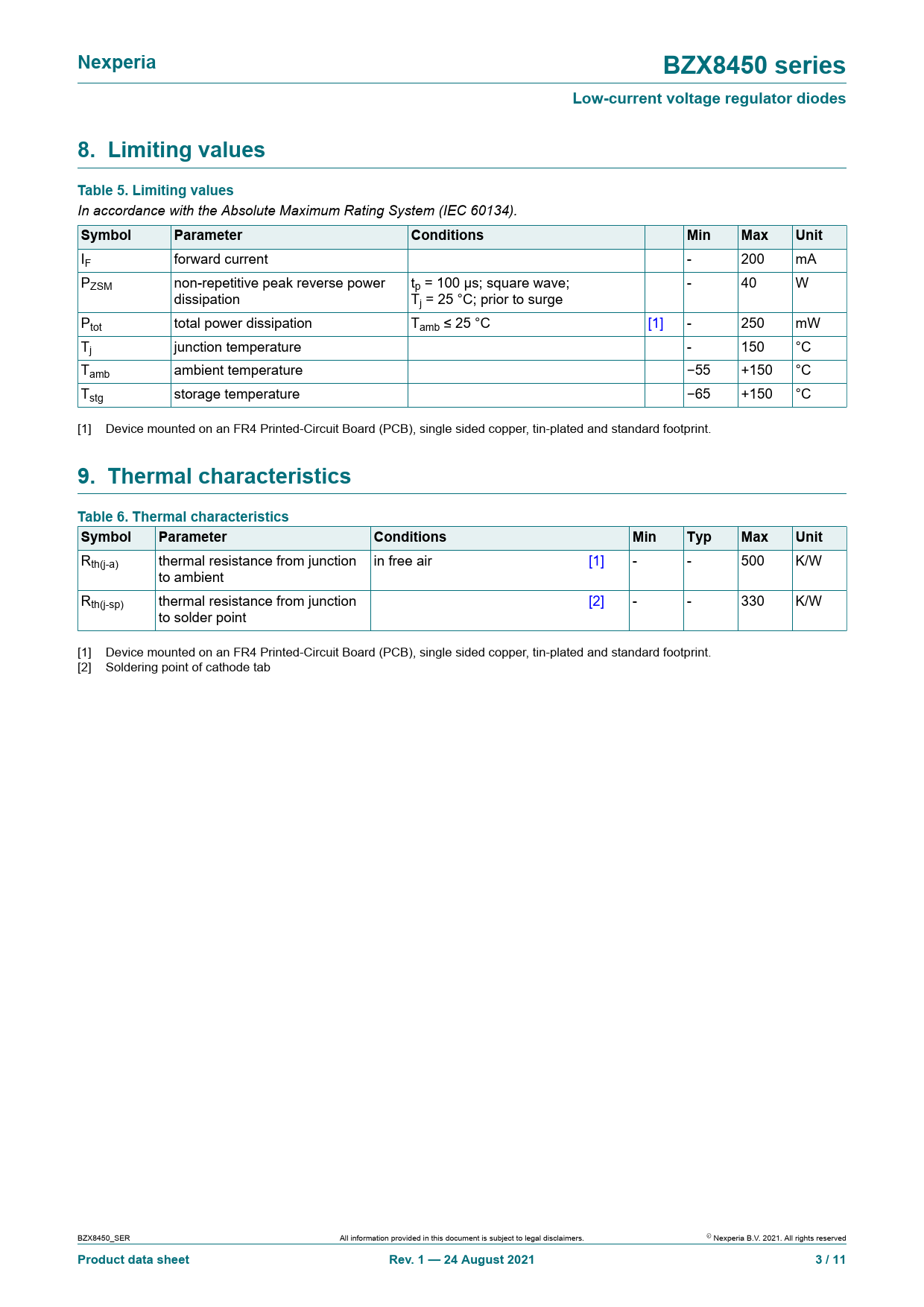

Nexperia BZX8450 series Low-current voltage regulator diodes 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
IF forward current - 200 mA PZSM non-repetitive peak reverse power tp = 100 µs; square wave; - 40 W dissipation Tj = 25 °C; prior to surge Ptot total power dissipation Tamb ≤ 25 °C [1] - 250 mW Tj junction temperature - 150 °C Tamb ambient temperature −55 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single sided copper, tin-plated and standard footprint.
9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from junction in free air [1] - - 500 K/W to ambient Rth(j-sp) thermal resistance from junction [2] - - 330 K/W to solder point [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single sided copper, tin-plated and standard footprint. [2] Soldering point of cathode tab BZX8450_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 24 August 2021 3 / 11
