Nexperia BZX8450 series Low-current voltage regulator diodes
aaa-006666 10-1 aaa-006667 10-1 IR IR 30 36 43 51 62 75 (A) (A) 10-2 7V5 10 12 15 18 22 10-2 27 33 39 47 56 68 8V2 10-3 10-3 9V1 11 13 16 20 24 10-4 10-4 10-5 10-5 10-6 10-6 10-7 10-7 10-8 10-8 10-9 0 5 10 15 20 25 20 40 60 80 VR (V) VR (V) Tamb = 25 °C Tamb = 25 °C

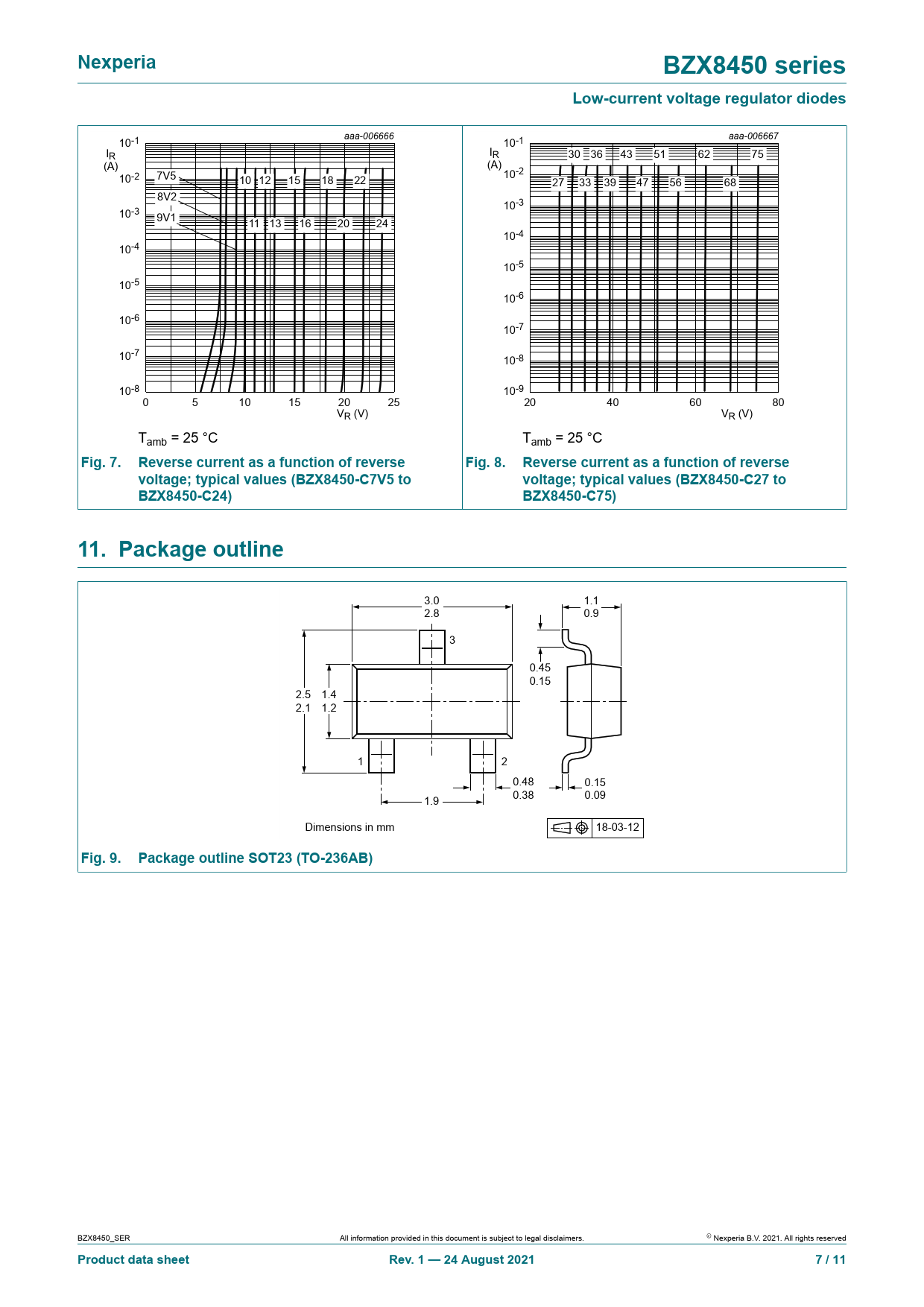

Fig. 7. Reverse current as a function of reverse Fig. 8. Reverse current as a function of reverse voltage; typical values (BZX8450-C7V5 to voltage; typical values (BZX8450-C27 to BZX8450-C24) BZX8450-C75) 11. Package outline
3.0 1.1 2.8 0.9 3 0.45 0.15 2.5 1.4 2.1 1.2 1 2 0.48 0.15 1.9 0.38 0.09 Dimensions in mm 18-03-12
Fig. 9. Package outline SOT23 (TO-236AB)
