Nexperia. BZX8850S series. Low-current voltage regulator diodes. 12. Soldering
该数据表的模型线
- BZX8850S-C10YL BZX8850S-C11YL BZX8850S-C12YL BZX8850S-C13YL BZX8850S-C15YL BZX8850S-C16YL BZX8850S-C18YL BZX8850S-C1V8YL BZX8850S-C20YL BZX8850S-C22YL BZX8850S-C24YL BZX8850S-C27YL BZX8850S-C2V0YL BZX8850S-C2V2YL BZX8850S-C2V4YL BZX8850S-C2V7YL BZX8850S-C30YL BZX8850S-C33YL BZX8850S-C36YL BZX8850S-C39YL BZX8850S-C3V0YL BZX8850S-C3V3YL BZX8850S-C3V6YL BZX8850S-C3V9YL BZX8850S-C43YL BZX8850S-C47YL BZX8850S-C4V3YL BZX8850S-C4V7YL BZX8850S-C51YL BZX8850S-C56YL BZX8850S-C5V1YL BZX8850S-C5V6YL BZX8850S-C62YL BZX8850S-C68YL BZX8850S-C6V2YL BZX8850S-C6V8YL BZX8850S-C75YL BZX8850S-C7V5YL BZX8850S-C8V2YL BZX8850S-C9V1YL
文件文字版本
Nexperia BZX8850S series Low-current voltage regulator diodes 12. Soldering Footprint information for reflow soldering of DFN1006BD-2 package SOD882BD

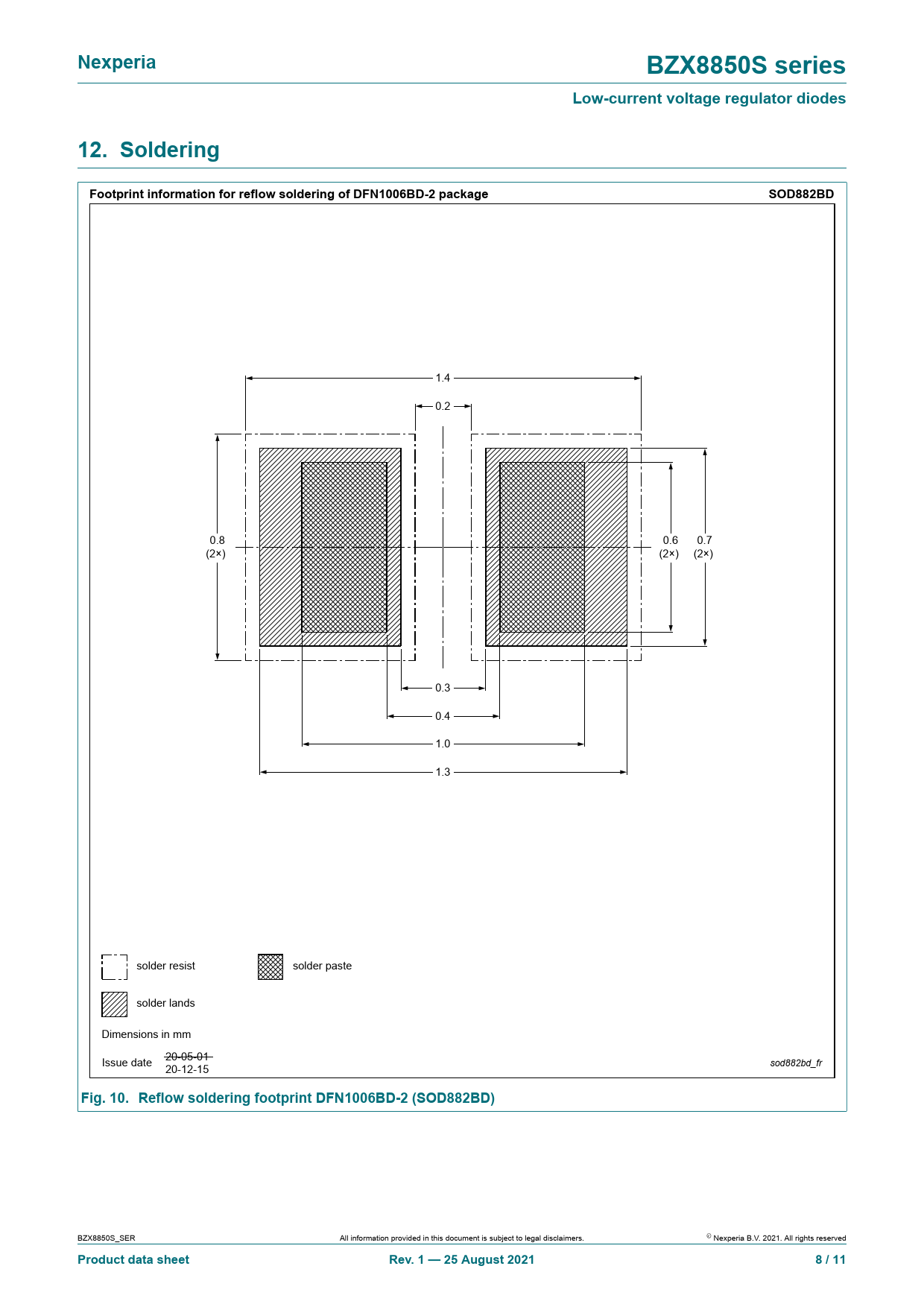

1.4 0.2 0.8 0.6 0.7 (2×) (2×) (2×) 0.3 0.4 1.0 1.3 solder resist solder paste solder lands Dimensions in mm Issue date 20-05-01 sod882bd_fr 20-12-15
Fig. 10. Reflow soldering footprint DFN1006BD-2 (SOD882BD)
BZX8850S_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 1 — 25 August 2021 8 / 11
