Datasheet PDTC143Z (Nexperia) - 7
| 制造商 | Nexperia |
| 描述 | NPN resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 47 kΩ |
| 页数 / 页 | 17 / 7 — Nexperia. PDTC143Z series. NPN resistor-equipped transistors; R1 = 4.7 k. … |
| 修订版 | 07082018 |
| 文件格式/大小 | PDF / 1.6 Mb |
| 文件语言 | 英语 |
Nexperia. PDTC143Z series. NPN resistor-equipped transistors; R1 = 4.7 k. , R2 = 47 k. 7. Characteristics. Table 8. Characteristics
该数据表的模型线
文件文字版本
link to page 7

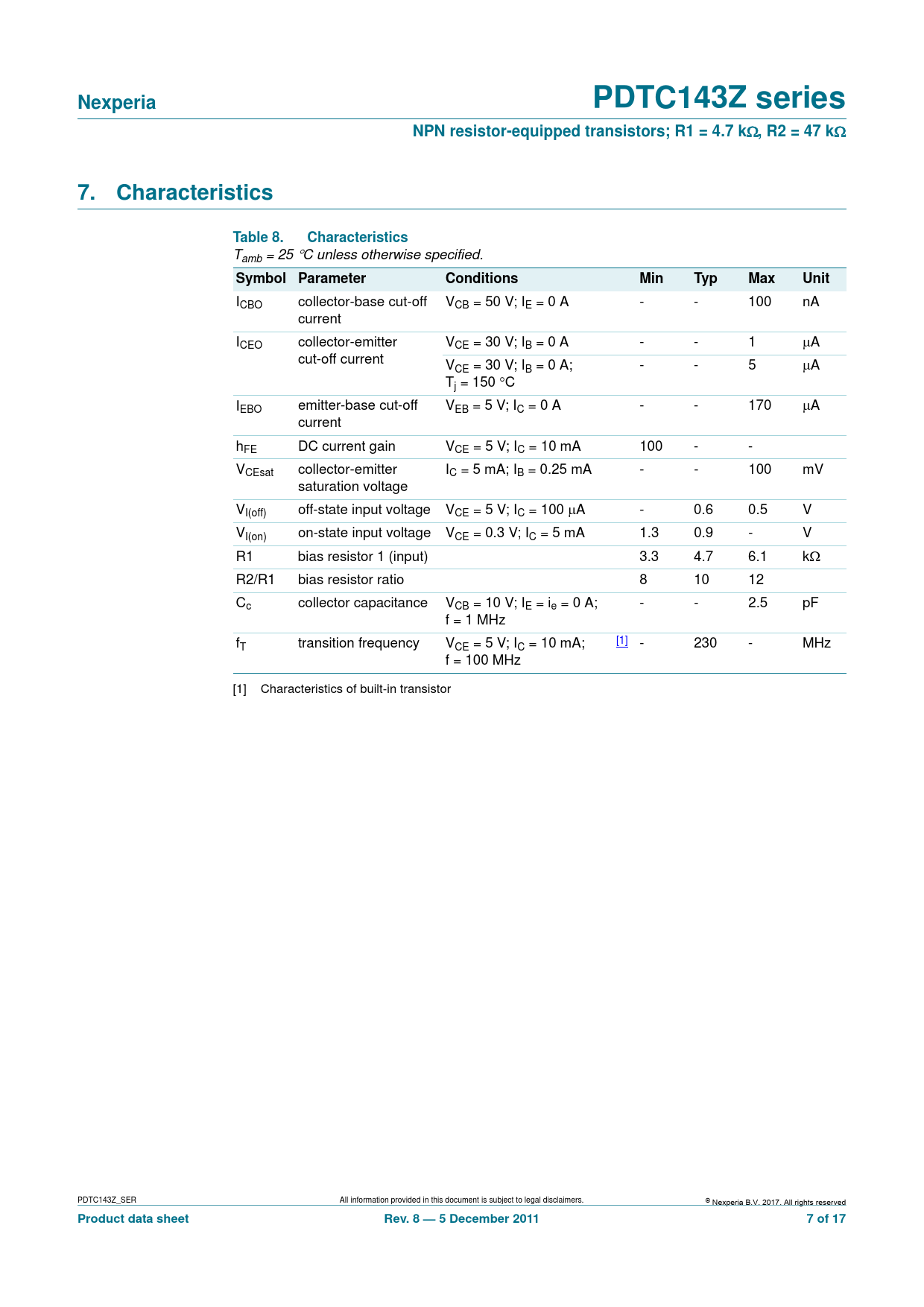

Nexperia PDTC143Z series NPN resistor-equipped transistors; R1 = 4.7 k , R2 = 47 k 7. Characteristics Table 8. Characteristics
Tamb = 25 C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
ICBO collector-base cut-off VCB = 50 V; IE = 0 A - - 100 nA current ICEO collector-emitter VCE = 30 V; IB = 0 A - - 1 A cut-off current VCE = 30 V; IB = 0 A; - - 5 A Tj = 150 C IEBO emitter-base cut-off VEB = 5 V; IC = 0 A - - 170 A current hFE DC current gain VCE = 5 V; IC = 10 mA 100 - - VCEsat collector-emitter IC = 5 mA; IB = 0.25 mA - - 100 mV saturation voltage VI(off) off-state input voltage VCE = 5 V; IC = 100 A - 0.6 0.5 V VI(on) on-state input voltage VCE = 0.3 V; IC = 5 mA 1.3 0.9 - V R1 bias resistor 1 (input) 3.3 4.7 6.1 k R2/R1 bias resistor ratio 8 10 12 Cc collector capacitance VCB = 10 V; IE = ie = 0 A; - - 2.5 pF f = 1 MHz f [1] T transition frequency VCE = 5 V; IC = 10 mA; - 230 - MHz f = 100 MHz [1] Characteristics of built-in transistor PDTC143Z_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 8 — 5 December 2011 7 of 17
