Datasheet NCP502, NCV502 (ON Semiconductor) - 7
| 制造商 | ON Semiconductor |
| 描述 | Voltage Regulator - CMOS Low Iq, Low-Dropout 80 mA |
| 页数 / 页 | 10 / 7 — NCP502, NCV502. ORDERING INFORMATION. Nominal. Device. Output Voltage. … |
| 修订版 | 21 |
| 文件格式/大小 | PDF / 285 Kb |
| 文件语言 | 英语 |
NCP502, NCV502. ORDERING INFORMATION. Nominal. Device. Output Voltage. Marking. Package. Shipping. www.onsemi.com
该数据表的模型线
- NCP502SN28T1G NCP502SN29T1G NCP502SN30T1G NCP502SN31T1G NCP502SN33T1G NCP502SN34T1G NCP502SN35T1G NCP502SN36T1G NCP502SN37T1G NCP502SN50T1G NCP502SQ15T2G NCP502SQ18T2G NCP502SQ25T2G NCP502SQ27T2G NCP502SQ28T2G NCP502SQ29T2G NCP502SQ30T2G NCP502SQ31T2G NCP502SQ33T2G NCP502SQ34T2G NCP502SQ35T2G NCP502SQ36T2G NCP502SQ37T2G NCP502SQ50T2G NCV502SN33T1G NCV502SN50T1G
文件文字版本
NCP502, NCV502

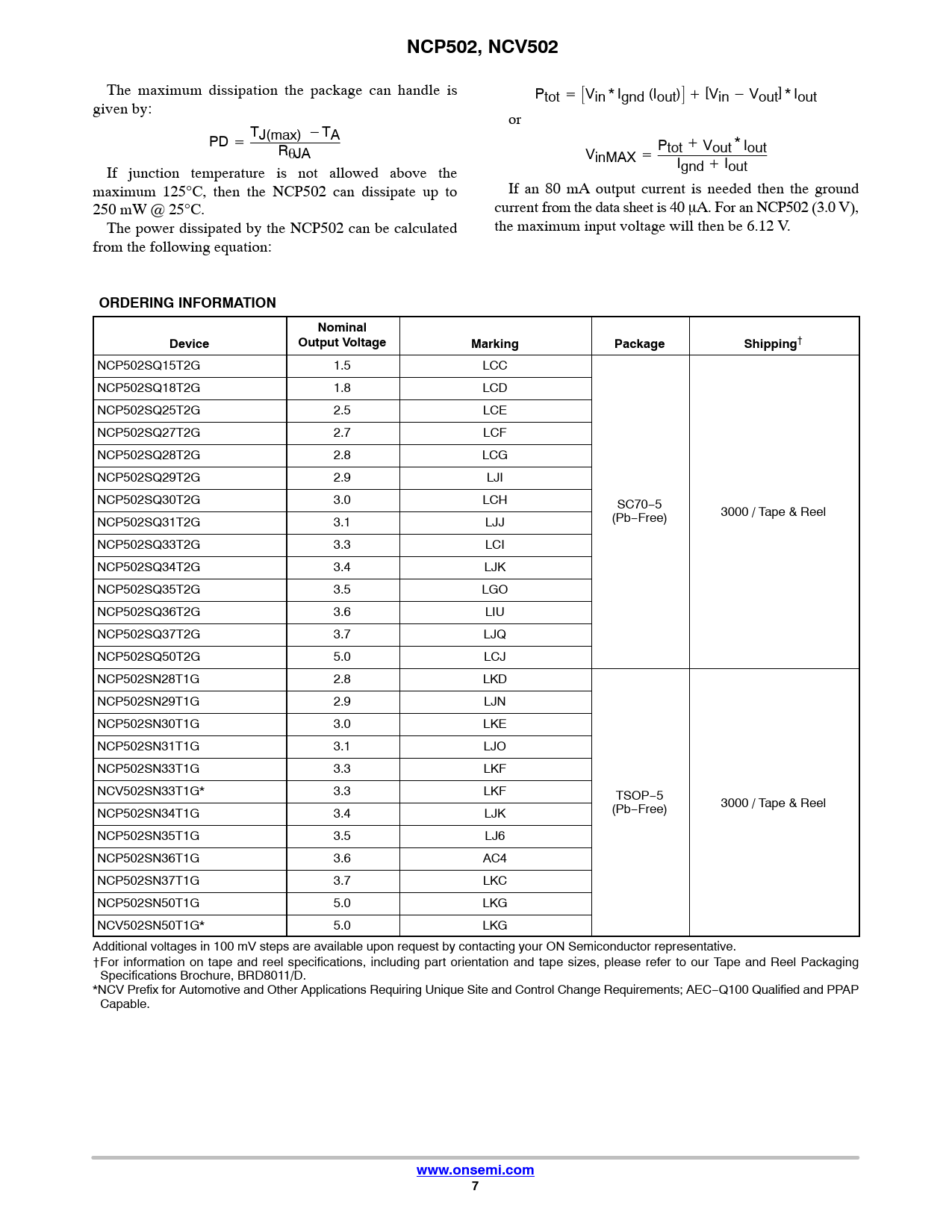

The maximum dissipation the package can handle is Ptot + ƪVin * Ignd (Iout)ƫ ) [Vin * Vout] * Iout given by: or T PD + J(max) *TA RJA P V tot ) Vout * Iout inMAX + If junction temperature is not allowed above the Ignd ) Iout maximum 125°C, then the NCP502 can dissipate up to If an 80 mA output current is needed then the ground 250 mW @ 25°C. current from the data sheet is 40A. For an NCP502 (3.0 V), The power dissipated by the NCP502 can be calculated the maximum input voltage will then be 6.12 V. from the following equation:
ORDERING INFORMATION Nominal Device Output Voltage Marking Package Shipping
† NCP502SQ15T2G 1.5 LCC NCP502SQ18T2G 1.8 LCD NCP502SQ25T2G 2.5 LCE NCP502SQ27T2G 2.7 LCF NCP502SQ28T2G 2.8 LCG NCP502SQ29T2G 2.9 LJI NCP502SQ30T2G 3.0 LCH SC70−5 (Pb−Free) 3000 / Tape & Reel NCP502SQ31T2G 3.1 LJJ NCP502SQ33T2G 3.3 LCI NCP502SQ34T2G 3.4 LJK NCP502SQ35T2G 3.5 LGO NCP502SQ36T2G 3.6 LIU NCP502SQ37T2G 3.7 LJQ NCP502SQ50T2G 5.0 LCJ NCP502SN28T1G 2.8 LKD NCP502SN29T1G 2.9 LJN NCP502SN30T1G 3.0 LKE NCP502SN31T1G 3.1 LJO NCP502SN33T1G 3.3 LKF NCV502SN33T1G* 3.3 LKF TSOP−5 (Pb−Free) 3000 / Tape & Reel NCP502SN34T1G 3.4 LJK NCP502SN35T1G 3.5 LJ6 NCP502SN36T1G 3.6 AC4 NCP502SN37T1G 3.7 LKC NCP502SN50T1G 5.0 LKG NCV502SN50T1G* 5.0 LKG Additional voltages in 100 mV steps are available upon request by contacting your ON Semiconductor representative. †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.
www.onsemi.com 7
