Datasheet STGAP2HD (STMicroelectronics) - 5
| 制造商 | STMicroelectronics |
| 描述 | Galvanically isolated 4 A dual gate driver |
| 页数 / 页 | 23 / 5 — STGAP2HD. Recommended operating conditions. 3.3. Table 4. Recommended … |
| 文件格式/大小 | PDF / 815 Kb |
| 文件语言 | 英语 |
STGAP2HD. Recommended operating conditions. 3.3. Table 4. Recommended operating conditions. Symbol. Parameter. Test conditions. Min
该数据表的模型线
文件文字版本
link to page 5 link to page 5

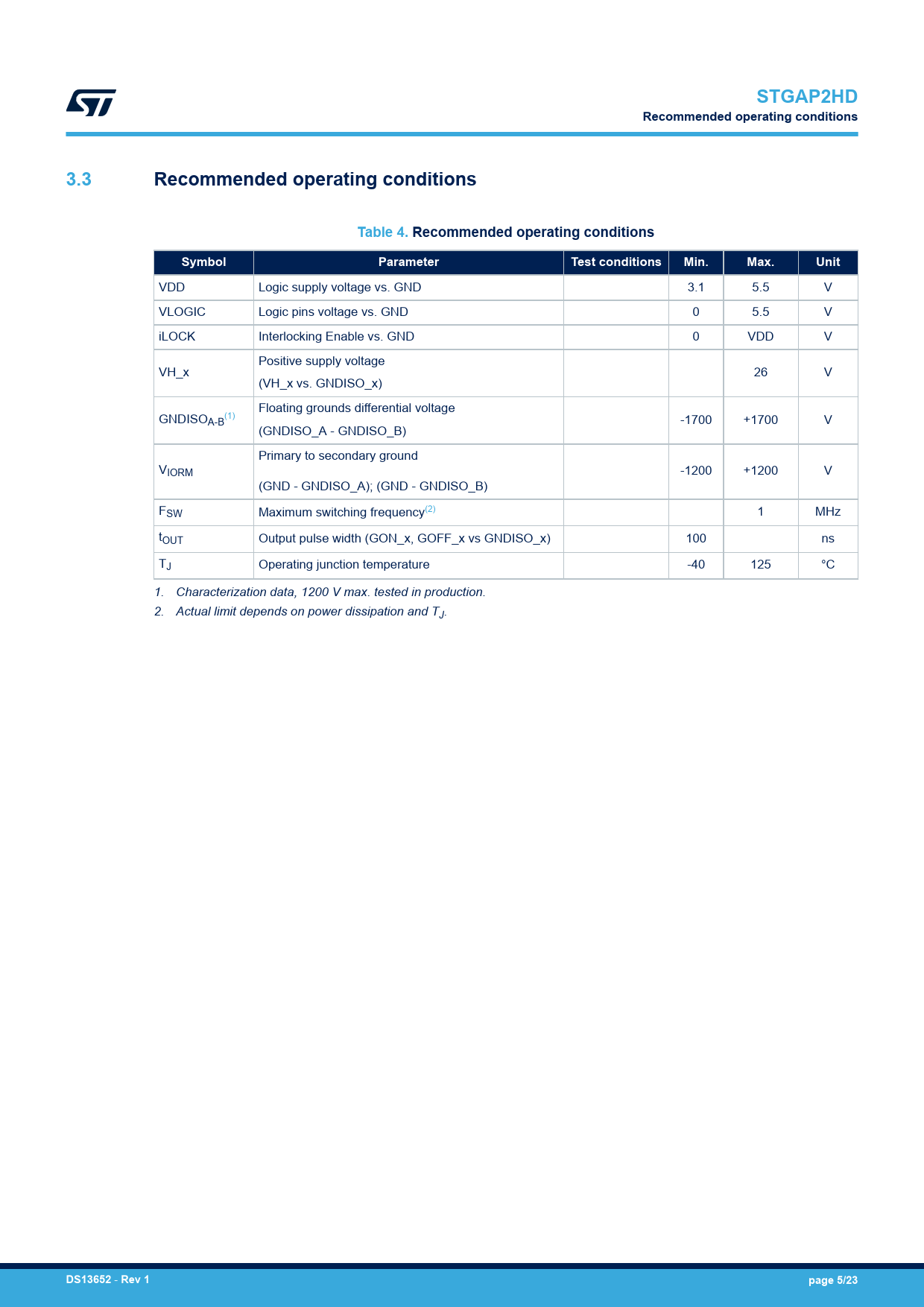

STGAP2HD Recommended operating conditions 3.3 Recommended operating conditions Table 4. Recommended operating conditions Symbol Parameter Test conditions Min. Max. Unit
VDD Logic supply voltage vs. GND 3.1 5.5 V VLOGIC Logic pins voltage vs. GND 0 5.5 V iLOCK Interlocking Enable vs. GND 0 VDD V Positive supply voltage VH_x 26 V (VH_x vs. GNDISO_x) Floating grounds differential voltage GNDISO (1) A-B -1700 +1700 V (GNDISO_A - GNDISO_B) Primary to secondary ground VIORM -1200 +1200 V (GND - GNDISO_A); (GND - GNDISO_B) FSW Maximum switching frequency(2) 1 MHz tOUT Output pulse width (GON_x, GOFF_x vs GNDISO_x) 100 ns TJ Operating junction temperature -40 125 °C 1. Characterization data, 1200 V max. tested in production. 2. Actual limit depends on power dissipation and TJ.
