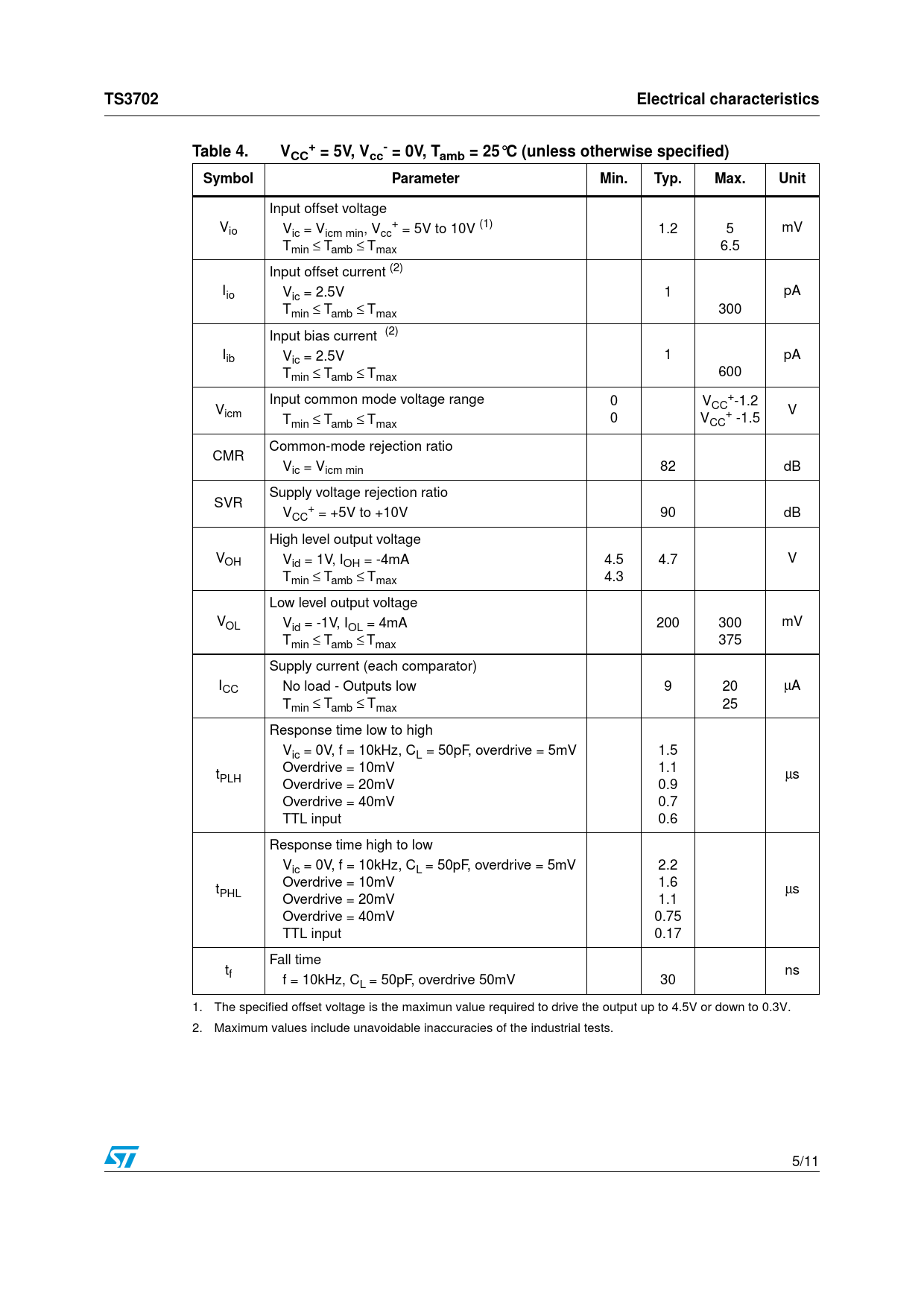

TS3702 Electrical characteristics Table 4. V + - CC = 5V, Vcc = 0V, Tamb = 25°C (unless otherwise specified) Symbol Parameter Min. Typ. Max. Unit
Input offset voltage V + io V mV ic = Vicm min, Vcc = 5V to 10V (1) 1.2 5 Tmin ≤ Tamb ≤ Tmax 6.5 Input offset current (2) Iio V pA ic = 2.5V 1 Tmin ≤ Tamb ≤ Tmax 300 Input bias current (2) Iib V 1 pA ic = 2.5V T 600 min ≤ Tamb ≤ Tmax Input common mode voltage range 0 V +-1.2 V CC icm V T 0 V + -1.5 min ≤ Tamb ≤ Tmax CC Common-mode rejection ratio CMR Vic = Vicm min 82 dB Supply voltage rejection ratio SVR V + CC = +5V to +10V 90 dB High level output voltage VOH Vid = 1V, IOH = -4mA 4.5 4.7 V Tmin ≤ Tamb ≤ Tmax 4.3 Low level output voltage VOL V mV id = -1V, IOL = 4mA 200 300 Tmin ≤ Tamb ≤ Tmax 375 Supply current (each comparator) ICC No load - Outputs low 9 20 μA Tmin ≤ Tamb ≤ Tmax 25 Response time low to high Vic = 0V, f = 10kHz, CL = 50pF, overdrive = 5mV 1.5 Overdrive = 10mV 1.1 tPLH μs Overdrive = 20mV 0.9 Overdrive = 40mV 0.7 TTL input 0.6 Response time high to low Vic = 0V, f = 10kHz, CL = 50pF, overdrive = 5mV 2.2 Overdrive = 10mV 1.6 tPHL μs Overdrive = 20mV 1.1 Overdrive = 40mV 0.75 TTL input 0.17 Fall time tf ns f = 10kHz, CL = 50pF, overdrive 50mV 30 1. The specified offset voltage is the maximun value required to drive the output up to 4.5V or down to 0.3V. 2. Maximum values include unavoidable inaccuracies of the industrial tests. 5/11 Document Outline 1 Schematic diagram Figure 1. Schematic diagram (for 1/2 TS3702) 2 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Table 2. Operating conditions 3 Electrical characteristics Table 3. VCC+ = 3V, Vcc- = 0V, Tamb = 25˚C (unless otherwise specified) Table 4. VCC+ = 5V, Vcc- = 0V, Tamb = 25˚C (unless otherwise specified) 4 Package information 4.1 DIP8 package mechanical data 4.2 SO8 package mechanical data 4.3 TSSOP8 package mechanical data 5 Ordering information Table 5. Order codes 6 Revision history
