Datasheet TCK128BG (Toshiba) - 10
| 制造商 | Toshiba |
| 描述 | 0.08 nA Ultra small IQ 1.0 A Load Switch IC in Ultra Small Package |
| 页数 / 页 | 13 / 10 — TCK128BG. tOFF Response |
| 文件格式/大小 | PDF / 819 Kb |
| 文件语言 | 英语 |
TCK128BG. tOFF Response
该数据表的模型线
文件文字版本

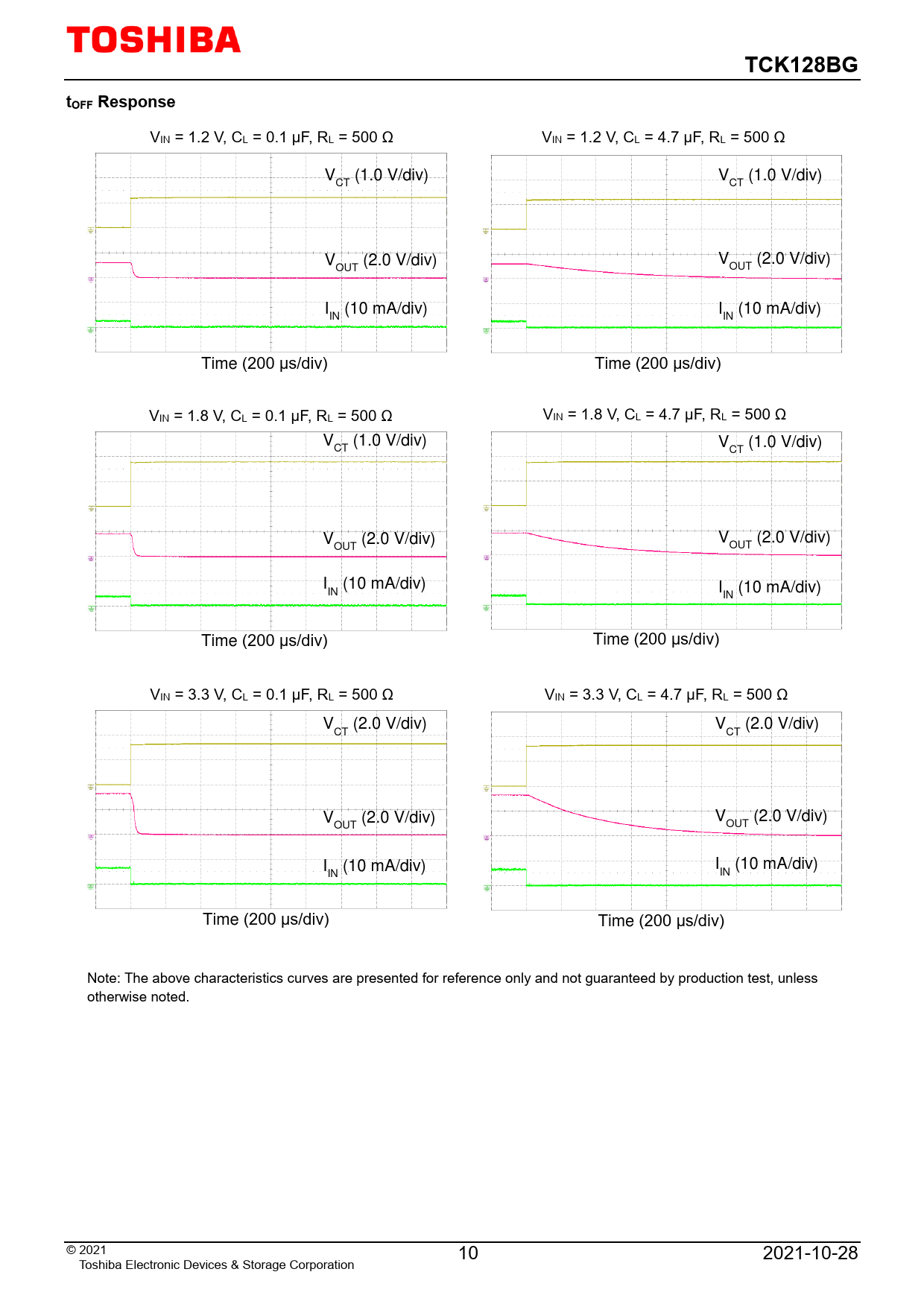

TCK128BG tOFF Response
VIN = 1.2 V, CL = 0.1 μF, RL = 500 Ω VIN = 1.2 V, CL = 4.7 μF, RL = 500 Ω V V CT (1.0 V/div) CT (1.0 V/div) V V OUT (2.0 V/div) OUT (2.0 V/div) I I IN (10 mA/div) IN (10 mA/div) Time (200 μs/div) Time (200 μs/div) VIN = 1.8 V, CL = 0.1 μF, RL = 500 Ω VIN = 1.8 V, CL = 4.7 μF, RL = 500 Ω V V CT (1.0 V/div) CT (1.0 V/div) V V OUT (2.0 V/div) OUT (2.0 V/div) IIN (10 mA/div) IIN (10 mA/div) Time (200 μs/div) Time (200 μs/div) VIN = 3.3 V, CL = 0.1 μF, RL = 500 Ω VIN = 3.3 V, CL = 4.7 μF, RL = 500 Ω V V CT (2.0 V/div) CT (2.0 V/div) V V OUT (2.0 V/div) OUT (2.0 V/div) I I IN (10 mA/div) IN (10 mA/div) Time (200 μs/div) Time (200 μs/div) Note: The above characteristics curves are presented for reference only and not guaranteed by production test, unless otherwise noted. © 2021 10 2021-10-28 Toshiba Electronic Devices & Storage Corporation
