Datasheet 2N2906, 2N2907, 2N2906A, 2N2907A (Central Semiconductor) - 2
| 制造商 | Central Semiconductor |
| 描述 | PNP SILICON TRANSISTOR |
| 页数 / 页 | 4 / 2 — 2N2906 2N2906A 2N2907 2N2907A. PNP SILICON TRANSISTOR. ELECTRICAL … |
| 文件格式/大小 | PDF / 687 Kb |
| 文件语言 | 英语 |
2N2906 2N2906A 2N2907 2N2907A. PNP SILICON TRANSISTOR. ELECTRICAL CHARACTERISTICS - Continued:. 2N2906. 2N2907. 2N2906A. 2N2907A
该数据表的模型线
文件文字版本

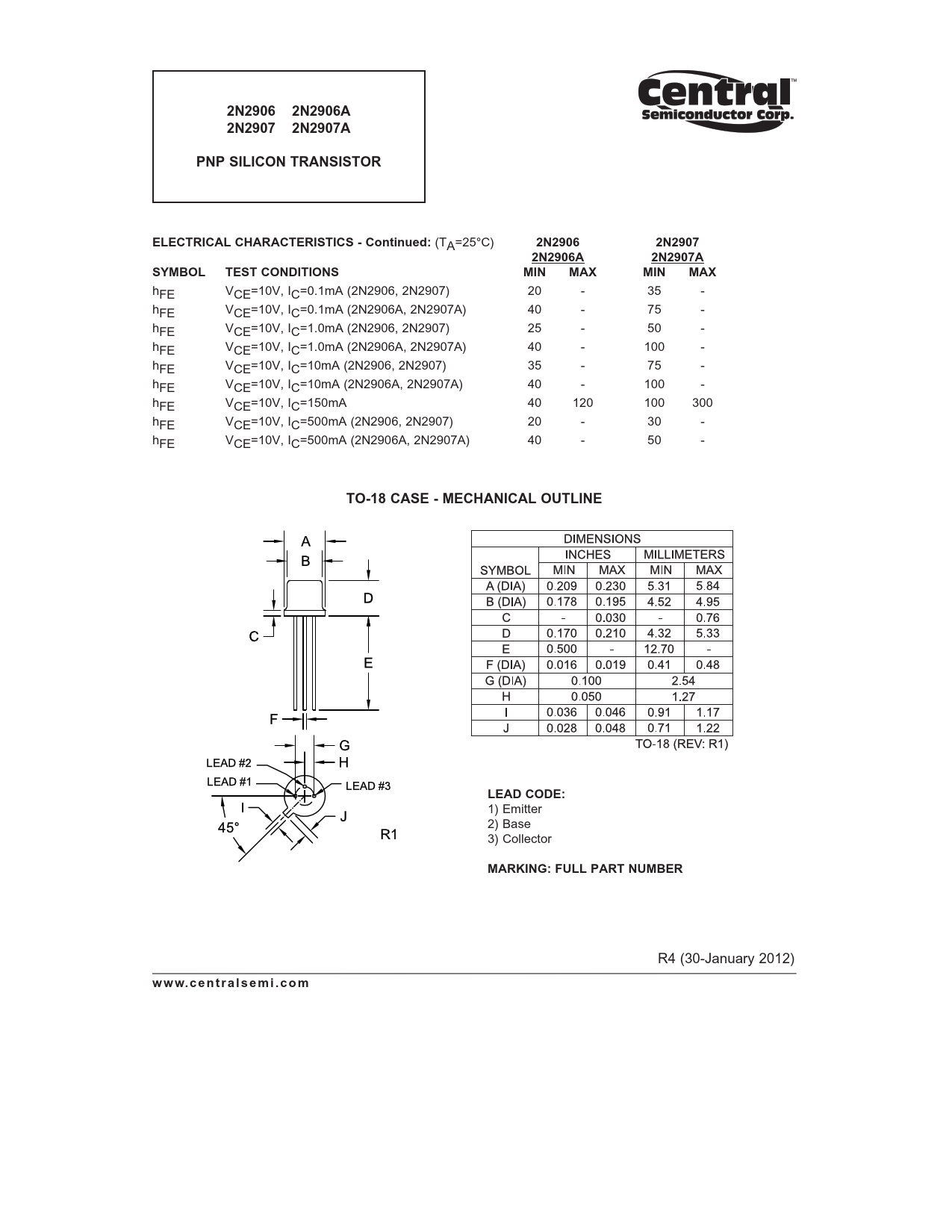

2N2906 2N2906A 2N2907 2N2907A PNP SILICON TRANSISTOR ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C)
2N2906 2N2907 2N2906A 2N2907A SYMBOL TEST CONDITIONS MIN MAX MIN MAX
hFE VCE=10V, IC=0.1mA (2N2906, 2N2907) 20 - 35 - hFE VCE=10V, IC=0.1mA (2N2906A, 2N2907A) 40 - 75 - hFE VCE=10V, IC=1.0mA (2N2906, 2N2907) 25 - 50 - hFE VCE=10V, IC=1.0mA (2N2906A, 2N2907A) 40 - 100 - hFE VCE=10V, IC=10mA (2N2906, 2N2907) 35 - 75 - hFE VCE=10V, IC=10mA (2N2906A, 2N2907A) 40 - 100 - hFE VCE=10V, IC=150mA 40 120 100 300 hFE VCE=10V, IC=500mA (2N2906, 2N2907) 20 - 30 - hFE VCE=10V, IC=500mA (2N2906A, 2N2907A) 40 - 50 -
TO-18 CASE - MECHANICAL OUTLINE LEAD CODE:
1) Emitter 2) Base 3) Collector
MARKING: FULL PART NUMBER
