Datasheet 1N4933, 1N4934, 1N4935, 1N4936, 1N4937 (ON Semiconductor) - 3
| 制造商 | ON Semiconductor |
| 描述 | Axial-Lead Glass Passivated Fast Recovery Rectifiers |
| 页数 / 页 | 5 / 3 — 1N4933, 1N4934, 1N4935, 1N4936, 1N4937. Figure 3. Typical Capacitance. … |
| 修订版 | 13 |
| 文件格式/大小 | PDF / 157 Kb |
| 文件语言 | 英语 |

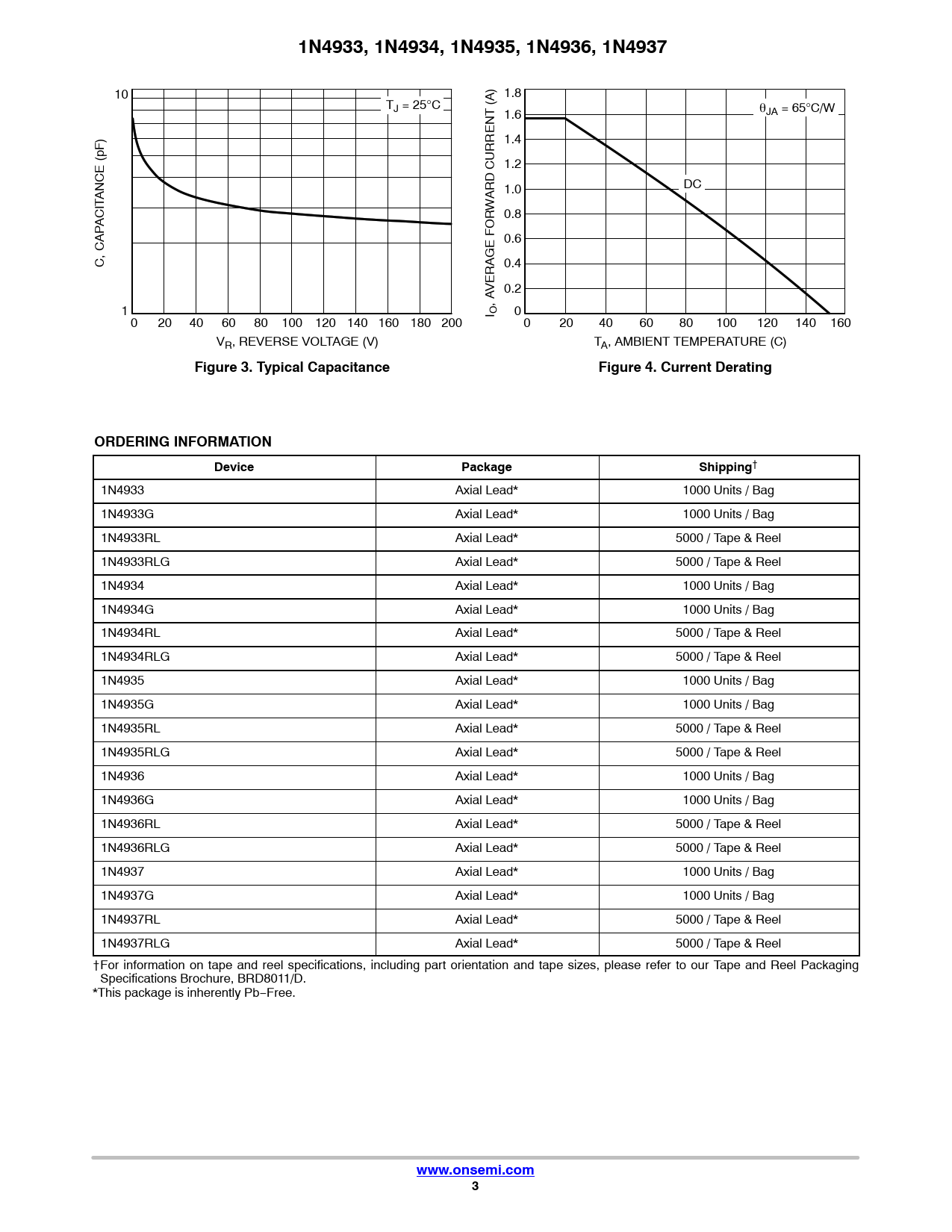

1N4933, 1N4934, 1N4935, 1N4936, 1N4937. Figure 3. Typical Capacitance. Figure 4. Current Derating. ORDERING INFORMATION. Device
该数据表的模型线
文件文字版本
1N4933, 1N4934, 1N4935, 1N4936, 1N4937
10 1.8 TJ = 25°C qJA = 65°C/W 1.6 1.4 1.2 DC ANCE (pF) ARD CURRENT (A) 1.0 W 0.8 ACIT 0.6 C, CAP 0.4 VERAGE FOR 0.2 , A 1 I O 0 0 20 40 60 80 100 120 140 160 180 200 0 20 40 60 80 100 120 140 160 VR, REVERSE VOLTAGE (V) TA, AMBIENT TEMPERATURE (C)
Figure 3. Typical Capacitance Figure 4. Current Derating ORDERING INFORMATION Device Package Shipping
† 1N4933 Axial Lead* 1000 Units / Bag 1N4933G Axial Lead* 1000 Units / Bag 1N4933RL Axial Lead* 5000 / Tape & Reel 1N4933RLG Axial Lead* 5000 / Tape & Reel 1N4934 Axial Lead* 1000 Units / Bag 1N4934G Axial Lead* 1000 Units / Bag 1N4934RL Axial Lead* 5000 / Tape & Reel 1N4934RLG Axial Lead* 5000 / Tape & Reel 1N4935 Axial Lead* 1000 Units / Bag 1N4935G Axial Lead* 1000 Units / Bag 1N4935RL Axial Lead* 5000 / Tape & Reel 1N4935RLG Axial Lead* 5000 / Tape & Reel 1N4936 Axial Lead* 1000 Units / Bag 1N4936G Axial Lead* 1000 Units / Bag 1N4936RL Axial Lead* 5000 / Tape & Reel 1N4936RLG Axial Lead* 5000 / Tape & Reel 1N4937 Axial Lead* 1000 Units / Bag 1N4937G Axial Lead* 1000 Units / Bag 1N4937RL Axial Lead* 5000 / Tape & Reel 1N4937RLG Axial Lead* 5000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *This package is inherently Pb−Free.
www.onsemi.com 3
10 1.8 TJ = 25°C qJA = 65°C/W 1.6 1.4 1.2 DC ANCE (pF) ARD CURRENT (A) 1.0 W 0.8 ACIT 0.6 C, CAP 0.4 VERAGE FOR 0.2 , A 1 I O 0 0 20 40 60 80 100 120 140 160 180 200 0 20 40 60 80 100 120 140 160 VR, REVERSE VOLTAGE (V) TA, AMBIENT TEMPERATURE (C)
Figure 3. Typical Capacitance Figure 4. Current Derating ORDERING INFORMATION Device Package Shipping
† 1N4933 Axial Lead* 1000 Units / Bag 1N4933G Axial Lead* 1000 Units / Bag 1N4933RL Axial Lead* 5000 / Tape & Reel 1N4933RLG Axial Lead* 5000 / Tape & Reel 1N4934 Axial Lead* 1000 Units / Bag 1N4934G Axial Lead* 1000 Units / Bag 1N4934RL Axial Lead* 5000 / Tape & Reel 1N4934RLG Axial Lead* 5000 / Tape & Reel 1N4935 Axial Lead* 1000 Units / Bag 1N4935G Axial Lead* 1000 Units / Bag 1N4935RL Axial Lead* 5000 / Tape & Reel 1N4935RLG Axial Lead* 5000 / Tape & Reel 1N4936 Axial Lead* 1000 Units / Bag 1N4936G Axial Lead* 1000 Units / Bag 1N4936RL Axial Lead* 5000 / Tape & Reel 1N4936RLG Axial Lead* 5000 / Tape & Reel 1N4937 Axial Lead* 1000 Units / Bag 1N4937G Axial Lead* 1000 Units / Bag 1N4937RL Axial Lead* 5000 / Tape & Reel 1N4937RLG Axial Lead* 5000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *This package is inherently Pb−Free.
www.onsemi.com 3
