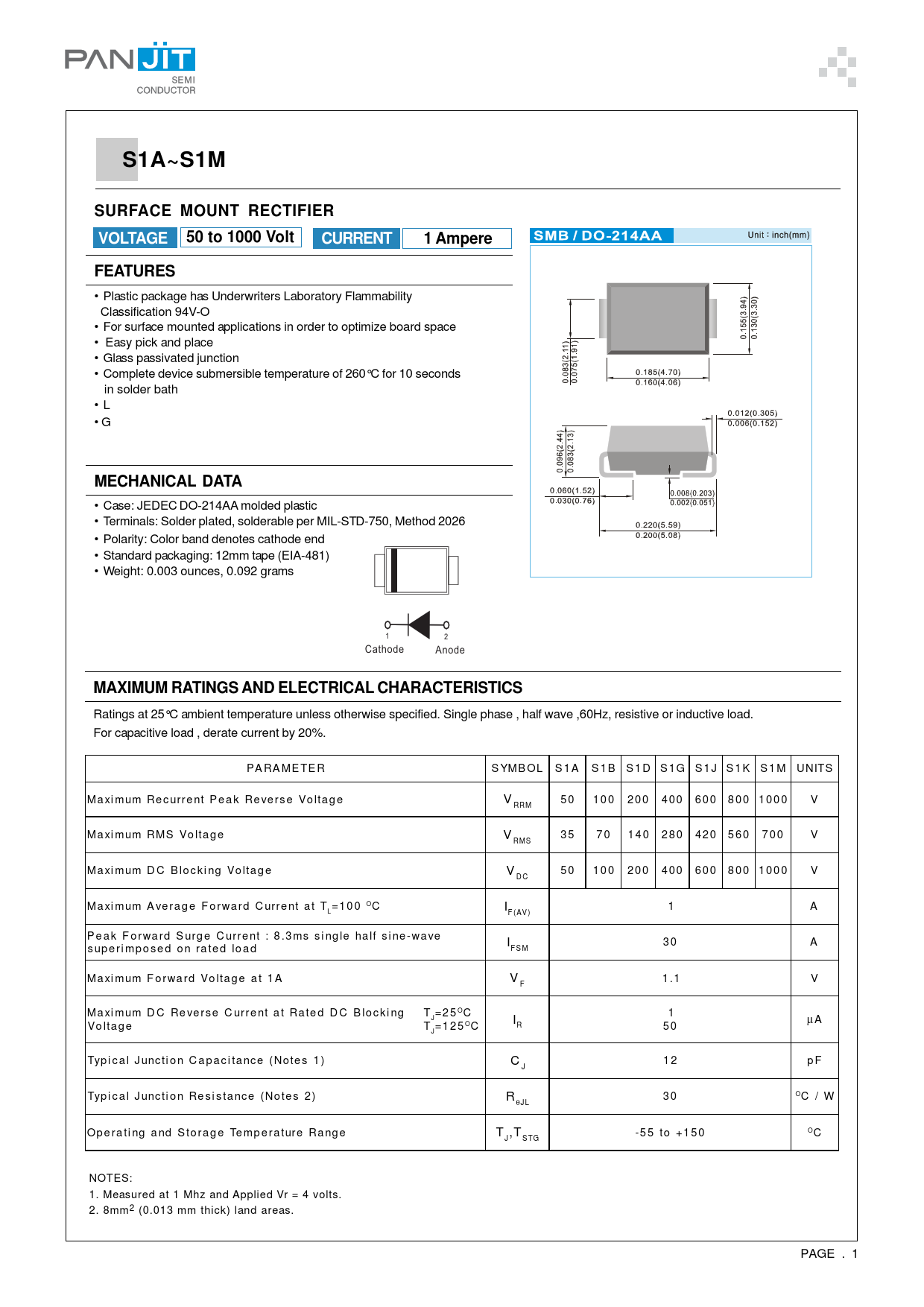

Datasheet S1A, S1B, S1D, S1G, S1J, S1K, S1M (PanJit)

S1A~S1M
SURFACE MOUNT RECTIFIER
VOLTAGE 50 to 1000 Volt CURRENT 1 Ampere FEATURES
• Plastic package has Underwriters Laboratory Flammability
Classification 94V-O
• For surface mounted applications in order to optimize board space
• Easy pick and place
• Glass passivated junction
• Complete device submersible temperature of 260°C for 10 seconds
in solder bath
• Lead free in compliance with EU RoHS 2.0
• Green molding compound as per IEC 61249 standard MECHANICAL DATA
•
•
•
•
• Case: JEDEC DO-214AA molded plastic
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Standard packaging: 12mm tape (EIA-481)
Weight: 0.003 ounces, 0.092 grams 1 Cathode 2 Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified. Single phase , half wave ,60Hz, resistive or inductive load.
For capacitive load , derate current by 20%.
PA RA M E TE R S YM B OL S1A S 1 B S 1 D S 1 G S 1 J S 1 K S 1 M UNITS M a xi m um Re c urr e nt P e a k Re ve r s e Vo lta g e V RRM 50 100 200 400 600 800 1000 V M a xi m um RM S Vo lta g e V RMS 35 70 140 280 420 560 V M a xi m um D C B lo c k i ng Vo lta g e V DC 50 100 200 400 600 800 1000 700 V IF ( AV ) 1 A P e a k F o r wa rd S urg e C urr e nt : 8 .3 m i ng le ha lf s i ne -wa ve
s up e r i m p o s e d o n ra te d lo a d IF S M 30 A M a xi m um F o r wa rd Vo lta g e a t 1 A VF 1 .1 V IR 1
50 μA CJ 12 pF R θJ L 30 T J ,T S TG -5 5 to +1 5 0 M a xi m um A ve r a g e F o r wa r d C urr e nt a t TL =1 0 0 O C M a xi m um D C Re ve r s e C ur r e nt a t Ra te d D C B lo c k i ng
Vo lta g e
Typ i c a l J unc ti o n C a p a c i ta nc e ( No te s 1 )
Typ i c a l J unc ti o n Re s i s ta nc e (No te s 2 )
Op e ra ti ng a nd S to r a g e Te m p e r a tur e Ra ng e T J =2 5 O C
T J =1 2 5 O C O C / W
O C NOTES:
1. Measured at 1 Mhz and Applied Vr = 4 volts.
2. 8mm 2 (0.013 mm thick) land areas. May 2,2018­REV.07 PAGE . 1
