ADG1519. SPECIFICATIONS. Table 1. Parameter. 25°C. –40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本
link to page 11 link to page 4 link to page 11 link to page 4 link to page 4 link to page 4 link to page 4 Data Sheet

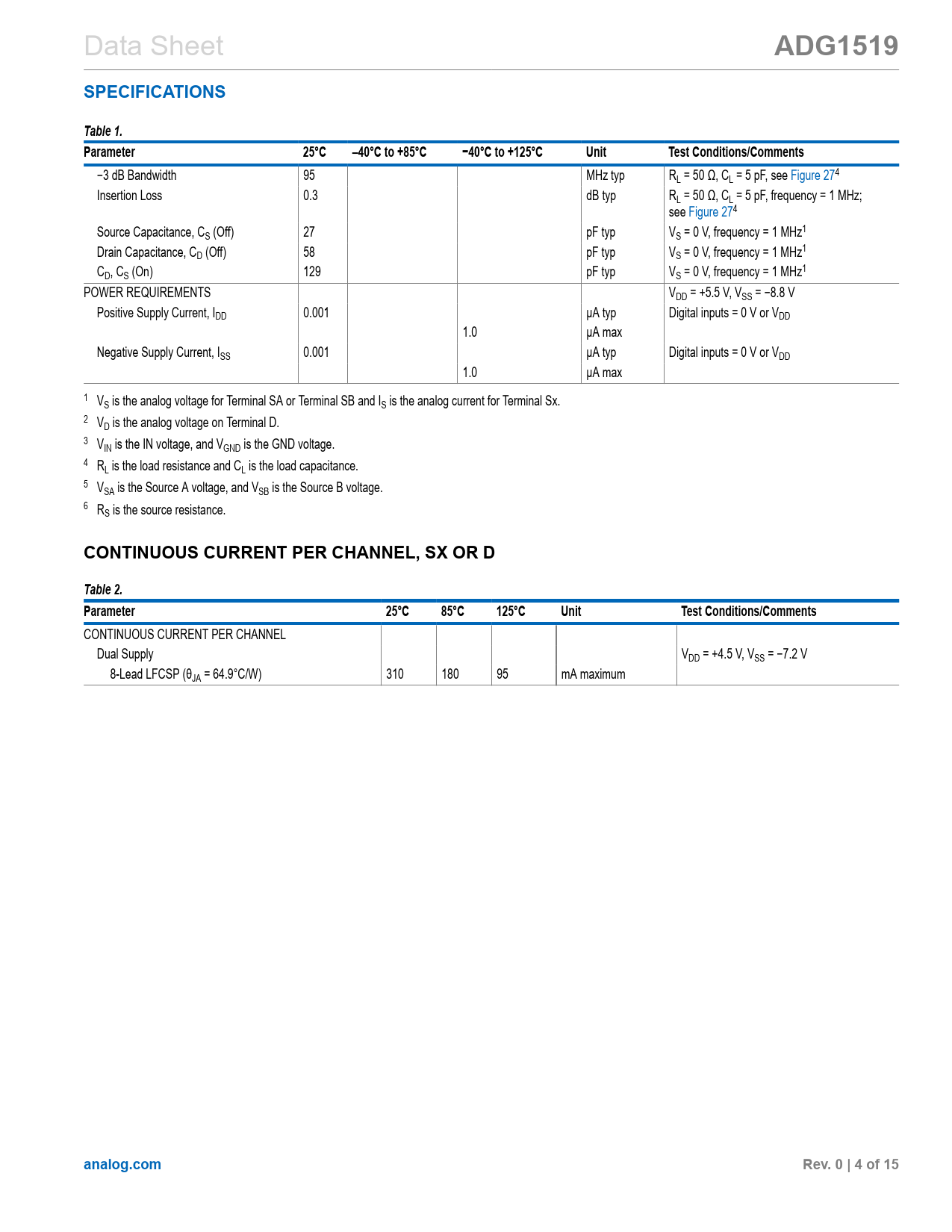

ADG1519 SPECIFICATIONS Table 1. Parameter 25°C –40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
−3 dB Bandwidth 95 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 274 Insertion Loss 0.3 dB typ RL = 50 Ω, CL = 5 pF, frequency = 1 MHz; see Figure 274 Source Capacitance, CS (Off) 27 pF typ VS = 0 V, frequency = 1 MHz1 Drain Capacitance, CD (Off) 58 pF typ VS = 0 V, frequency = 1 MHz1 CD, CS (On) 129 pF typ VS = 0 V, frequency = 1 MHz1 POWER REQUIREMENTS VDD = +5.5 V, VSS = −8.8 V Positive Supply Current, IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max Negative Supply Current, ISS 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max 1 VS is the analog voltage for Terminal SA or Terminal SB and IS is the analog current for Terminal Sx. 2 VD is the analog voltage on Terminal D. 3 VIN is the IN voltage, and VGND is the GND voltage. 4 RL is the load resistance and CL is the load capacitance. 5 VSA is the Source A voltage, and VSB is the Source B voltage. 6 RS is the source resistance.
CONTINUOUS CURRENT PER CHANNEL, SX OR D Table 2. Parameter 25°C 85°C 125°C Unit Test Conditions/Comments
CONTINUOUS CURRENT PER CHANNEL Dual Supply VDD = +4.5 V, VSS = −7.2 V 8-Lead LFCSP (θJA = 64.9°C/W) 310 180 95 mA maximum
analog.com Rev. 0 | 4 of 15
