Datasheet ADG1519 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | 3.8 Ω On-Resistance, SPDT Switch |
| 页数 / 页 | 15 / 6 — ADG1519. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. Figure 2. Pin … |
| 文件格式/大小 | PDF / 673 Kb |
| 文件语言 | 英语 |

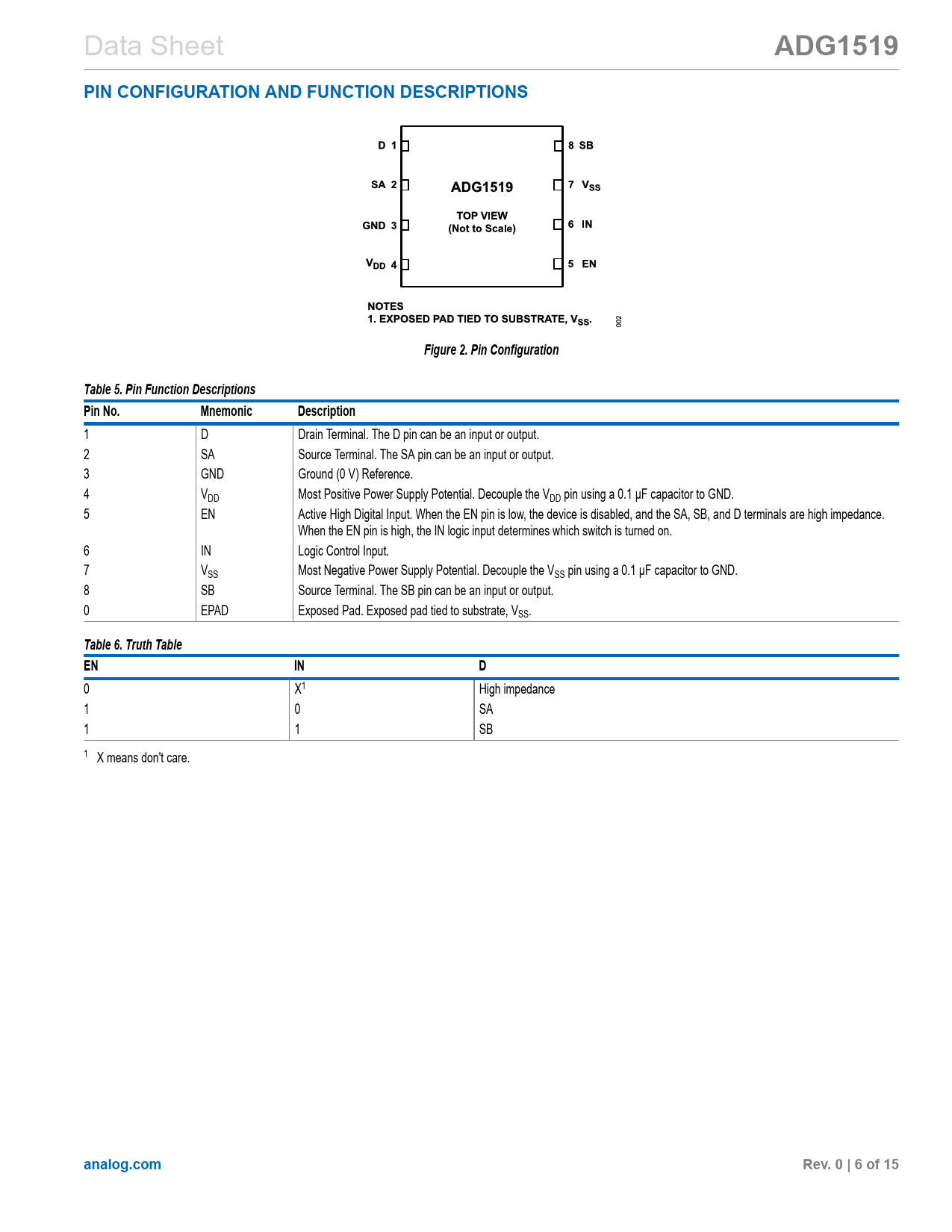

ADG1519. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. Figure 2. Pin Configuration. Table 5. Pin Function Descriptions. Pin No
该数据表的模型线
文件文字版本
link to page 6 Data Sheet
ADG1519 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Figure 2. Pin Configuration Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 D Drain Terminal. The D pin can be an input or output. 2 SA Source Terminal. The SA pin can be an input or output. 3 GND Ground (0 V) Reference. 4 VDD Most Positive Power Supply Potential. Decouple the VDD pin using a 0.1 μF capacitor to GND. 5 EN Active High Digital Input. When the EN pin is low, the device is disabled, and the SA, SB, and D terminals are high impedance. When the EN pin is high, the IN logic input determines which switch is turned on. 6 IN Logic Control Input. 7 VSS Most Negative Power Supply Potential. Decouple the VSS pin using a 0.1 µF capacitor to GND. 8 SB Source Terminal. The SB pin can be an input or output. 0 EPAD Exposed Pad. Exposed pad tied to substrate, VSS.
Table 6. Truth Table EN IN D
0 X1 High impedance 1 0 SA 1 1 SB 1 X means don't care.
analog.com Rev. 0 | 6 of 15
