ADG7421F. SPECIFICATIONS. Table 3. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments. 1.8 V SINGLE SUPPLY

ADG7421F SPECIFICATIONS Table 3 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments 1.8 V SINGLE SUPPLY

该数据表的模型线

文件文字版本

Data Sheet

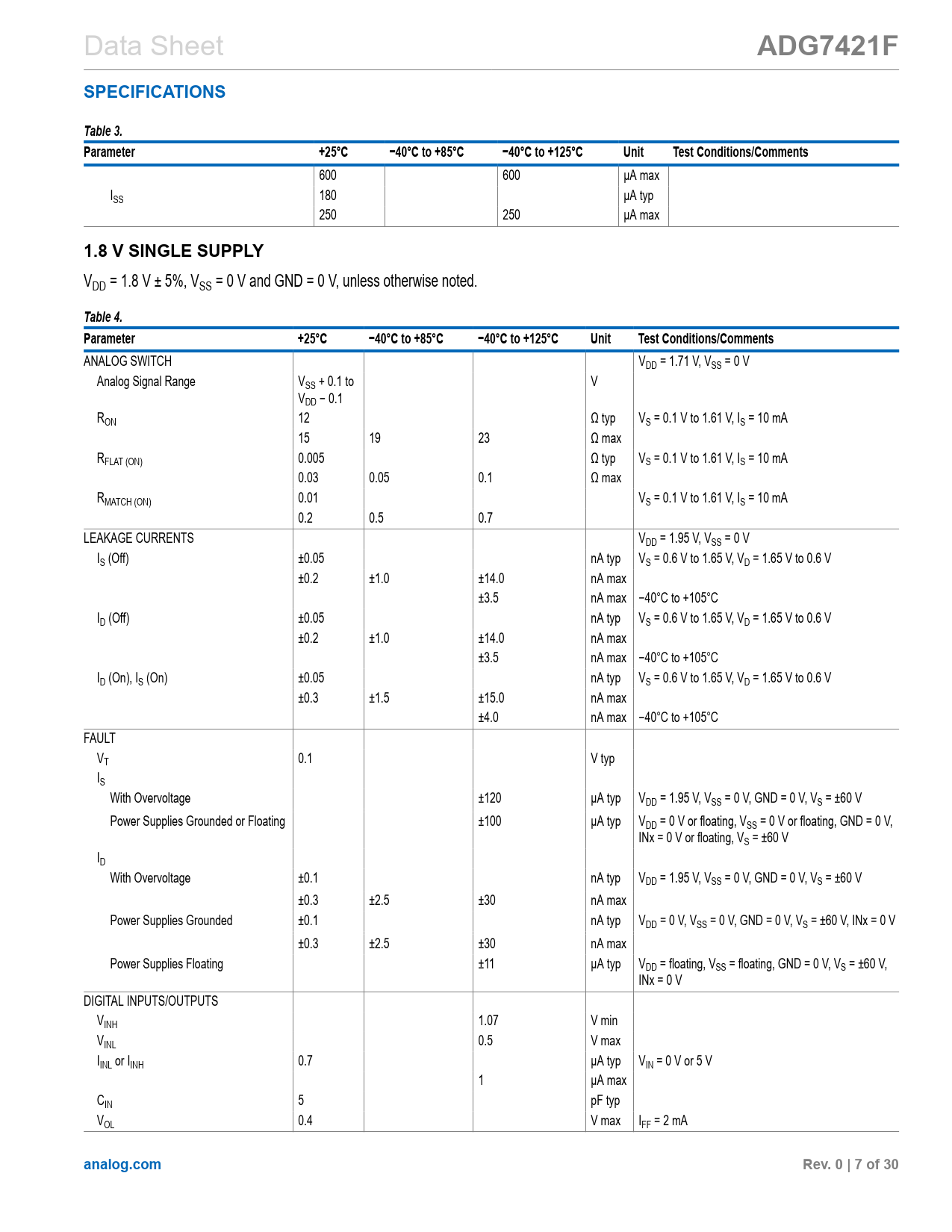

ADG7421F SPECIFICATIONS Table 3. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
600 600 µA max ISS 180 µA typ 250 250 µA max
1.8 V SINGLE SUPPLY
VDD = 1.8 V ± 5%, VSS = 0 V and GND = 0 V, unless otherwise noted.
Table 4. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = 1.71 V, VSS = 0 V Analog Signal Range VSS + 0.1 to V VDD − 0.1 RON 12 Ω typ VS = 0.1 V to 1.61 V, IS = 10 mA 15 19 23 Ω max RFLAT (ON) 0.005 Ω typ VS = 0.1 V to 1.61 V, IS = 10 mA 0.03 0.05 0.1 Ω max RMATCH (ON) 0.01 VS = 0.1 V to 1.61 V, IS = 10 mA 0.2 0.5 0.7 LEAKAGE CURRENTS VDD = 1.95 V, VSS = 0 V IS (Off) ±0.05 nA typ VS = 0.6 V to 1.65 V, VD = 1.65 V to 0.6 V ±0.2 ±1.0 ±14.0 nA max ±3.5 nA max −40°C to +105°C ID (Off) ±0.05 nA typ VS = 0.6 V to 1.65 V, VD = 1.65 V to 0.6 V ±0.2 ±1.0 ±14.0 nA max ±3.5 nA max −40°C to +105°C ID (On), IS (On) ±0.05 nA typ VS = 0.6 V to 1.65 V, VD = 1.65 V to 0.6 V ±0.3 ±1.5 ±15.0 nA max ±4.0 nA max −40°C to +105°C FAULT VT 0.1 V typ IS With Overvoltage ±120 µA typ VDD = 1.95 V, VSS = 0 V, GND = 0 V, VS = ±60 V Power Supplies Grounded or Floating ±100 µA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V, INx = 0 V or floating, VS = ±60 V ID With Overvoltage ±0.1 nA typ VDD = 1.95 V, VSS = 0 V, GND = 0 V, VS = ±60 V ±0.3 ±2.5 ±30 nA max Power Supplies Grounded ±0.1 nA typ VDD = 0 V, VSS = 0 V, GND = 0 V, VS = ±60 V, INx = 0 V ±0.3 ±2.5 ±30 nA max Power Supplies Floating ±11 µA typ VDD = floating, VSS = floating, GND = 0 V, VS = ±60 V, INx = 0 V DIGITAL INPUTS/OUTPUTS VINH 1.07 V min VINL 0.5 V max IINL or IINH 0.7 µA typ VIN = 0 V or 5 V 1 µA max CIN 5 pF typ VOL 0.4 V max IFF = 2 mA
analog.com Rev. 0 | 7 of 30
