Datasheet ADG5401F (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Fault Protection, 6 Ω RON, SPST Switch with 0.6 kΩ Feedback Channel |
| 页数 / 页 | 32 / 6 — ADG5401F. Data Sheet. ±20 V DUAL SUPPLY. Table 3. Parameter. +25°C. −40°C … |
| 文件格式/大小 | PDF / 573 Kb |
| 文件语言 | 英语 |
ADG5401F. Data Sheet. ±20 V DUAL SUPPLY. Table 3. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本

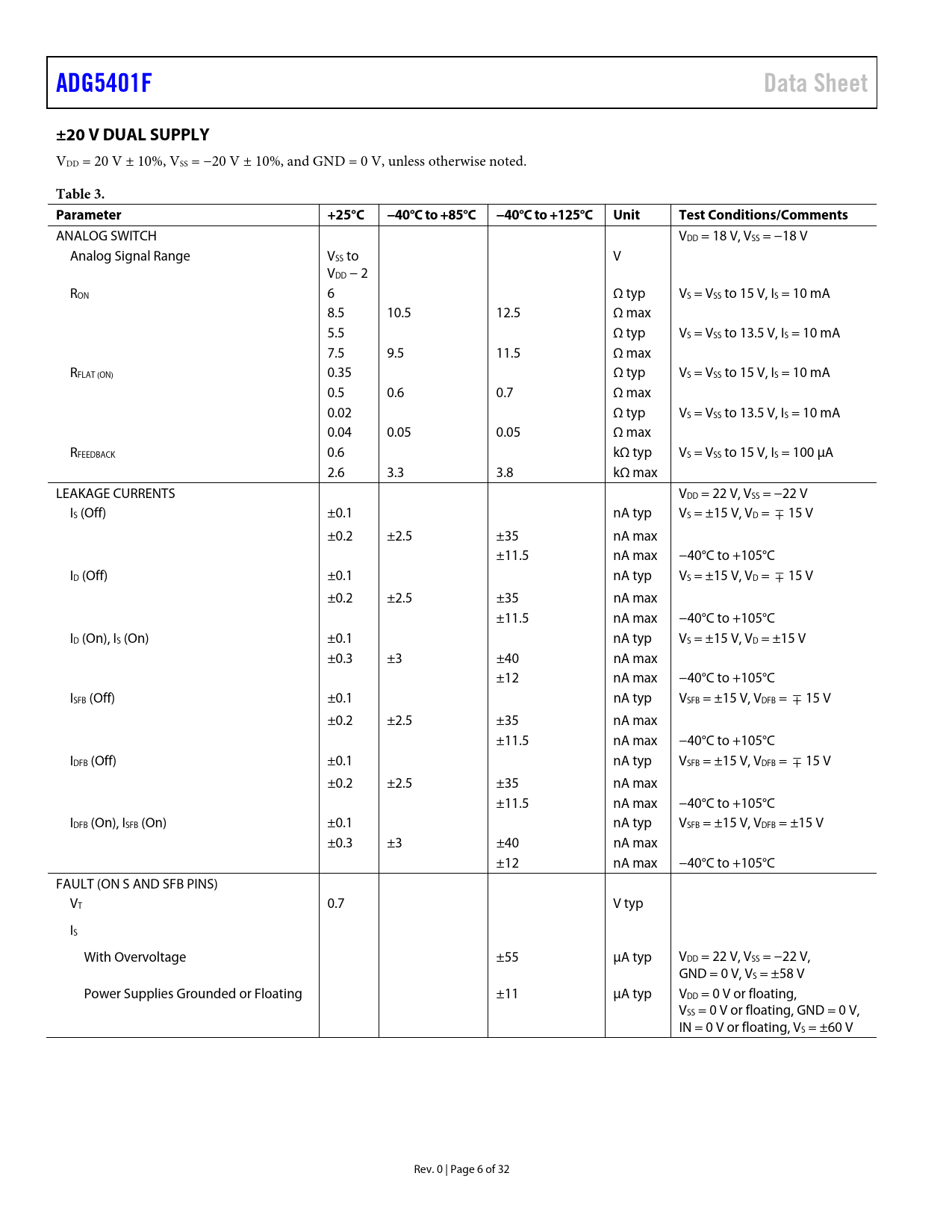

ADG5401F Data Sheet ±20 V DUAL SUPPLY
VDD = 20 V ± 10%, VSS = −20 V ± 10%, and GND = 0 V, unless otherwise noted.
Table 3. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = 18 V, VSS = −18 V Analog Signal Range VSS to V VDD − 2 RON 6 Ω typ VS = VSS to 15 V, IS = 10 mA 8.5 10.5 12.5 Ω max 5.5 Ω typ VS = VSS to 13.5 V, IS = 10 mA 7.5 9.5 11.5 Ω max RFLAT (ON) 0.35 Ω typ VS = VSS to 15 V, IS = 10 mA 0.5 0.6 0.7 Ω max 0.02 Ω typ VS = VSS to 13.5 V, IS = 10 mA 0.04 0.05 0.05 Ω max RFEEDBACK 0.6 kΩ typ VS = VSS to 15 V, IS = 100 µA 2.6 3.3 3.8 kΩ max LEAKAGE CURRENTS VDD = 22 V, VSS = −22 V IS (Off) ±0.1 nA typ VS = ±15 V, VD = 15 V ±0.2 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C ID (Off) ±0.1 nA typ VS = ±15 V, VD = 15 V ±0.2 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C ID (On), IS (On) ±0.1 nA typ VS = ±15 V, VD = ±15 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C ISFB (Off) ±0.1 nA typ VSFB = ±15 V, VDFB = 15 V ±0.2 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C IDFB (Off) ±0.1 nA typ VSFB = ±15 V, VDFB = 15 V ±0.2 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C IDFB (On), ISFB (On) ±0.1 nA typ VSFB = ±15 V, VDFB = ±15 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C FAULT (ON S AND SFB PINS) VT 0.7 V typ IS With Overvoltage ±55 µA typ VDD = 22 V, VSS = −22 V, GND = 0 V, VS = ±58 V Power Supplies Grounded or Floating ±11 µA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V, IN = 0 V or floating, VS = ±60 V Rev. 0 | Page 6 of 32 Document Outline FEATURES APPLICATIONS COMPANION PRODUCTS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADG5401F ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation OVERVOLTAGE FAULT PROTECTION Power-On Protection Power Off Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY RECOMMENDATIONS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE OUTPUT CHANNEL PROTECTION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS AMPLIFIER OR DAC OUTPUT PROTECTION OPEN-LOOP PREVENTION POWER-ON CONDITION SWITCHES IN A KNOWN STATE HIGH VOLTAGE SURGE SUPPRESSION OUTLINE DIMENSIONS ORDERING GUIDE
VDD = 20 V ± 10%, VSS = −20 V ± 10%, and GND = 0 V, unless otherwise noted.
Table 3. Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = 18 V, VSS = −18 V Analog Signal Range VSS to V VDD − 2 RON 6 Ω typ VS = VSS to 15 V, IS = 10 mA 8.5 10.5 12.5 Ω max 5.5 Ω typ VS = VSS to 13.5 V, IS = 10 mA 7.5 9.5 11.5 Ω max RFLAT (ON) 0.35 Ω typ VS = VSS to 15 V, IS = 10 mA 0.5 0.6 0.7 Ω max 0.02 Ω typ VS = VSS to 13.5 V, IS = 10 mA 0.04 0.05 0.05 Ω max RFEEDBACK 0.6 kΩ typ VS = VSS to 15 V, IS = 100 µA 2.6 3.3 3.8 kΩ max LEAKAGE CURRENTS VDD = 22 V, VSS = −22 V IS (Off) ±0.1 nA typ VS = ±15 V, VD = 15 V ±0.2 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C ID (Off) ±0.1 nA typ VS = ±15 V, VD = 15 V ±0.2 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C ID (On), IS (On) ±0.1 nA typ VS = ±15 V, VD = ±15 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C ISFB (Off) ±0.1 nA typ VSFB = ±15 V, VDFB = 15 V ±0.2 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C IDFB (Off) ±0.1 nA typ VSFB = ±15 V, VDFB = 15 V ±0.2 ±2.5 ±35 nA max ±11.5 nA max −40°C to +105°C IDFB (On), ISFB (On) ±0.1 nA typ VSFB = ±15 V, VDFB = ±15 V ±0.3 ±3 ±40 nA max ±12 nA max −40°C to +105°C FAULT (ON S AND SFB PINS) VT 0.7 V typ IS With Overvoltage ±55 µA typ VDD = 22 V, VSS = −22 V, GND = 0 V, VS = ±58 V Power Supplies Grounded or Floating ±11 µA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V, IN = 0 V or floating, VS = ±60 V Rev. 0 | Page 6 of 32 Document Outline FEATURES APPLICATIONS COMPANION PRODUCTS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADG5401F ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation OVERVOLTAGE FAULT PROTECTION Power-On Protection Power Off Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY RECOMMENDATIONS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE OUTPUT CHANNEL PROTECTION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS AMPLIFIER OR DAC OUTPUT PROTECTION OPEN-LOOP PREVENTION POWER-ON CONDITION SWITCHES IN A KNOWN STATE HIGH VOLTAGE SURGE SUPPRESSION OUTLINE DIMENSIONS ORDERING GUIDE
