ADG5298. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. A0 1. 16 A1. A1 16. 15 A2. GND 14. VSS. VSS 3. 14 GND. S1 4 ADG5298 13 V
该数据表的模型线
文件文字版本

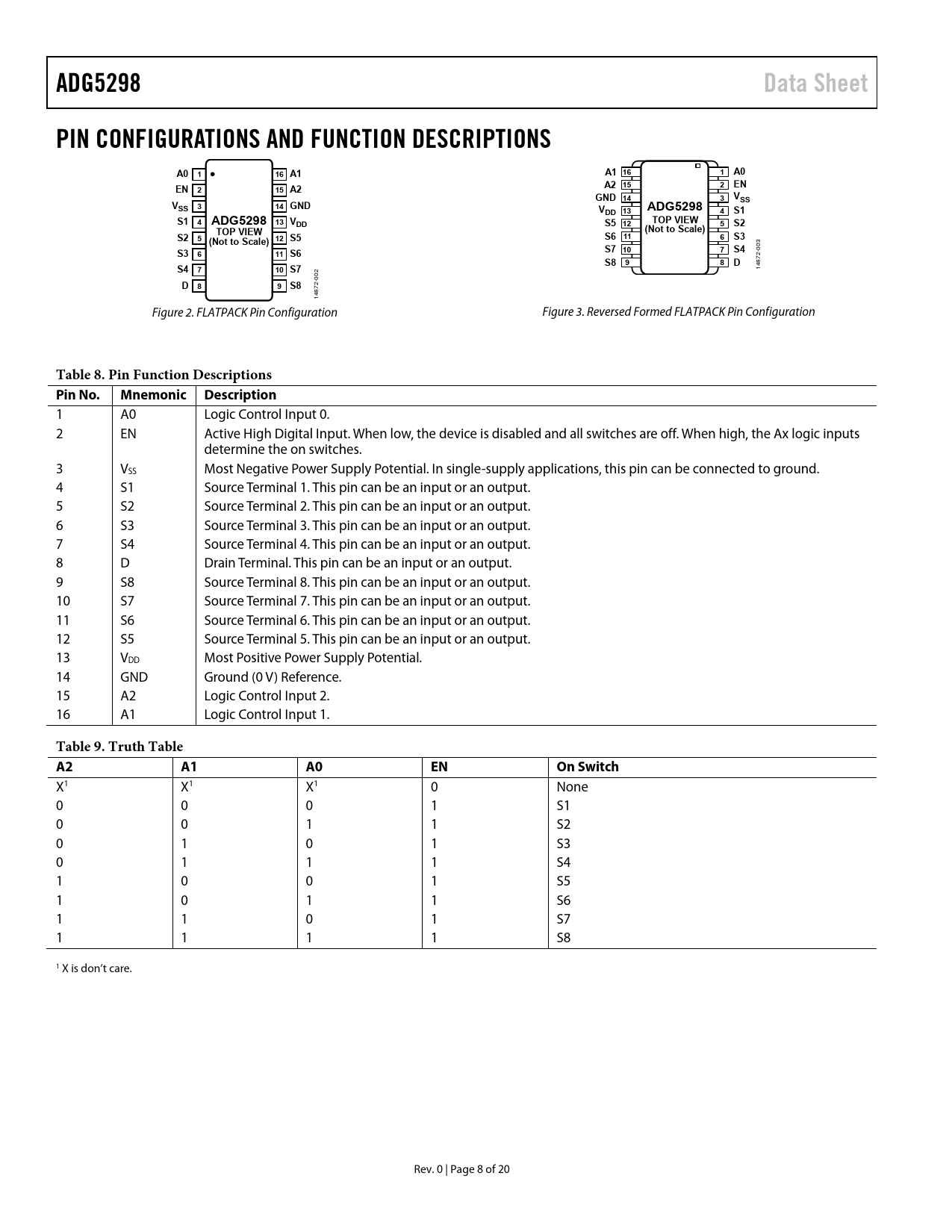

ADG5298 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS A0 1 16 A1 A1 16 1 A0 15 2 EN EN A2 2 15 A2 GND 14 3 VSS VSS 3 14 GND V 13 ADG5298 DD 4 S1 S1 4 ADG5298 13 V TOP VIEW DD S5 12 5 S2 TOP VIEW (Not to Scale) S2 5 12 S5 S6 11 6 S3 (Not to Scale)
3
S3 S7 10 7 S4 6 11 S6
-00
S8 9 8 D
872
S4 7 10 S7
14 002
D 8 9 S8
2- 1487 Figure 2. FLATPACK Pin Configuration Figure 3. Reversed Formed FLATPACK Pin Configuration
Table 8. Pin Function Descriptions Pin No. Mnemonic Description
1 A0 Logic Control Input 0. 2 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, the Ax logic inputs determine the on switches. 3 VSS Most Negative Power Supply Potential. In single-supply applications, this pin can be connected to ground. 4 S1 Source Terminal 1. This pin can be an input or an output. 5 S2 Source Terminal 2. This pin can be an input or an output. 6 S3 Source Terminal 3. This pin can be an input or an output. 7 S4 Source Terminal 4. This pin can be an input or an output. 8 D Drain Terminal. This pin can be an input or an output. 9 S8 Source Terminal 8. This pin can be an input or an output. 10 S7 Source Terminal 7. This pin can be an input or an output. 11 S6 Source Terminal 6. This pin can be an input or an output. 12 S5 Source Terminal 5. This pin can be an input or an output. 13 VDD Most Positive Power Supply Potential. 14 GND Ground (0 V) Reference. 15 A2 Logic Control Input 2. 16 A1 Logic Control Input 1.
Table 9. Truth Table A2 A1 A0 EN On Switch
X1 X1 X1 0 None 0 0 0 1 S1 0 0 1 1 S2 0 1 0 1 S3 0 1 1 1 S4 1 0 0 1 S5 1 0 1 1 S6 1 1 0 1 S7 1 1 1 1 S8 1 X is don’t care. Rev. 0 | Page 8 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL-SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL (Sx OR D) ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
