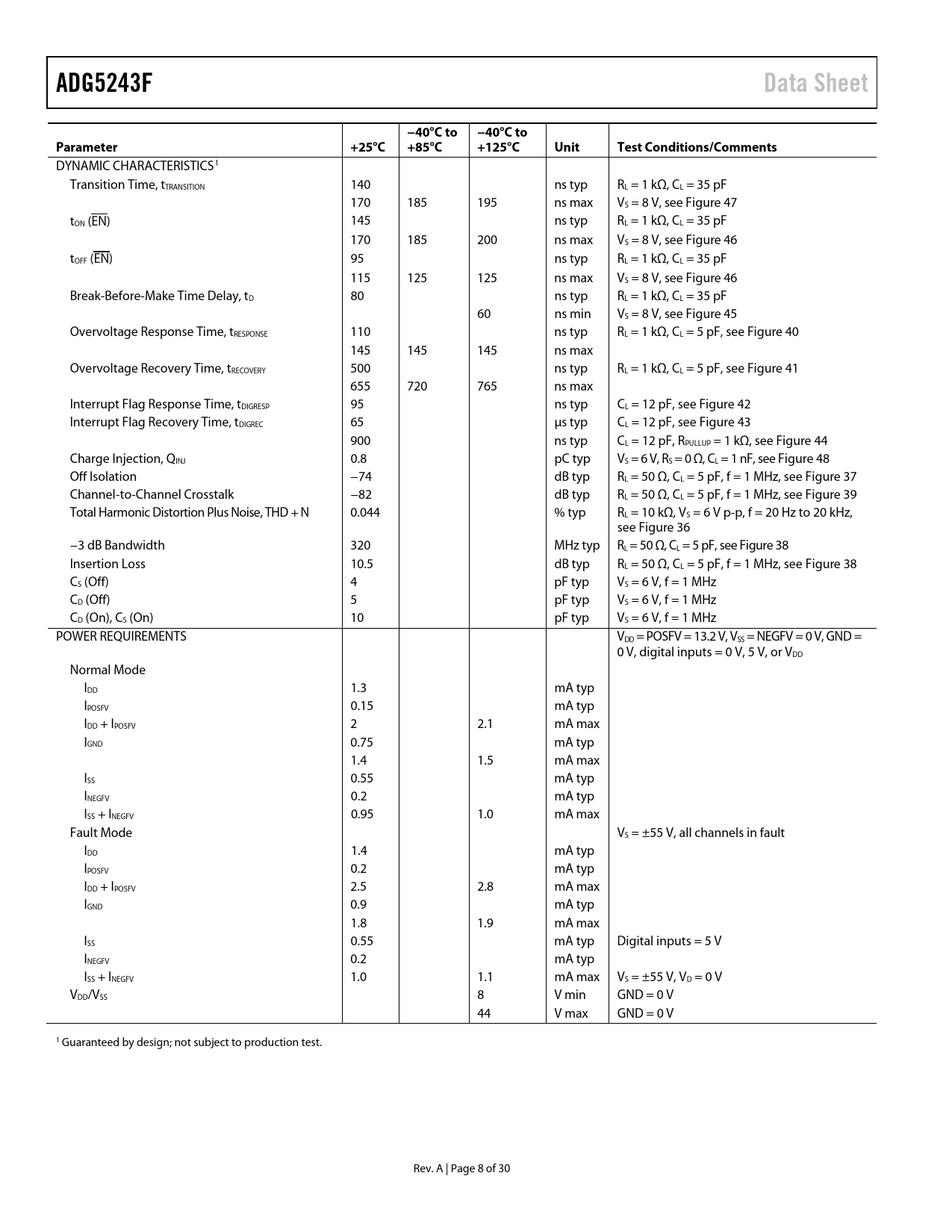

ADG5243F Data Sheet −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 140 ns typ RL = 1 kΩ, CL = 35 pF 170 185 195 ns max VS = 8 V, see Figure 47 tON (EN) 145 ns typ RL = 1 kΩ, CL = 35 pF 170 185 200 ns max VS = 8 V, see Figure 46 tOFF (EN) 95 ns typ RL = 1 kΩ, CL = 35 pF 115 125 125 ns max VS = 8 V, see Figure 46 Break-Before-Make Time Delay, tD 80 ns typ RL = 1 kΩ, CL = 35 pF 60 ns min VS = 8 V, see Figure 45 Overvoltage Response Time, tRESPONSE 110 ns typ RL = 1 kΩ, CL = 5 pF, see Figure 40 145 145 145 ns max Overvoltage Recovery Time, tRECOVERY 500 ns typ RL = 1 kΩ, CL = 5 pF, see Figure 41 655 720 765 ns max Interrupt Flag Response Time, tDIGRESP 95 ns typ CL = 12 pF, see Figure 42 Interrupt Flag Recovery Time, tDIGREC 65 µs typ CL = 12 pF, see Figure 43 900 ns typ CL = 12 pF, RPULLUP = 1 kΩ, see Figure 44 Charge Injection, QINJ 0.8 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF, see Figure 48 Off Isolation −74 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 37 Channel-to-Channel Crosstalk −82 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 39 Total Harmonic Distortion Plus Noise, THD + N 0.044 % typ RL = 10 kΩ, VS = 6 V p-p, f = 20 Hz to 20 kHz, see Figure 36 −3 dB Bandwidth 320 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 38 Insertion Loss 10.5 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 38 CS (Off) 4 pF typ VS = 6 V, f = 1 MHz CD (Off) 5 pF typ VS = 6 V, f = 1 MHz CD (On), CS (On) 10 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = POSFV = 13.2 V, VSS = NEGFV = 0 V, GND = 0 V, digital inputs = 0 V, 5 V, or VDD Normal Mode IDD 1.3 mA typ IPOSFV 0.15 mA typ IDD + IPOSFV 2 2.1 mA max IGND 0.75 mA typ 1.4 1.5 mA max ISS 0.55 mA typ INEGFV 0.2 mA typ ISS + INEGFV 0.95 1.0 mA max Fault Mode VS = ±55 V, all channels in fault IDD 1.4 mA typ IPOSFV 0.2 mA typ IDD + IPOSFV 2.5 2.8 mA max IGND 0.9 mA typ 1.8 1.9 mA max ISS 0.55 mA typ Digital inputs = 5 V INEGFV 0.2 mA typ ISS + INEGFV 1.0 1.1 mA max VS = ±55 V, VD = 0 V VDD/VSS 8 V min GND = 0 V 44 V max GND = 0 V 1 Guaranteed by design; not subject to production test. Rev. A | Page 8 of 30 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation USER DEFINED FAULT PROTECTION Power-On Protection Power-Off Protection Digital Input Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE POWER SUPPLY RECOMMENDATIONS HIGH VOLTAGE SURGE SUPPRESSION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS OUTLINE DIMENSIONS ORDERING GUIDE
