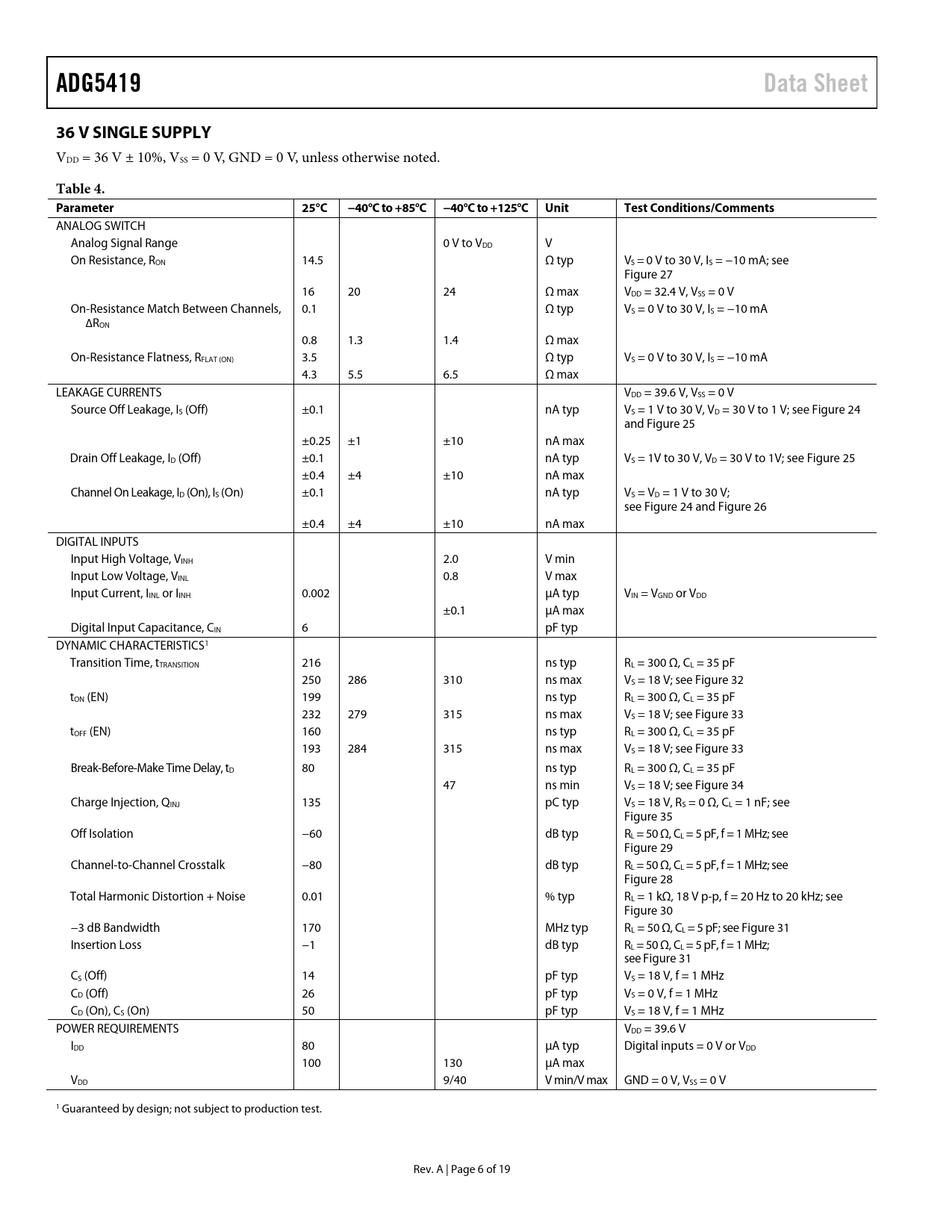

ADG5419 Data Sheet 36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 14.5 Ω typ VS = 0 V to 30 V, IS = −10 mA; see Figure 27 16 20 24 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match Between Channels, 0.1 Ω typ VS = 0 V to 30 V, IS = −10 mA ∆RON 0.8 1.3 1.4 Ω max On-Resistance Flatness, RFLAT (ON) 3.5 Ω typ VS = 0 V to 30 V, IS = −10 mA 4.3 5.5 6.5 Ω max LEAKAGE CURRENTS VDD = 39.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = 1 V to 30 V, VD = 30 V to 1 V; see Figure 24 and Figure 25 ±0.25 ±1 ±10 nA max Drain Off Leakage, ID (Off) ±0.1 nA typ VS = 1V to 30 V, VD = 30 V to 1V; see Figure 25 ±0.4 ±4 ±10 nA max Channel On Leakage, ID (On), IS (On) ±0.1 nA typ VS = VD = 1 V to 30 V; see Figure 24 and Figure 26 ±0.4 ±4 ±10 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 6 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 216 ns typ RL = 300 Ω, CL = 35 pF 250 286 310 ns max VS = 18 V; see Figure 32 tON (EN) 199 ns typ RL = 300 Ω, CL = 35 pF 232 279 315 ns max VS = 18 V; see Figure 33 tOFF (EN) 160 ns typ RL = 300 Ω, CL = 35 pF 193 284 315 ns max VS = 18 V; see Figure 33 Break-Before-Make Time Delay, tD 80 ns typ RL = 300 Ω, CL = 35 pF 47 ns min VS = 18 V; see Figure 34 Charge Injection, QINJ 135 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF; see Figure 35 Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 Total Harmonic Distortion + Noise 0.01 % typ RL = 1 kΩ, 18 V p-p, f = 20 Hz to 20 kHz; see Figure 30 −3 dB Bandwidth 170 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 31 Insertion Loss −1 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 CS (Off) 14 pF typ VS = 18 V, f = 1 MHz CD (Off) 26 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) 50 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V IDD 80 μA typ Digital inputs = 0 V or VDD 100 130 μA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test. Rev. A | Page 6 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY APPLICATIONS INFORMATION TRENCH ISOLATION OUTLINE DIMENSIONS ORDERING GUIDE
