ADG5204. SPECIFICATIONS ±15 V DUAL SUPPLY. Table 1. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C Unit. Test. Conditions/Comments
该数据表的模型线
文件文字版本
link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 14 link to page 14 link to page 14 link to page 14 link to page 3

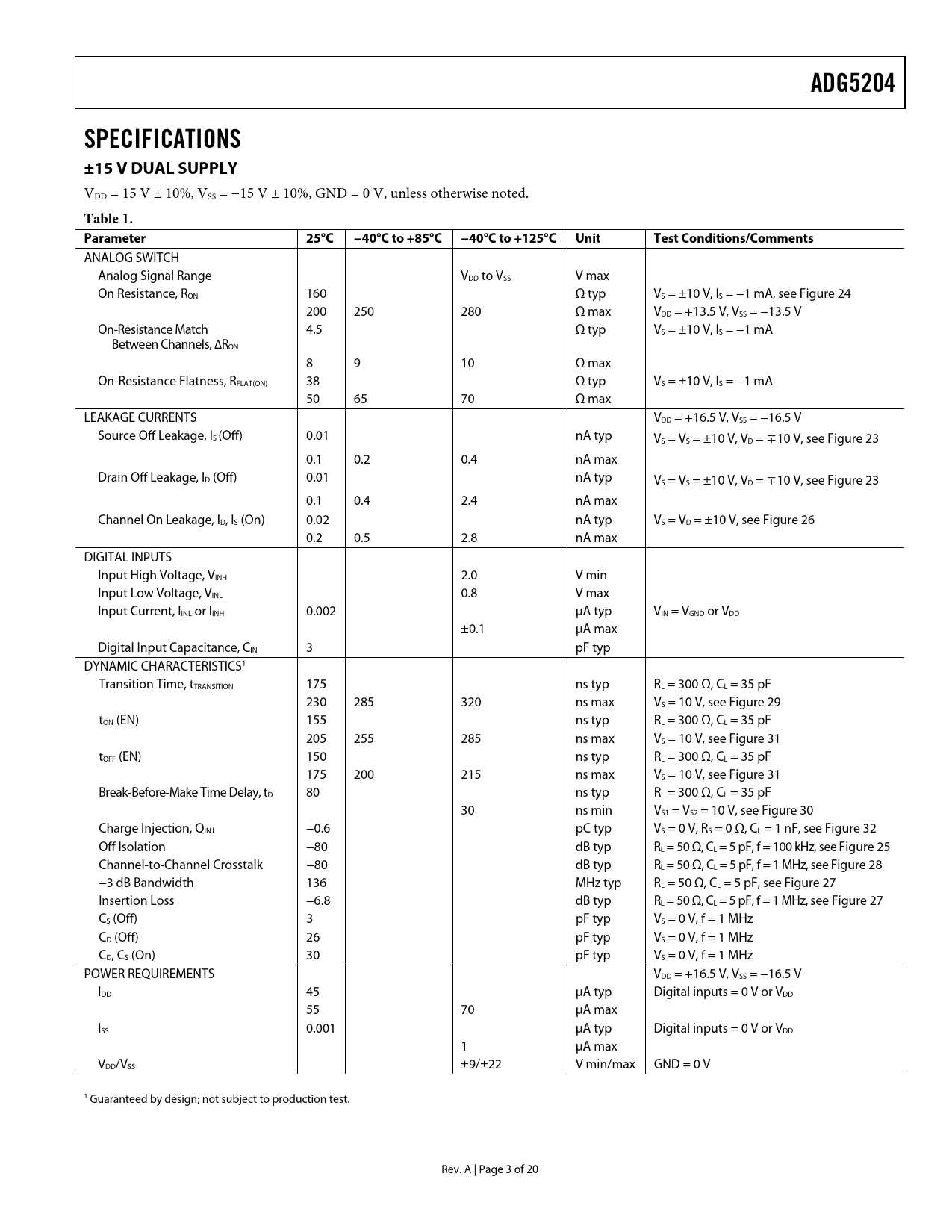

ADG5204 SPECIFICATIONS ±15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V max On Resistance, RON 160 Ω typ VS = ±10 V, IS = −1 mA, see Figure 24 200 250 280 Ω max VDD = +13.5 V, VSS = −13.5 V On-Resistance Match 4.5 Ω typ VS = ±10 V, IS = −1 mA Between Channels, ∆RON 8 9 10 Ω max On-Resistance Flatness, RFLAT(ON) 38 Ω typ VS = ±10 V, IS = −1 mA 50 65 70 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) 0.01 nA typ VS = VS = ±10 V, VD = ∓10 V, see Figure 23 0.1 0.2 0.4 nA max Drain Off Leakage, ID (Off) 0.01 nA typ VS = VS = ±10 V, VD = ∓10 V, see Figure 23 0.1 0.4 2.4 nA max Channel On Leakage, ID, IS (On) 0.02 nA typ VS = VD = ±10 V, see Figure 26 0.2 0.5 2.8 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 175 ns typ RL = 300 Ω, CL = 35 pF 230 285 320 ns max VS = 10 V, see Figure 29 tON (EN) 155 ns typ RL = 300 Ω, CL = 35 pF 205 255 285 ns max VS = 10 V, see Figure 31 tOFF (EN) 150 ns typ RL = 300 Ω, CL = 35 pF 175 200 215 ns max VS = 10 V, see Figure 31 Break-Before-Make Time Delay, tD 80 ns typ RL = 300 Ω, CL = 35 pF 30 ns min VS1 = VS2 = 10 V, see Figure 30 Charge Injection, QINJ −0.6 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF, see Figure 32 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz, see Figure 25 Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 28 −3 dB Bandwidth 136 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 27 Insertion Loss −6.8 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 27 CS (Off) 3 pF typ VS = 0 V, f = 1 MHz CD (Off) 26 pF typ VS = 0 V, f = 1 MHz CD, CS (On) 30 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 45 μA typ Digital inputs = 0 V or VDD 55 70 μA max ISS 0.001 μA typ Digital inputs = 0 V or VDD 1 μA max VDD/VSS ±9/±22 V min/max GND = 0 V 1 Guaranteed by design; not subject to production test. Rev. A | Page 3 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
ADG5204 SPECIFICATIONS ±15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V max On Resistance, RON 160 Ω typ VS = ±10 V, IS = −1 mA, see Figure 24 200 250 280 Ω max VDD = +13.5 V, VSS = −13.5 V On-Resistance Match 4.5 Ω typ VS = ±10 V, IS = −1 mA Between Channels, ∆RON 8 9 10 Ω max On-Resistance Flatness, RFLAT(ON) 38 Ω typ VS = ±10 V, IS = −1 mA 50 65 70 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) 0.01 nA typ VS = VS = ±10 V, VD = ∓10 V, see Figure 23 0.1 0.2 0.4 nA max Drain Off Leakage, ID (Off) 0.01 nA typ VS = VS = ±10 V, VD = ∓10 V, see Figure 23 0.1 0.4 2.4 nA max Channel On Leakage, ID, IS (On) 0.02 nA typ VS = VD = ±10 V, see Figure 26 0.2 0.5 2.8 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 175 ns typ RL = 300 Ω, CL = 35 pF 230 285 320 ns max VS = 10 V, see Figure 29 tON (EN) 155 ns typ RL = 300 Ω, CL = 35 pF 205 255 285 ns max VS = 10 V, see Figure 31 tOFF (EN) 150 ns typ RL = 300 Ω, CL = 35 pF 175 200 215 ns max VS = 10 V, see Figure 31 Break-Before-Make Time Delay, tD 80 ns typ RL = 300 Ω, CL = 35 pF 30 ns min VS1 = VS2 = 10 V, see Figure 30 Charge Injection, QINJ −0.6 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF, see Figure 32 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz, see Figure 25 Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 28 −3 dB Bandwidth 136 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 27 Insertion Loss −6.8 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 27 CS (Off) 3 pF typ VS = 0 V, f = 1 MHz CD (Off) 26 pF typ VS = 0 V, f = 1 MHz CD, CS (On) 30 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 45 μA typ Digital inputs = 0 V or VDD 55 70 μA max ISS 0.001 μA typ Digital inputs = 0 V or VDD 1 μA max VDD/VSS ±9/±22 V min/max GND = 0 V 1 Guaranteed by design; not subject to production test. Rev. A | Page 3 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
