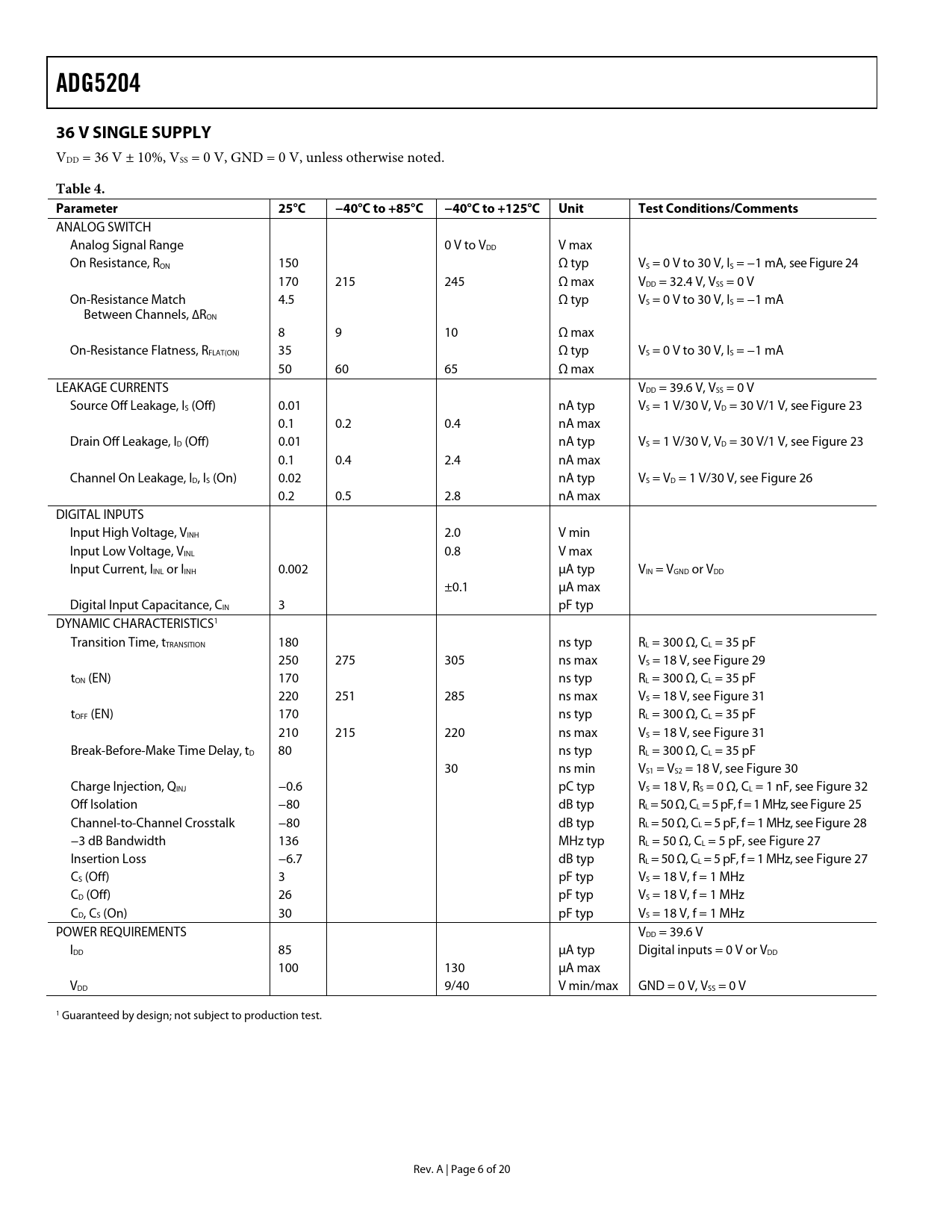

ADG5204 36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V max On Resistance, RON 150 Ω typ VS = 0 V to 30 V, IS = −1 mA, see Figure 24 170 215 245 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match 4.5 Ω typ VS = 0 V to 30 V, IS = −1 mA Between Channels, ∆RON 8 9 10 Ω max On-Resistance Flatness, RFLAT(ON) 35 Ω typ VS = 0 V to 30 V, IS = −1 mA 50 60 65 Ω max LEAKAGE CURRENTS VDD = 39.6 V, VSS = 0 V Source Off Leakage, IS (Off) 0.01 nA typ VS = 1 V/30 V, VD = 30 V/1 V, see Figure 23 0.1 0.2 0.4 nA max Drain Off Leakage, ID (Off) 0.01 nA typ VS = 1 V/30 V, VD = 30 V/1 V, see Figure 23 0.1 0.4 2.4 nA max Channel On Leakage, ID, IS (On) 0.02 nA typ VS = VD = 1 V/30 V, see Figure 26 0.2 0.5 2.8 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 180 ns typ RL = 300 Ω, CL = 35 pF 250 275 305 ns max VS = 18 V, see Figure 29 tON (EN) 170 ns typ RL = 300 Ω, CL = 35 pF 220 251 285 ns max VS = 18 V, see Figure 31 tOFF (EN) 170 ns typ RL = 300 Ω, CL = 35 pF 210 215 220 ns max VS = 18 V, see Figure 31 Break-Before-Make Time Delay, tD 80 ns typ RL = 300 Ω, CL = 35 pF 30 ns min VS1 = VS2 = 18 V, see Figure 30 Charge Injection, QINJ −0.6 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF, see Figure 32 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 25 Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 28 −3 dB Bandwidth 136 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 27 Insertion Loss −6.7 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 27 CS (Off) 3 pF typ VS = 18 V, f = 1 MHz CD (Off) 26 pF typ VS = 18 V, f = 1 MHz CD, CS (On) 30 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V IDD 85 μA typ Digital inputs = 0 V or VDD 100 130 μA max VDD 9/40 V min/max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test. Rev. A | Page 6 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
