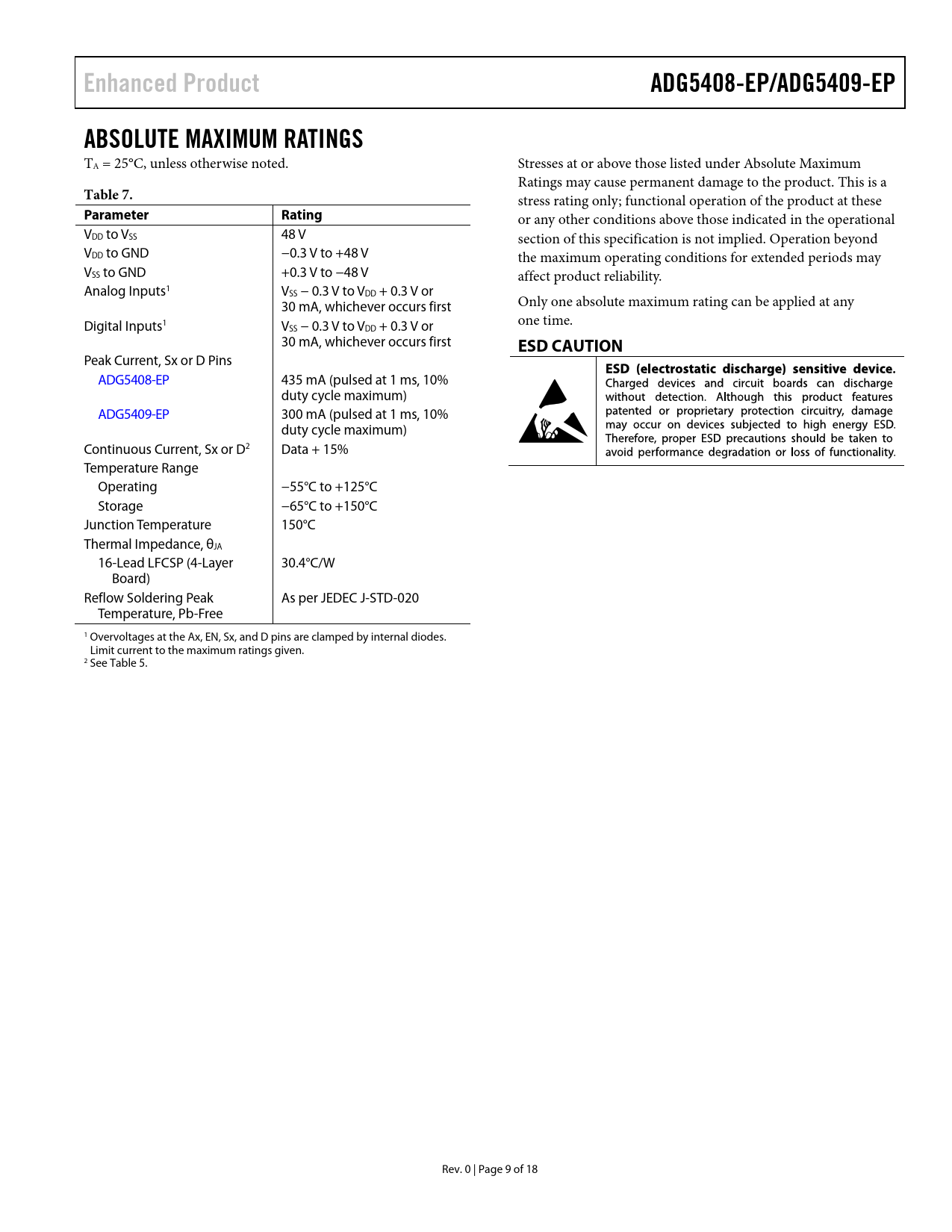

Enhanced Product ADG5408-EP/ADG5409-EP ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 7.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to VSS 48 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +48 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −48 V affect product reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Only one absolute maximum rating can be applied at any Digital Inputs1 V one time. SS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first
ESD CAUTION
Peak Current, Sx or D Pins ADG5408-EP 435 mA (pulsed at 1 ms, 10% duty cycle maximum) ADG5409-EP 300 mA (pulsed at 1 ms, 10% duty cycle maximum) Continuous Current, Sx or D2 Data + 15% Temperature Range Operating −55°C to +125°C Storage −65°C to +150°C Junction Temperature 150°C Thermal Impedance, θJA 16-Lead LFCSP (4-Layer 30.4°C/W Board) Reflow Soldering Peak As per JEDEC J-STD-020 Temperature, Pb-Free 1 Overvoltages at the Ax, EN, Sx, and D pins are clamped by internal diodes. Limit current to the maximum ratings given. 2 See Table 5. Rev. 0 | Page 9 of 18 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
