Datasheet ADG5433W (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | High Voltage, Latch-up Proof, Triple SPDT Switches |
| 页数 / 页 | 20 / 7 — Data Sheet. ADG5433W. CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx. Table 5. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 387 Kb |
| 文件语言 | 英语 |

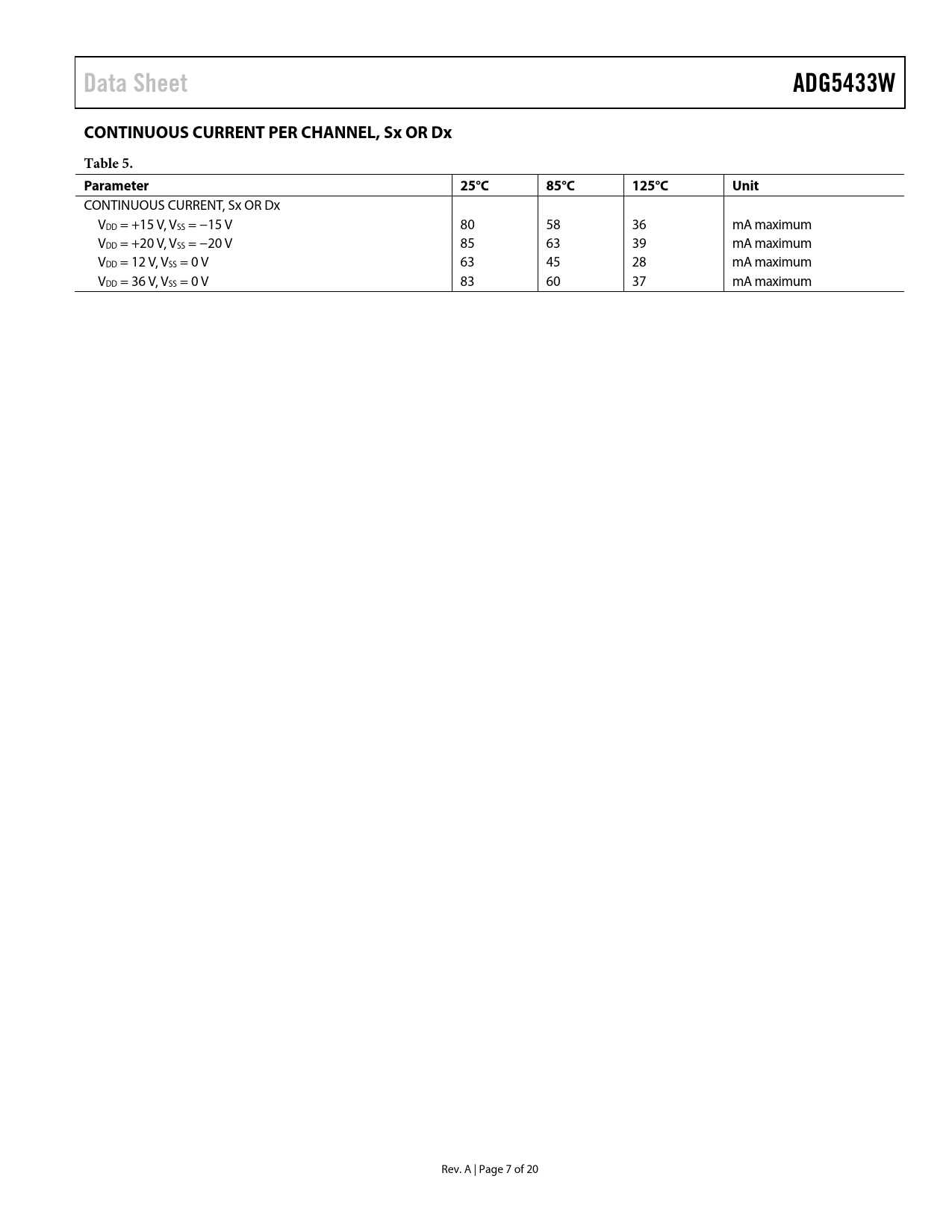

Data Sheet. ADG5433W. CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx. Table 5. Parameter. 25°C. 85°C. 125°C. Unit
该数据表的模型线
文件文字版本
Data Sheet ADG5433W CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx Table 5. Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR Dx VDD = +15 V, VSS = −15 V 80 58 36 mA maximum VDD = +20 V, VSS = −20 V 85 63 39 mA maximum VDD = 12 V, VSS = 0 V 63 45 28 mA maximum VDD = 36 V, VSS = 0 V 83 60 37 mA maximum Rev. A | Page 7 of 20 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or Dx Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide Automotive Products
