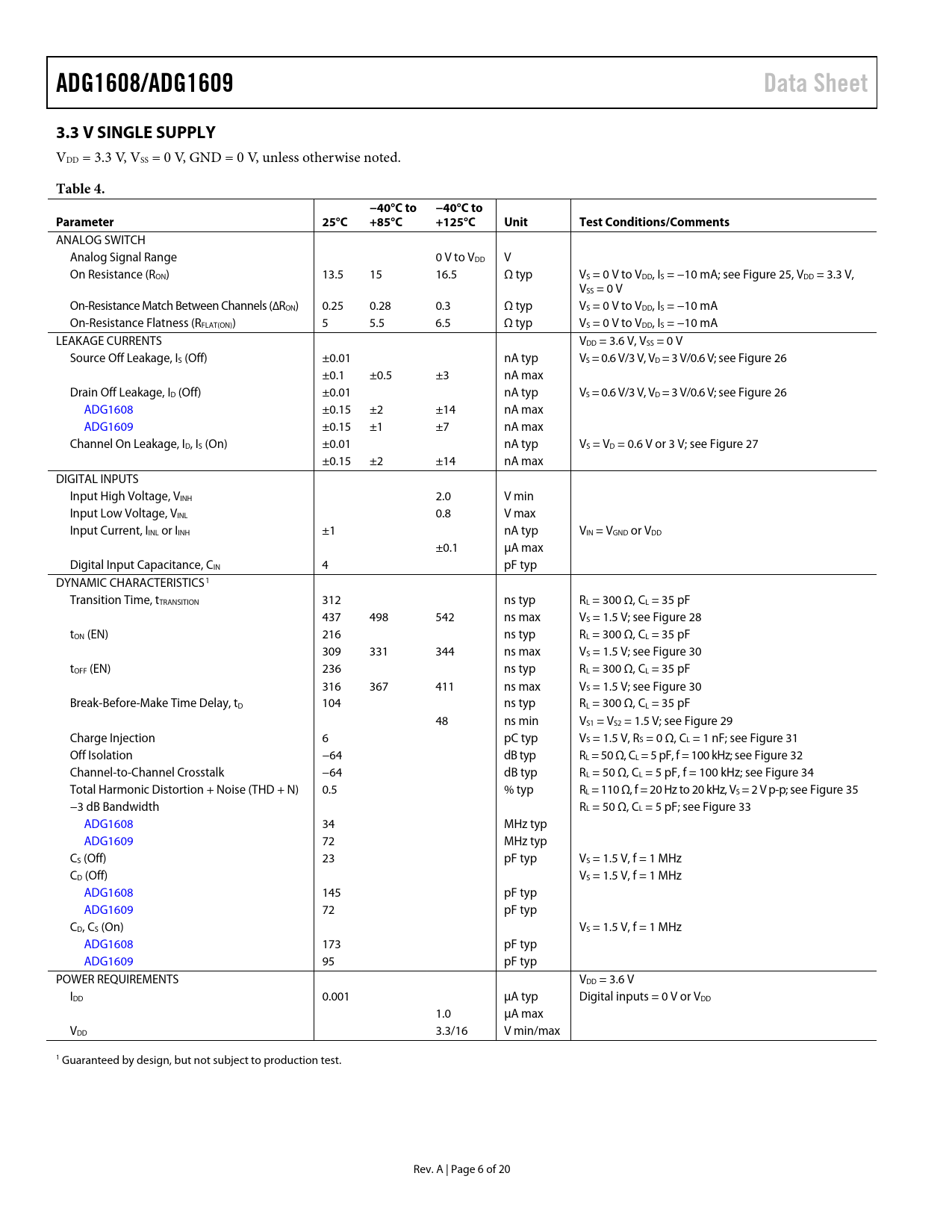

ADG1608/ADG1609 Data Sheet 3.3 V SINGLE SUPPLY
VDD = 3.3 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 13.5 15 16.5 Ω typ VS = 0 V to VDD, IS = −10 mA; see Figure 25, VDD = 3.3 V, VSS = 0 V On-Resistance Match Between Channels (∆RON) 0.25 0.28 0.3 Ω typ VS = 0 V to VDD, IS = −10 mA On-Resistance Flatness (RFLAT(ON)) 5 5.5 6.5 Ω typ VS = 0 V to VDD, IS = −10 mA LEAKAGE CURRENTS VDD = 3.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.01 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 26 ±0.1 ±0.5 ±3 nA max Drain Off Leakage, ID (Off) ±0.01 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 26 ADG1608 ±0.15 ±2 ±14 nA max ADG1609 ±0.15 ±1 ±7 nA max Channel On Leakage, ID, IS (On) ±0.01 nA typ VS = VD = 0.6 V or 3 V; see Figure 27 ±0.15 ±2 ±14 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±1 nA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 312 ns typ RL = 300 Ω, CL = 35 pF 437 498 542 ns max VS = 1.5 V; see Figure 28 tON (EN) 216 ns typ RL = 300 Ω, CL = 35 pF 309 331 344 ns max VS = 1.5 V; see Figure 30 tOFF (EN) 236 ns typ RL = 300 Ω, CL = 35 pF 316 367 411 ns max VS = 1.5 V; see Figure 30 Break-Before-Make Time Delay, tD 104 ns typ RL = 300 Ω, CL = 35 pF 48 ns min VS1 = VS2 = 1.5 V; see Figure 29 Charge Injection 6 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF; see Figure 31 Off Isolation −64 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 32 Channel-to-Channel Crosstalk −64 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 34 Total Harmonic Distortion + Noise (THD + N) 0.5 % typ RL = 110 Ω, f = 20 Hz to 20 kHz, VS = 2 V p-p; see Figure 35 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 33 ADG1608 34 MHz typ ADG1609 72 MHz typ CS (Off) 23 pF typ VS = 1.5 V, f = 1 MHz CD (Off) VS = 1.5 V, f = 1 MHz ADG1608 145 pF typ ADG1609 72 pF typ CD, CS (On) VS = 1.5 V, f = 1 MHz ADG1608 173 pF typ ADG1609 95 pF typ POWER REQUIREMENTS VDD = 3.6 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, but not subject to production test. Rev. A | Page 6 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
