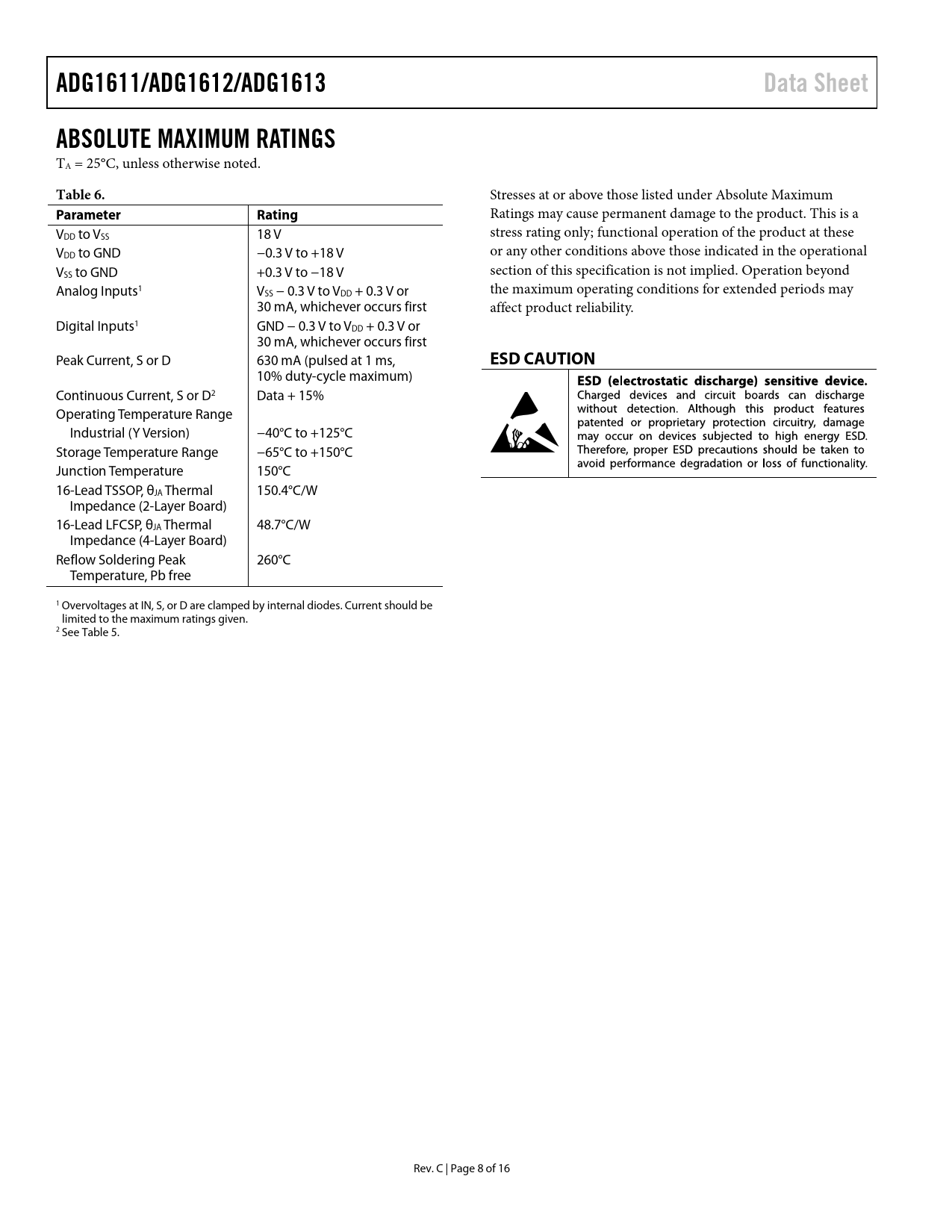

ADG1611/ADG1612/ADG1613 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 6.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a VDD to VSS 18 V stress rating only; functional operation of the product at these VDD to GND −0.3 V to +18 V or any other conditions above those indicated in the operational VSS to GND +0.3 V to −18 V section of this specification is not implied. Operation beyond Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or the maximum operating conditions for extended periods may 30 mA, whichever occurs first affect product reliability. Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Peak Current, S or D 630 mA (pulsed at 1 ms,
ESD CAUTION
10% duty-cycle maximum) Continuous Current, S or D2 Data + 15% Operating Temperature Range Industrial (Y Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 16-Lead TSSOP, θJA Thermal 150.4°C/W Impedance (2-Layer Board) 16-Lead LFCSP, θJA Thermal 48.7°C/W Impedance (4-Layer Board) Reflow Soldering Peak 260°C Temperature, Pb free 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. 2 See Table 5. Rev. C | Page 8 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
