| 制造商 | Analog Devices |
| 描述 | 1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V Dual SPDT Switches |
| 页数 / 页 | 16 / 6 — ADG1636. Data Sheet. 3.3 V SINGLE SUPPLY. Table 4. −40°C to −40°C to. … |
| 修订版 | B |
| 文件格式/大小 | PDF / 440 Kb |
| 文件语言 | 英语 |

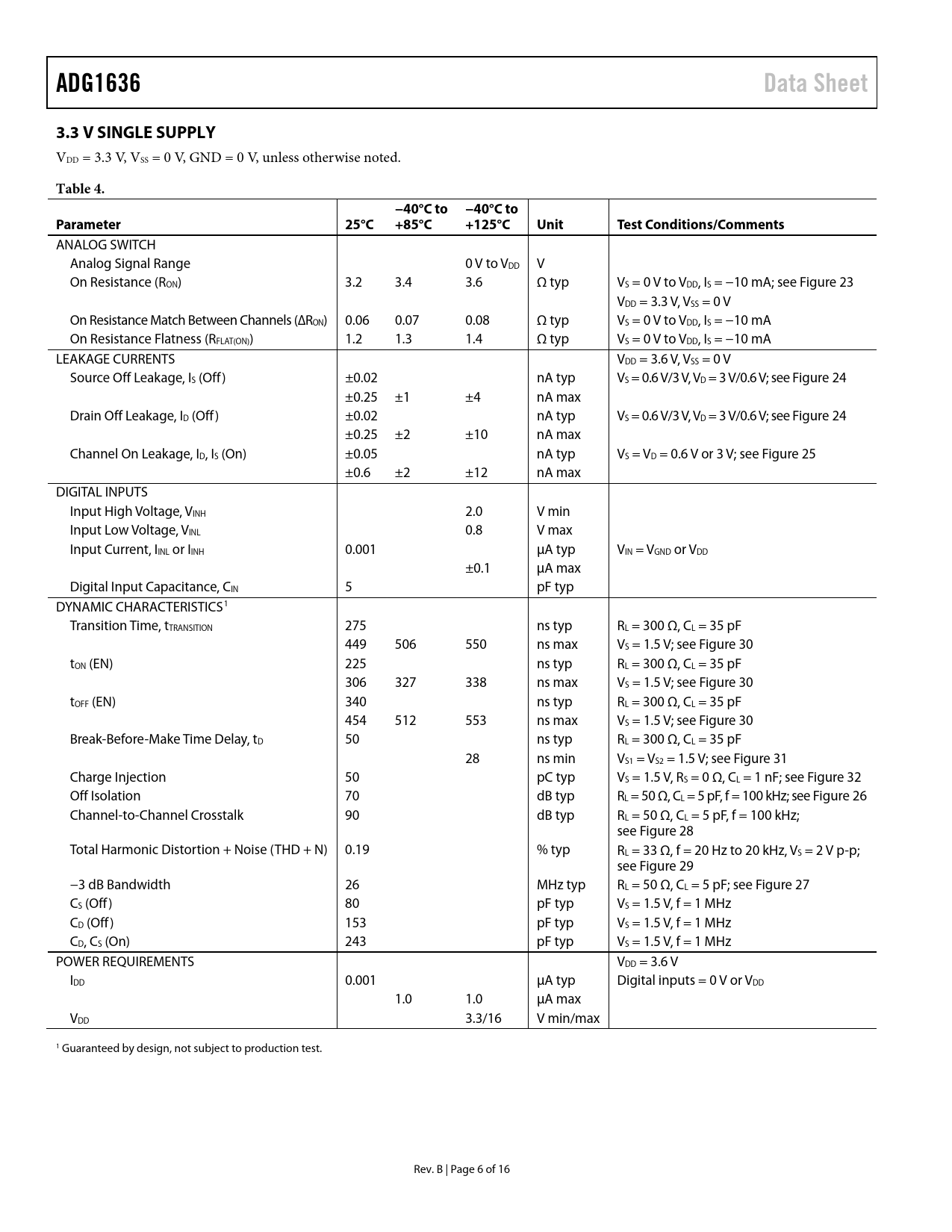

ADG1636. Data Sheet. 3.3 V SINGLE SUPPLY. Table 4. −40°C to −40°C to. Parameter. 25°C +85°C. +125°C. Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本
link to page 13 link to page 13 link to page 13 link to page 13 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 13 link to page 13 link to page 14 link to page 13
ADG1636 Data Sheet 3.3 V SINGLE SUPPLY
VDD = 3.3 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 3.2 3.4 3.6 Ω typ VS = 0 V to VDD, IS = −10 mA; see Figure 23 VDD = 3.3 V, VSS = 0 V On Resistance Match Between Channels (∆RON) 0.06 0.07 0.08 Ω typ VS = 0 V to VDD, IS = −10 mA On Resistance Flatness (RFLAT(ON)) 1.2 1.3 1.4 Ω typ VS = 0 V to VDD, IS = −10 mA LEAKAGE CURRENTS VDD = 3.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 24 ±0.25 ±1 ±4 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 24 ±0.25 ±2 ±10 nA max Channel On Leakage, ID, IS (On) ±0.05 nA typ VS = VD = 0.6 V or 3 V; see Figure 25 ±0.6 ±2 ±12 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 275 ns typ RL = 300 Ω, CL = 35 pF 449 506 550 ns max VS = 1.5 V; see Figure 30 tON (EN) 225 ns typ RL = 300 Ω, CL = 35 pF 306 327 338 ns max VS = 1.5 V; see Figure 30 tOFF (EN) 340 ns typ RL = 300 Ω, CL = 35 pF 454 512 553 ns max VS = 1.5 V; see Figure 30 Break-Before-Make Time Delay, tD 50 ns typ RL = 300 Ω, CL = 35 pF 28 ns min VS1 = VS2 = 1.5 V; see Figure 31 Charge Injection 50 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation 70 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 26 Channel-to-Channel Crosstalk 90 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 28 Total Harmonic Distortion + Noise (THD + N) 0.19 % typ RL = 33 Ω, f = 20 Hz to 20 kHz, VS = 2 V p-p; see Figure 29 −3 dB Bandwidth 26 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 27 CS (Off) 80 pF typ VS = 1.5 V, f = 1 MHz CD (Off) 153 pF typ VS = 1.5 V, f = 1 MHz CD, CS (On) 243 pF typ VS = 1.5 V, f = 1 MHz POWER REQUIREMENTS VDD = 3.6 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 1.0 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, not subject to production test. Rev. B | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
ADG1636 Data Sheet 3.3 V SINGLE SUPPLY
VDD = 3.3 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 3.2 3.4 3.6 Ω typ VS = 0 V to VDD, IS = −10 mA; see Figure 23 VDD = 3.3 V, VSS = 0 V On Resistance Match Between Channels (∆RON) 0.06 0.07 0.08 Ω typ VS = 0 V to VDD, IS = −10 mA On Resistance Flatness (RFLAT(ON)) 1.2 1.3 1.4 Ω typ VS = 0 V to VDD, IS = −10 mA LEAKAGE CURRENTS VDD = 3.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 24 ±0.25 ±1 ±4 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 24 ±0.25 ±2 ±10 nA max Channel On Leakage, ID, IS (On) ±0.05 nA typ VS = VD = 0.6 V or 3 V; see Figure 25 ±0.6 ±2 ±12 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 275 ns typ RL = 300 Ω, CL = 35 pF 449 506 550 ns max VS = 1.5 V; see Figure 30 tON (EN) 225 ns typ RL = 300 Ω, CL = 35 pF 306 327 338 ns max VS = 1.5 V; see Figure 30 tOFF (EN) 340 ns typ RL = 300 Ω, CL = 35 pF 454 512 553 ns max VS = 1.5 V; see Figure 30 Break-Before-Make Time Delay, tD 50 ns typ RL = 300 Ω, CL = 35 pF 28 ns min VS1 = VS2 = 1.5 V; see Figure 31 Charge Injection 50 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation 70 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 26 Channel-to-Channel Crosstalk 90 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 28 Total Harmonic Distortion + Noise (THD + N) 0.19 % typ RL = 33 Ω, f = 20 Hz to 20 kHz, VS = 2 V p-p; see Figure 29 −3 dB Bandwidth 26 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 27 CS (Off) 80 pF typ VS = 1.5 V, f = 1 MHz CD (Off) 153 pF typ VS = 1.5 V, f = 1 MHz CD, CS (On) 243 pF typ VS = 1.5 V, f = 1 MHz POWER REQUIREMENTS VDD = 3.6 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 1.0 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, not subject to production test. Rev. B | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
