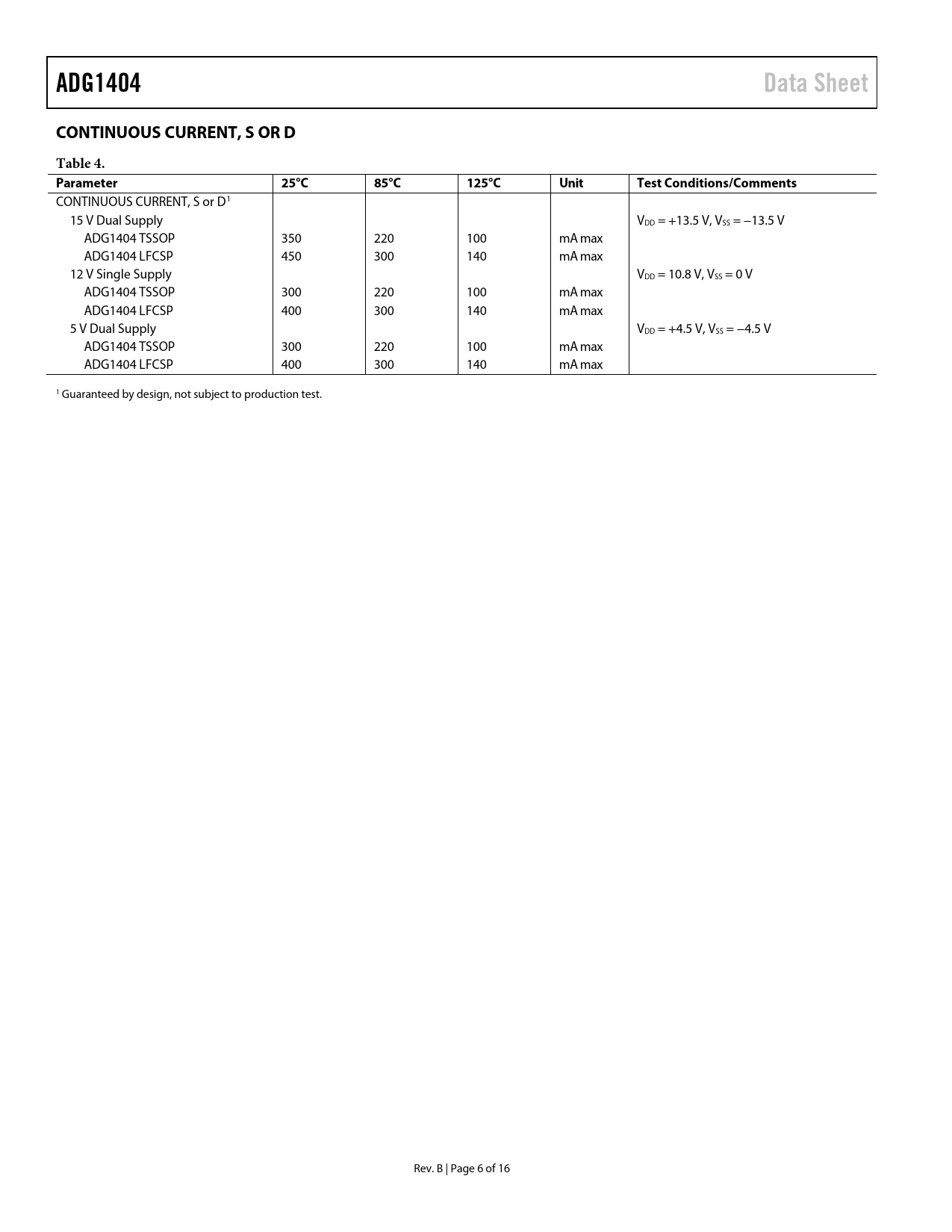

ADG1404. Data Sheet. CONTINUOUS CURRENT, S OR D. Table 4. Parameter. 25°C. 85°C. 125°C. Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本
ADG1404 Data Sheet CONTINUOUS CURRENT, S OR D Table 4. Parameter 25°C 85°C 125°C Unit Test Conditions/Comments
CONTINUOUS CURRENT, S or D1 15 V Dual Supply VDD = +13.5 V, VSS = −13.5 V ADG1404 TSSOP 350 220 100 mA max ADG1404 LFCSP 450 300 140 mA max 12 V Single Supply VDD = 10.8 V, VSS = 0 V ADG1404 TSSOP 300 220 100 mA max ADG1404 LFCSP 400 300 140 mA max 5 V Dual Supply VDD = +4.5 V, VSS = −4.5 V ADG1404 TSSOP 300 220 100 mA max ADG1404 LFCSP 400 300 140 mA max 1 Guaranteed by design, not subject to production test. Rev. B | Page 6 of 16 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications 15 V Dual Supply 12 V Single Supply 5 V Dual Supply Continuous Current, S or D Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Table Typical Performance Characteristics Terminology Test Circuits Outline Dimensions Ordering Guide
