Datasheet ADG1436-EP (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | 1.5 Ω On Resistance, ±15 V/12 V/±5 V, iCMOS , Dual SPDT Switch |
| 页数 / 页 | 10 / 1 — 1.5 Ω On Resistance,. ±15 V/12 V/±5 V, i. CMOS, Dual SPDT Switch. … |
| 文件格式/大小 | PDF / 253 Kb |
| 文件语言 | 英语 |
1.5 Ω On Resistance,. ±15 V/12 V/±5 V, i. CMOS, Dual SPDT Switch. Enhanced Product. ADG1436-EP. FEATURES. FUNCTIONAL BLOCK DIAGRAM
该数据表的模型线
文件文字版本

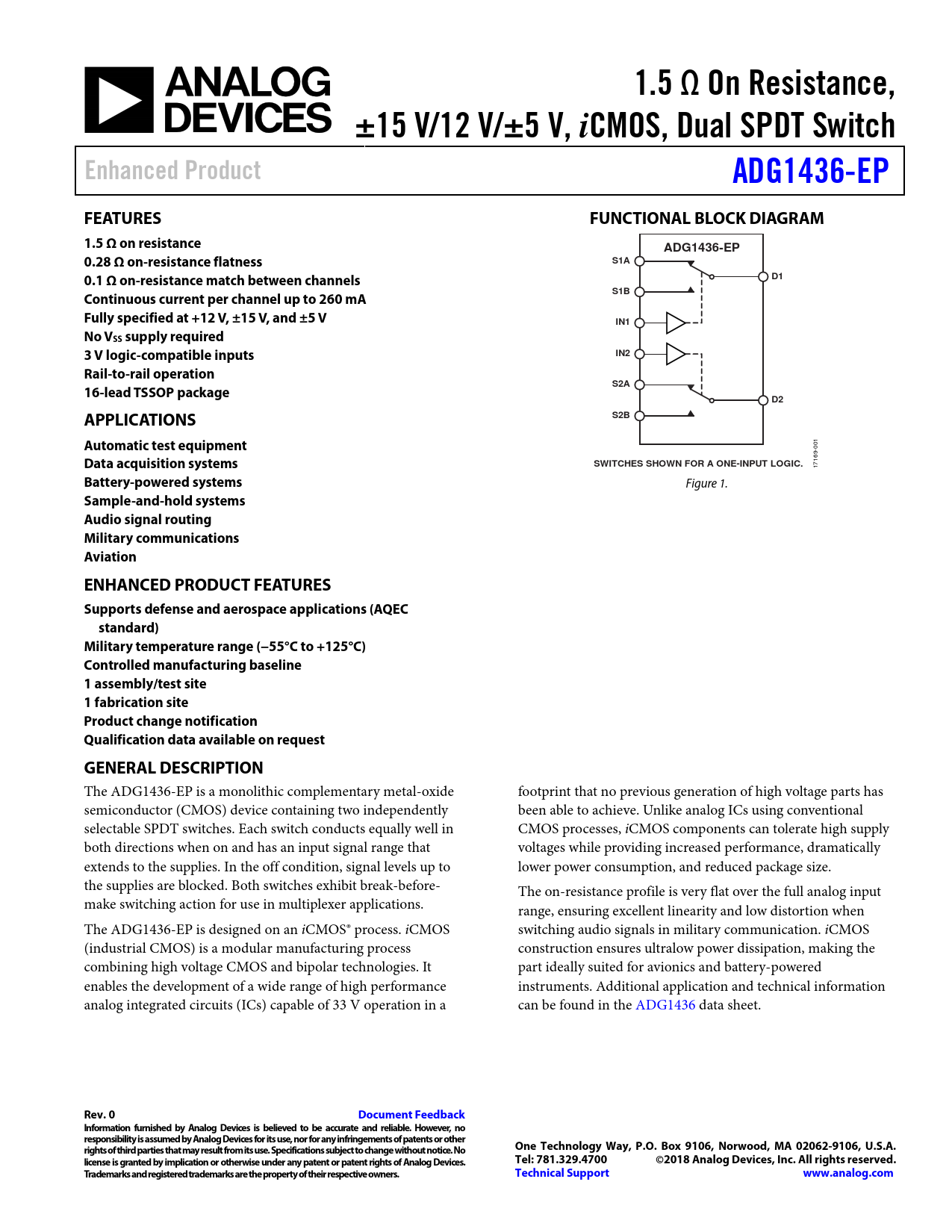

1.5 Ω On Resistance, ±15 V/12 V/±5 V, i CMOS, Dual SPDT Switch Enhanced Product ADG1436-EP FEATURES FUNCTIONAL BLOCK DIAGRAM 1.5 Ω on resistance ADG1436-EP 0.28 Ω on-resistance flatness S1A 0.1 Ω on-resistance match between channels D1 Continuous current per channel up to 260 mA S1B Fully specified at +12 V, ±15 V, and ±5 V IN1 No VSS supply required 3 V logic-compatible inputs IN2 Rail-to-rail operation S2A 16-lead TSSOP package D2 APPLICATIONS S2B Automatic test equipment
001
Data acquisition systems SWITCHES SHOWN FOR A ONE-INPUT LOGIC.
17169-
Battery-powered systems
Figure 1.
Sample-and-hold systems Audio signal routing Military communications Aviation ENHANCED PRODUCT FEATURES Supports defense and aerospace applications (AQEC standard) Military temperature range (−55°C to +125°C) Controlled manufacturing baseline 1 assembly/test site 1 fabrication site Product change notification Qualification data available on request GENERAL DESCRIPTION
The ADG1436-EP is a monolithic complementary metal-oxide footprint that no previous generation of high voltage parts has semiconductor (CMOS) device containing two independently been able to achieve. Unlike analog ICs using conventional selectable SPDT switches. Each switch conducts equally well in CMOS processes, iCMOS components can tolerate high supply both directions when on and has an input signal range that voltages while providing increased performance, dramatical y extends to the supplies. In the off condition, signal levels up to lower power consumption, and reduced package size. the supplies are blocked. Both switches exhibit break-before- The on-resistance profile is very flat over the full analog input make switching action for use in multiplexer applications. range, ensuring excel ent linearity and low distortion when The ADG1436-EP is designed on an iCMOS® process. iCMOS switching audio signals in military communication. iCMOS (industrial CMOS) is a modular manufacturing process construction ensures ultralow power dissipation, making the combining high voltage CMOS and bipolar technologies. It part ideally suited for avionics and battery-powered enables the development of a wide range of high performance instruments. Additional application and technical information analog integrated circuits (ICs) capable of 33 V operation in a can be found in the ADG1436 data sheet.
