Datasheet ADG1233, ADG1234 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Low Capacitance, Triple/Quad SPDT ±15 V/+12 V iCMOS Switches |
| 页数 / 页 | 17 / 4 — ADG1233/ADG1234. Data Sheet. Y Version1. Parameter. +25°C. −40°C to +85°C … |
| 修订版 | D |
| 文件格式/大小 | PDF / 450 Kb |
| 文件语言 | 英语 |
ADG1233/ADG1234. Data Sheet. Y Version1. Parameter. +25°C. −40°C to +85°C −40°C to +125°C Unit. Test Conditions/Comments
该数据表的模型线
文件文字版本

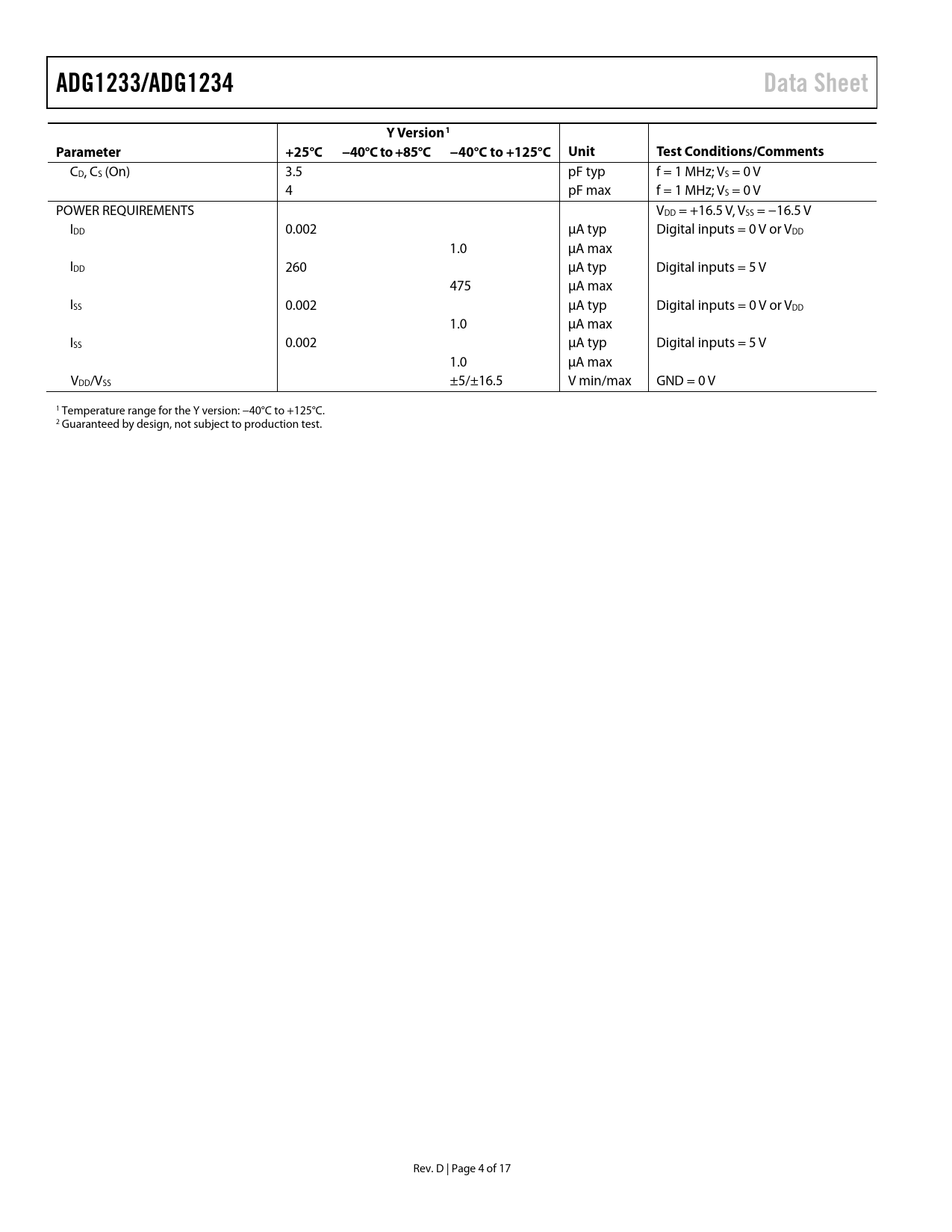

ADG1233/ADG1234 Data Sheet Y Version1 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
CD, CS (On) 3.5 pF typ f = 1 MHz; VS = 0 V 4 pF max f = 1 MHz; VS = 0 V POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.002 µA typ Digital inputs = 0 V or VDD 1.0 µA max IDD 260 µA typ Digital inputs = 5 V 475 µA max ISS 0.002 µA typ Digital inputs = 0 V or VDD 1.0 µA max ISS 0.002 µA typ Digital inputs = 5 V 1.0 µA max VDD/VSS ±5/±16.5 V min/max GND = 0 V 1 Temperature range for the Y version: −40°C to +125°C. 2 Guaranteed by design, not subject to production test. Rev. D | Page 4 of 17 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
