Datasheet ADG1311, ADG1312, ADG1313 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | ±15 V/12 V Quad SPST Switches |
| 页数 / 页 | 12 / 1 — ±15 V/12 V Quad SPST Switches. ADG1311/ADG1312/ADG1313. FEATURES. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 280 Kb |
| 文件语言 | 英语 |

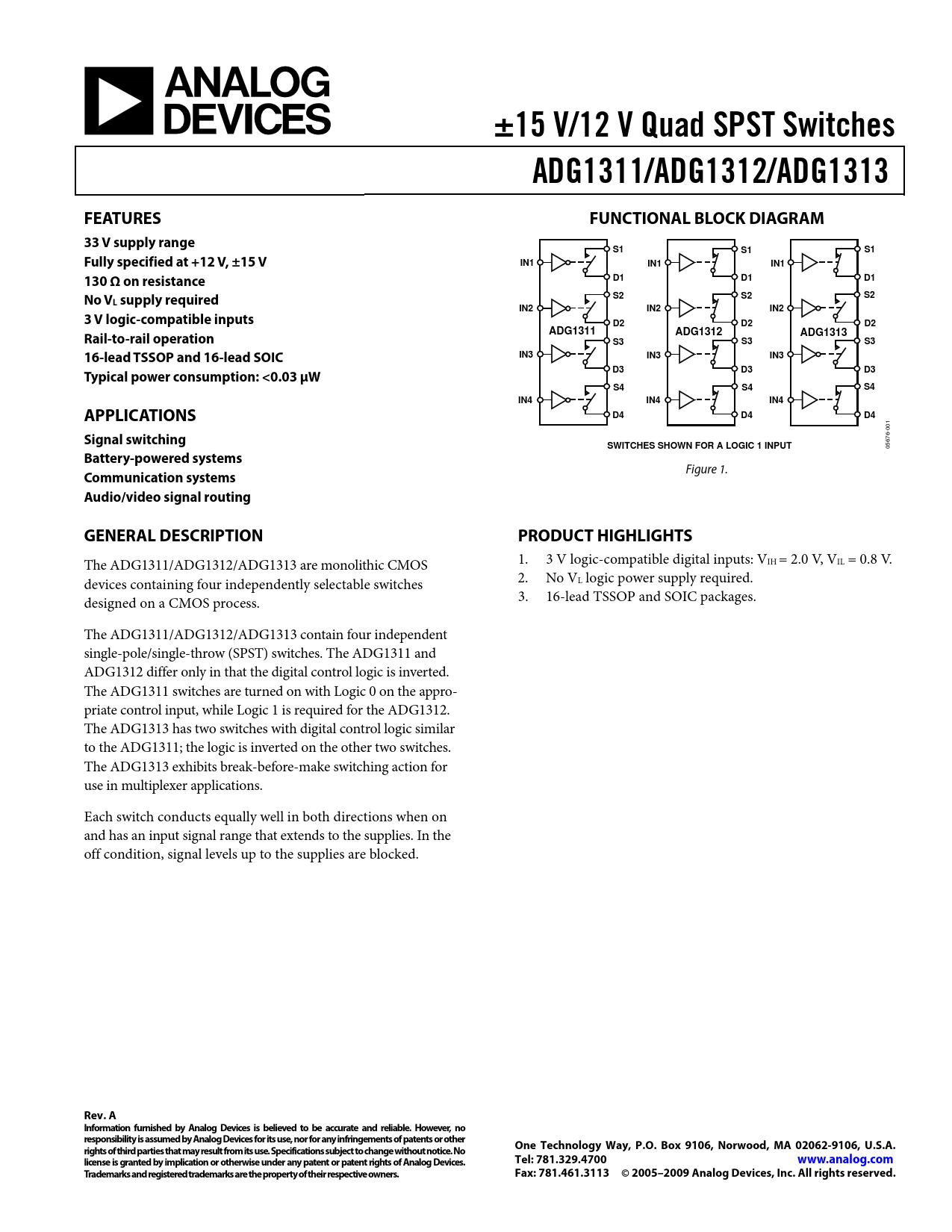

±15 V/12 V Quad SPST Switches. ADG1311/ADG1312/ADG1313. FEATURES. FUNCTIONAL BLOCK DIAGRAM. 33 V supply range
该数据表的模型线
文件文字版本
±15 V/12 V Quad SPST Switches ADG1311/ADG1312/ADG1313 FEATURES FUNCTIONAL BLOCK DIAGRAM 33 V supply range S1 S1 S1 Fully specified at +12 V, ±15 V IN1 IN1 IN1 130 Ω on resistance D1 D1 D1 No V S2 S2 S2 L supply required IN2 IN2 IN2 3 V logic-compatible inputs D2 D2 D2 ADG1311 ADG1312 Rail-to-rail operation ADG1313 S3 S3 S3 16-lead TSSOP and 16-lead SOIC IN3 IN3 IN3 D3 D3 D3 Typical power consumption: <0.03 μW S4 S4 S4 IN4 IN4 IN4 APPLICATIONS D4 D4 D4
001
Signal switching SWITCHES SHOWN FOR A LOGIC 1 INPUT
05676-
Battery-powered systems
Figure 1.
Communication systems Audio/video signal routing GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG1311/ADG1312/ADG1313 are monolithic CMOS 1. 3 V logic-compatible digital inputs: VIH = 2.0 V, VIL = 0.8 V. devices containing four independently selectable switches 2. No VL logic power supply required. designed on a CMOS process. 3. 16-lead TSSOP and SOIC packages. The ADG1311/ADG1312/ADG1313 contain four independent single-pole/single-throw (SPST) switches. The ADG1311 and ADG1312 differ only in that the digital control logic is inverted. The ADG1311 switches are turned on with Logic 0 on the appro- priate control input, while Logic 1 is required for the ADG1312. The ADG1313 has two switches with digital control logic similar to the ADG1311; the logic is inverted on the other two switches. The ADG1313 exhibits break-before-make switching action for use in multiplexer applications. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.
Rev. A Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 © 2005–2009 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
