ADG1211/ADG1212/ADG1213. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. Table 4. ADG1211/. ADG1212 T. ruth Table
该数据表的模型线
文件文字版本

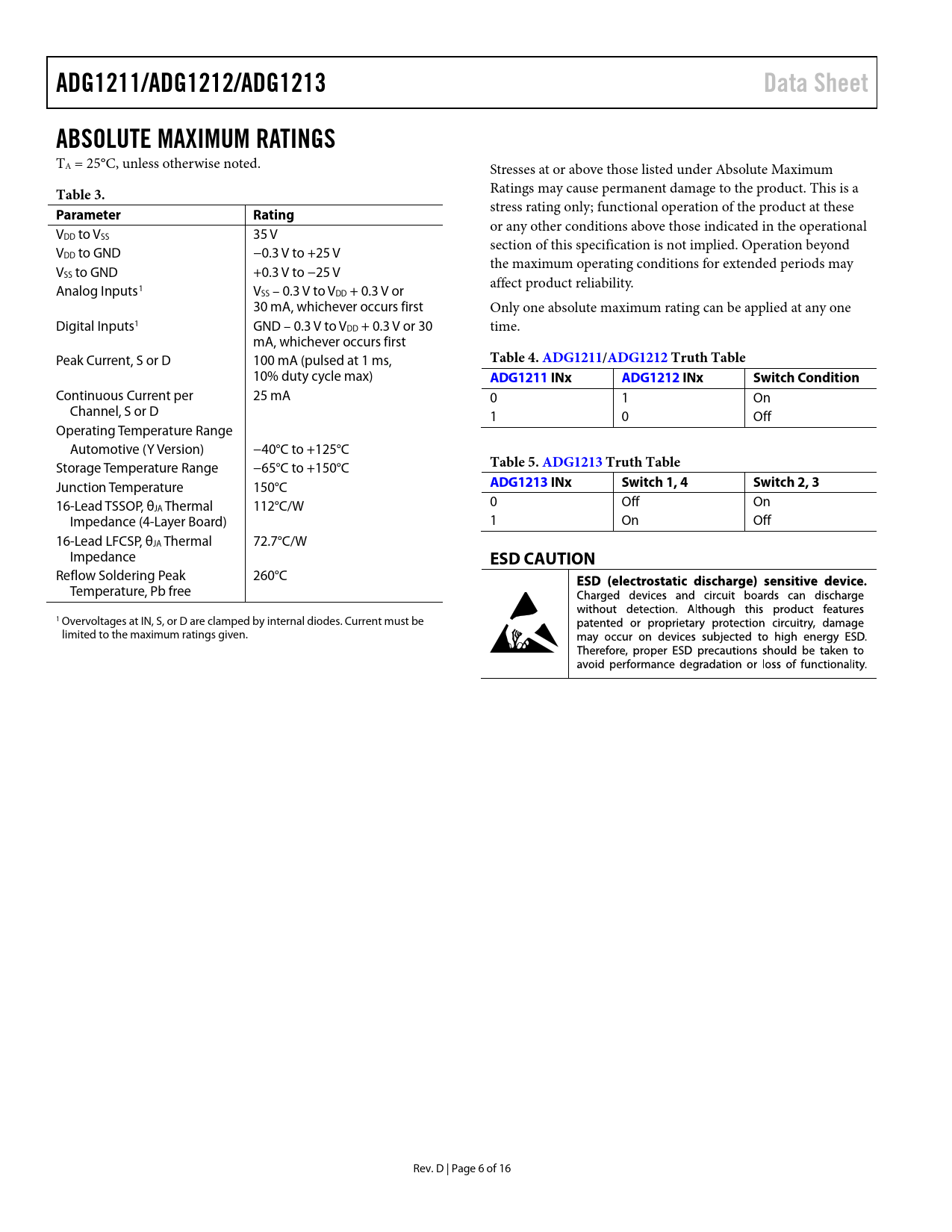

ADG1211/ADG1212/ADG1213 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to VSS 35 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +25 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −25 V affect product reliability. Analog Inputs1 VSS – 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Only one absolute maximum rating can be applied at any one Digital Inputs1 GND – 0.3 V to VDD + 0.3 V or 30 time. mA, whichever occurs first Peak Current, S or D 100 mA (pulsed at 1 ms,
Table 4. ADG1211/ ADG1212 T ruth Table
10% duty cycle max)
ADG1211 IN x ADG1212 IN x Switch Condition
Continuous Current per 25 mA 0 1 On Channel, S or D 1 0 Off Operating Temperature Range Automotive (Y Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C
Table 5. ADG1213 T ruth Table
Junction Temperature 150°C
ADG1213 IN x Switch 1, 4 Switch 2, 3
16-Lead TSSOP, θ 0 Off On JA Thermal 112°C/W Impedance (4-Layer Board) 1 On Off 16-Lead LFCSP, θ JA Thermal 72.7°C/W Impedance
ESD CAUTION
Reflow Soldering Peak 260°C Temperature, Pb free 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current must be limited to the maximum ratings given. Rev. D | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
