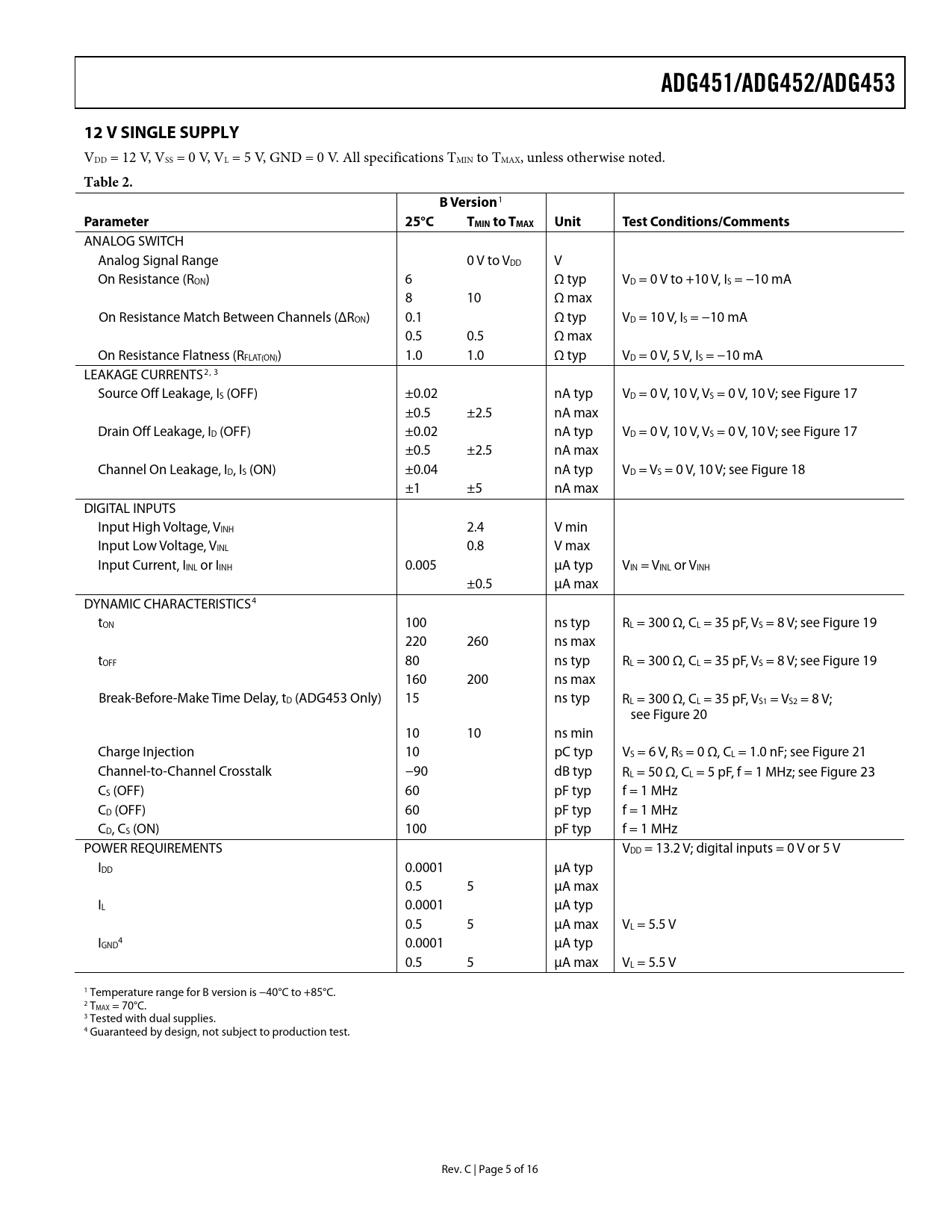

ADG451/ADG452/ADG453 12 V SINGLE SUPPLY
VDD = 12 V, VSS = 0 V, VL = 5 V, GND = 0 V. All specifications TMIN to TMAX, unless otherwise noted.
Table 2. B Version
1
Parameter 25°C TMIN to TMAX Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 6 Ω typ VD = 0 V to +10 V, IS = −10 mA 8 10 Ω max On Resistance Match Between Channels (ΔRON) 0.1 Ω typ VD = 10 V, IS = −10 mA 0.5 0.5 Ω max On Resistance Flatness (RFLAT(ON)) 1.0 1.0 Ω typ VD = 0 V, 5 V, IS = −10 mA LEAKAGE CURRENTS2, 3 Source Off Leakage, IS (OFF) ±0.02 nA typ VD = 0 V, 10 V, VS = 0 V, 10 V; see Figure 17 ±0.5 ±2.5 nA max Drain Off Leakage, ID (OFF) ±0.02 nA typ VD = 0 V, 10 V, VS = 0 V, 10 V; see Figure 17 ±0.5 ±2.5 nA max Channel On Leakage, ID, IS (ON) ±0.04 nA typ VD = VS = 0 V, 10 V; see Figure 18 ±1 ±5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.5 μA max DYNAMIC CHARACTERISTICS4 tON 100 ns typ RL = 300 Ω, CL = 35 pF, VS = 8 V; see Figure 19 220 260 ns max tOFF 80 ns typ RL = 300 Ω, CL = 35 pF, VS = 8 V; see Figure 19 160 200 ns max Break-Before-Make Time Delay, tD (ADG453 Only) 15 ns typ RL = 300 Ω, CL = 35 pF, VS1 = VS2 = 8 V; see Figure 20 10 10 ns min Charge Injection 10 pC typ VS = 6 V, RS = 0 Ω, CL = 1.0 nF; see Figure 21 Channel-to-Channel Crosstalk −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 23 CS (OFF) 60 pF typ f = 1 MHz CD (OFF) 60 pF typ f = 1 MHz CD, CS (ON) 100 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V; digital inputs = 0 V or 5 V IDD 0.0001 μA typ 0.5 5 μA max IL 0.0001 μA typ 0.5 5 μA max VL = 5.5 V I 4 GND 0.0001 μA typ 0.5 5 μA max VL = 5.5 V 1 Temperature range for B version is −40°C to +85°C. 2 TMAX = 70°C. 3 Tested with dual supplies. 4 Guaranteed by design, not subject to production test. Rev. C | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY PRODUCT HIGHLIGHTS SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
