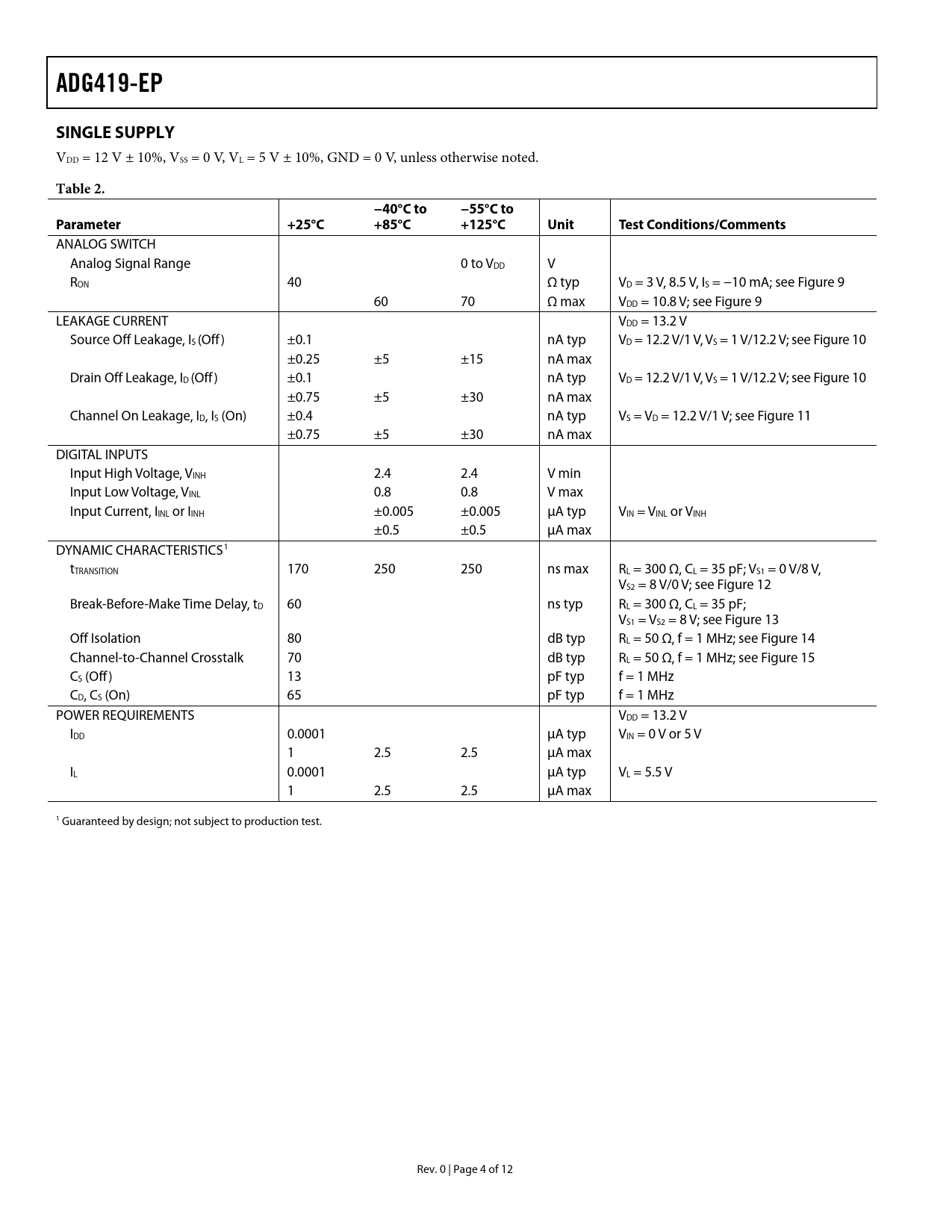

ADG419-EP SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, VL = 5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −55°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V RON 40 Ω typ VD = 3 V, 8.5 V, IS = −10 mA; see Figure 9 60 70 Ω max VDD = 10.8 V; see Figure 9 LEAKAGE CURRENT VDD = 13.2 V Source Off Leakage, IS (Off ) ±0.1 nA typ VD = 12.2 V/1 V, VS = 1 V/12.2 V; see Figure 10 ±0.25 ±5 ±15 nA max Drain Off Leakage, ID (Off ) ±0.1 nA typ VD = 12.2 V/1 V, VS = 1 V/12.2 V; see Figure 10 ±0.75 ±5 ±30 nA max Channel On Leakage, ID, IS (On) ±0.4 nA typ VS = VD = 12.2 V/1 V; see Figure 11 ±0.75 ±5 ±30 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 2.4 V min Input Low Voltage, VINL 0.8 0.8 V max Input Current, IINL or IINH ±0.005 ±0.005 μA typ VIN = VINL or VINH ±0.5 ±0.5 μA max DYNAMIC CHARACTERISTICS1 tTRANSITION 170 250 250 ns max RL = 300 Ω, CL = 35 pF; VS1 = 0 V/8 V, VS2 = 8 V/0 V; see Figure 12 Break-Before-Make Time Delay, tD 60 ns typ RL = 300 Ω, CL = 35 pF; VS1 = VS2 = 8 V; see Figure 13 Off Isolation 80 dB typ RL = 50 Ω, f = 1 MHz; see Figure 14 Channel-to-Channel Crosstalk 70 dB typ RL = 50 Ω, f = 1 MHz; see Figure 15 CS (Off ) 13 pF typ f = 1 MHz CD, CS (On) 65 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD 0.0001 μA typ VIN = 0 V or 5 V 1 2.5 2.5 μA max IL 0.0001 μA typ VL = 5.5 V 1 2.5 2.5 μA max 1 Guaranteed by design; not subject to production test. Rev. 0 | Page 4 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
