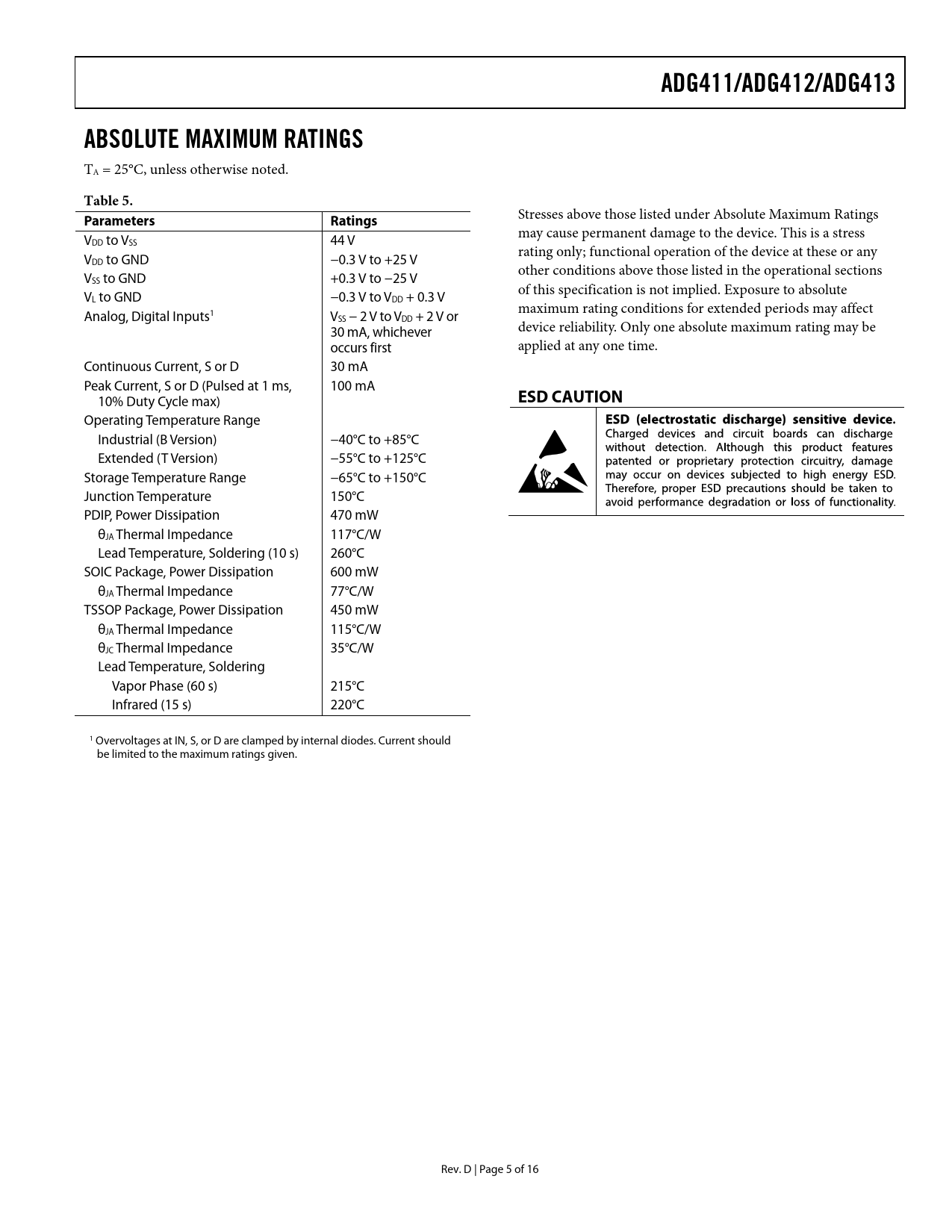

link to page 5 ADG411/ADG412/ADG413ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise noted. Table 5. Stresses above those listed under Absolute Maximum Ratings Parameters Ratings may cause permanent damage to the device. This is a stress VDD to VSS 44 V rating only; functional operation of the device at these or any VDD to GND −0.3 V to +25 V other conditions above those listed in the operational sections VSS to GND +0.3 V to −25 V of this specification is not implied. Exposure to absolute VL to GND −0.3 V to VDD + 0.3 V maximum rating conditions for extended periods may affect Analog, Digital Inputs1 VSS − 2 V to VDD + 2 V or 30 mA, whichever device reliability. Only one absolute maximum rating may be occurs first applied at any one time. Continuous Current, S or D 30 mA Peak Current, S or D (Pulsed at 1 ms, 100 mA 10% Duty Cycle max) ESD CAUTION Operating Temperature Range Industrial (B Version) −40°C to +85°C Extended (T Version) −55°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C PDIP, Power Dissipation 470 mW θ JA Thermal Impedance 117°C/W Lead Temperature, Soldering (10 s) 260°C SOIC Package, Power Dissipation 600 mW θJA Thermal Impedance 77°C/W TSSOP Package, Power Dissipation 450 mW θJA Thermal Impedance 115°C/W θJC Thermal Impedance 35°C/W Lead Temperature, Soldering Vapor Phase (60 s) 215°C Infrared (15 s) 220°C 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. D | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAMS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
