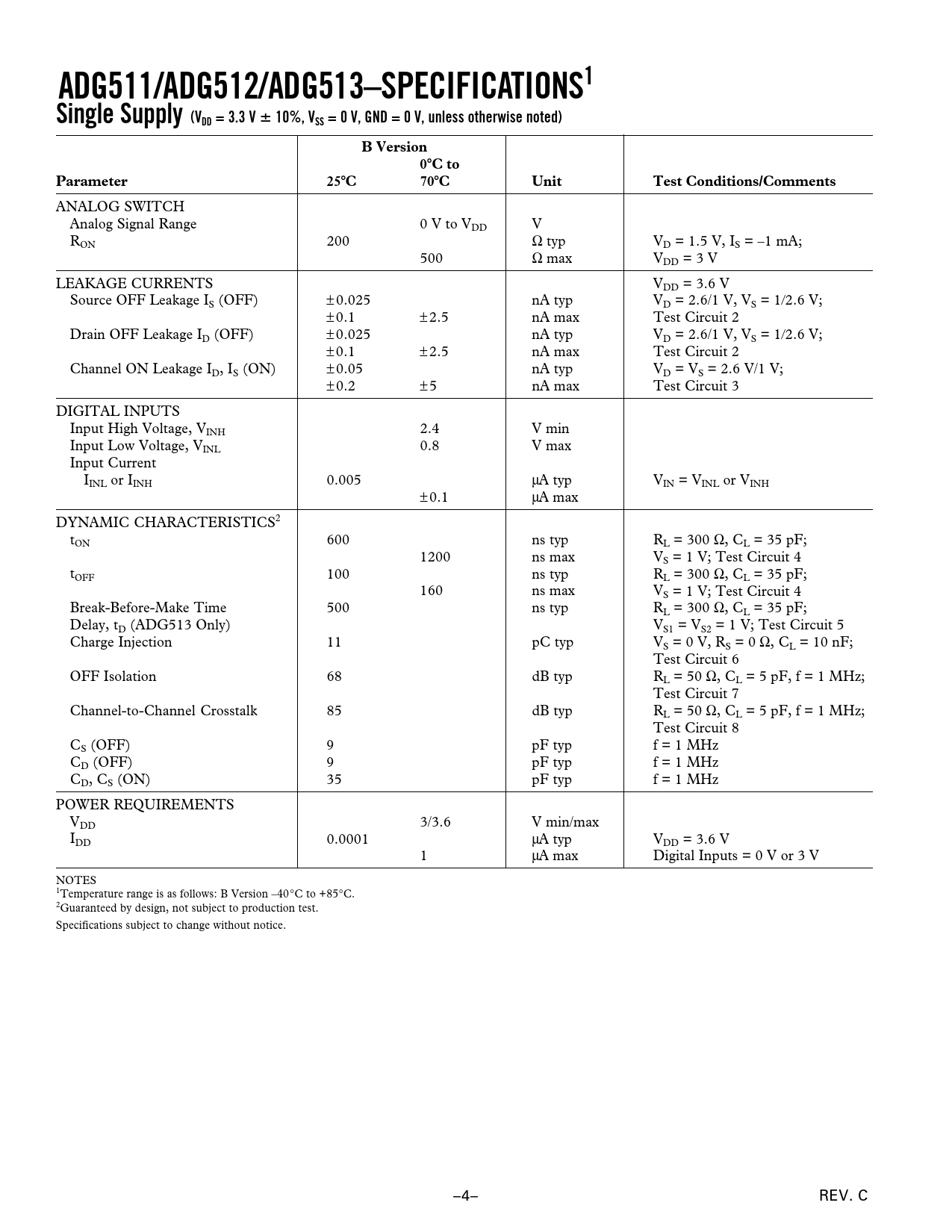

ADG511/ADG512/ADG513–SPECIFICATIONS1 Single Supply (VDD = 3.3 V 10%, VSS = 0 V, GND = 0 V, unless otherwise noted) B Version 0 C to Parameter 25 C 70 C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V RON 200 Ω typ VD = 1.5 V, IS = –1 mA; 500 Ω max VDD = 3 V LEAKAGE CURRENTS VDD = 3.6 V Source OFF Leakage IS (OFF) ±0.025 nA typ VD = 2.6/1 V, VS = 1Ⲑ2.6 V; ±0.1 ±2.5 nA max Test Circuit 2 Drain OFF Leakage ID (OFF) ±0.025 nA typ VD = 2.6/1 V, VS = 1Ⲑ2.6 V; ±0.1 ±2.5 nA max Test Circuit 2 Channel ON Leakage ID, IS (ON) ±0.05 nA typ VD = VS = 2.6 V/1 V; ±0.2 ±5 nA max Test Circuit 3 DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH 0.005 µA typ VIN = VINL or VINH ±0.1 µA max DYNAMIC CHARACTERISTICS2 tON 600 ns typ RL = 300 Ω, CL = 35 pF; 1200 ns max VS = 1 V; Test Circuit 4 tOFF 100 ns typ RL = 300 Ω, CL = 35 pF; 160 ns max VS = 1 V; Test Circuit 4 Break-Before-Make Time 500 ns typ RL = 300 Ω, CL = 35 pF; Delay, tD (ADG513 Only) VS1 = VS2 = 1 V; Test Circuit 5 Charge Injection 11 pC typ VS = 0 V, RS = 0 Ω, CL = 10 nF; Test Circuit 6 OFF Isolation 68 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Test Circuit 7 Channel-to-Channel Crosstalk 85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Test Circuit 8 CS (OFF) 9 pF typ f = 1 MHz CD (OFF) 9 pF typ f = 1 MHz CD, CS (ON) 35 pF typ f = 1 MHz POWER REQUIREMENTS VDD 3/3.6 V min/max IDD 0.0001 µA typ VDD = 3.6 V 1 µA max Digital Inputs = 0 V or 3 V NOTES 1Temperature range is as follows: B Version –40°C to +85°C. 2Guaranteed by design, not subject to production test. Specifications subject to change without notice. –4– REV. C
